Exterior Lights PE82.10-U-2000F
Exterior Lights PE82.10-U-2000F
- with CODE (612b) Xenon headlamp unit

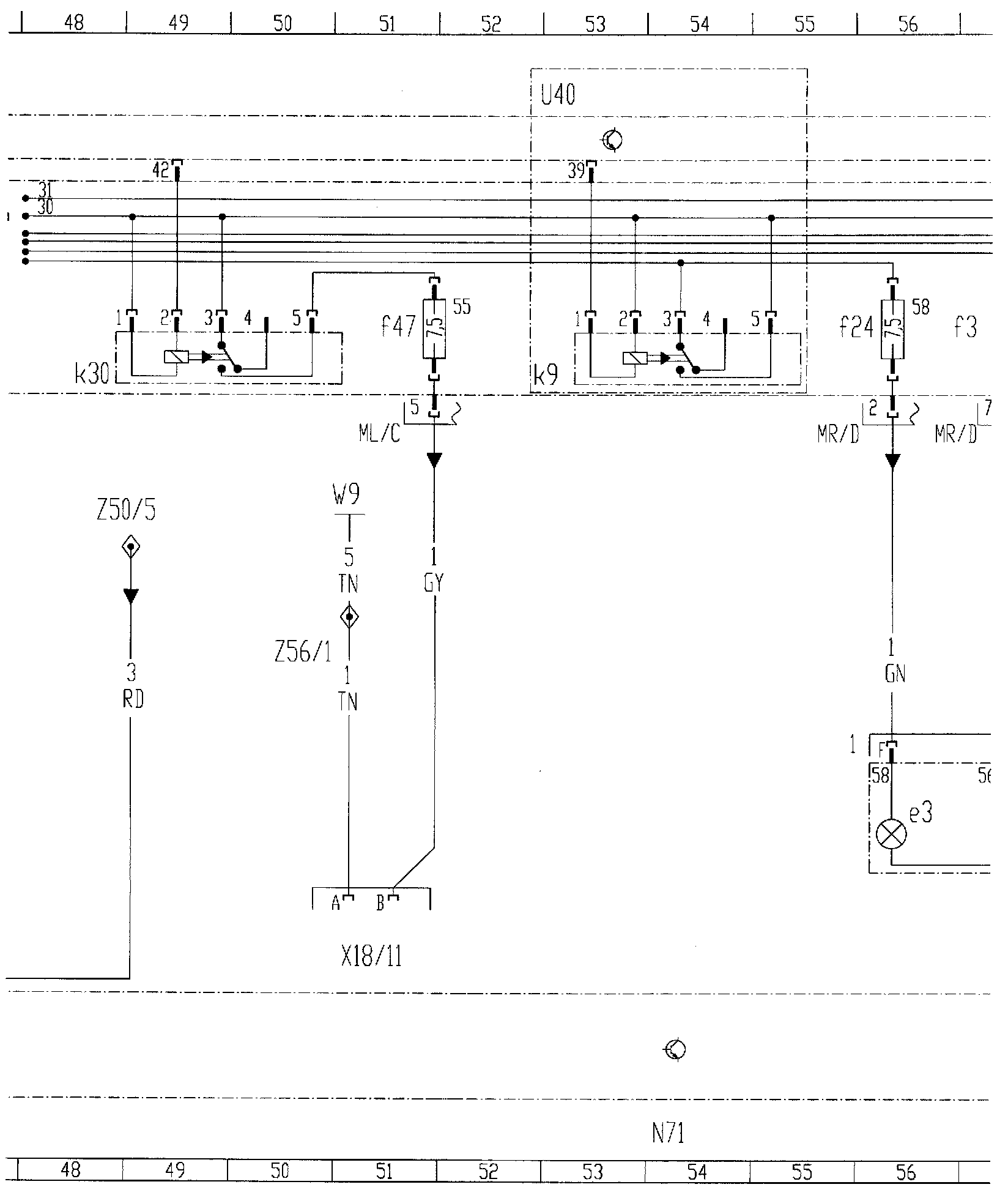

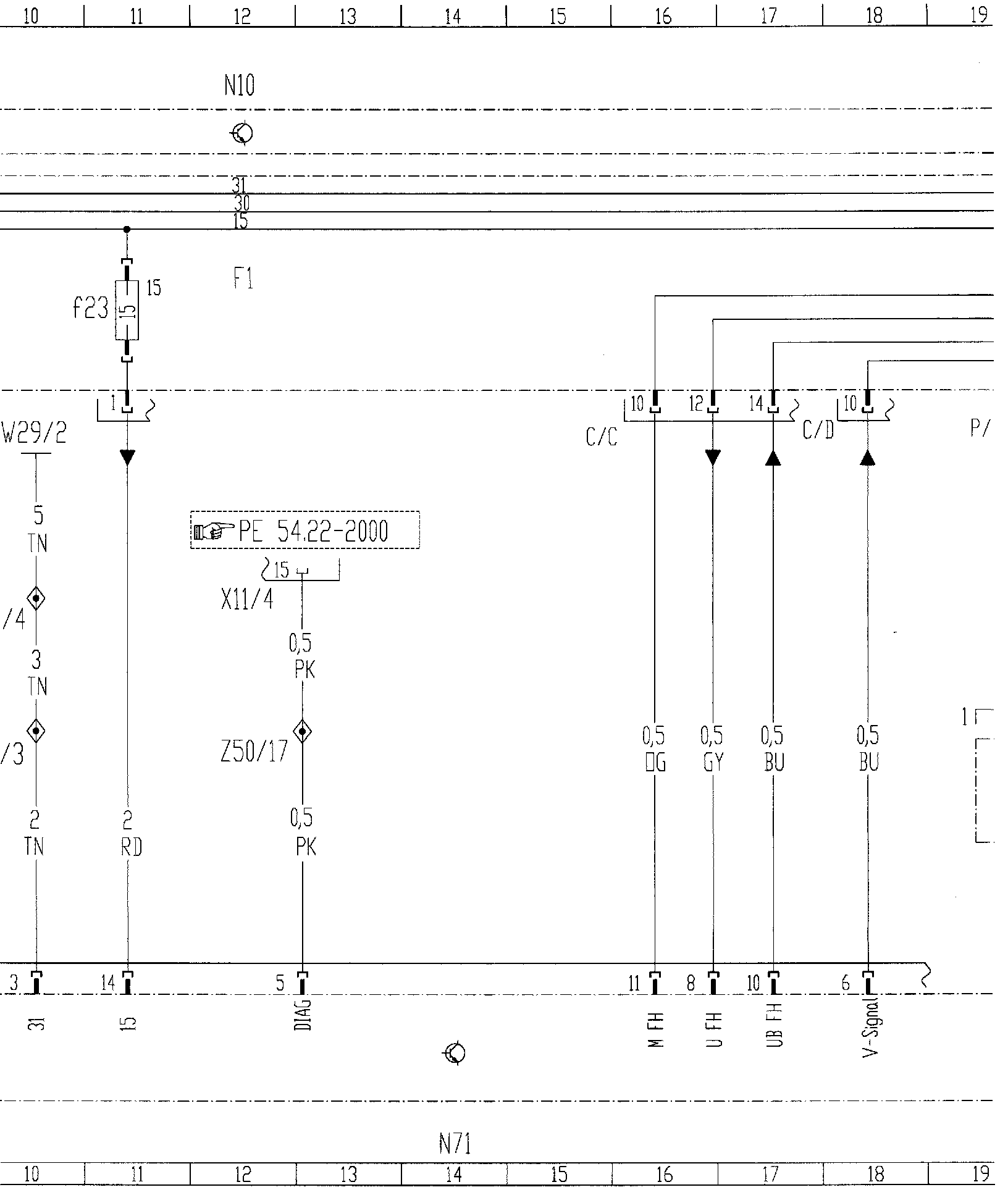

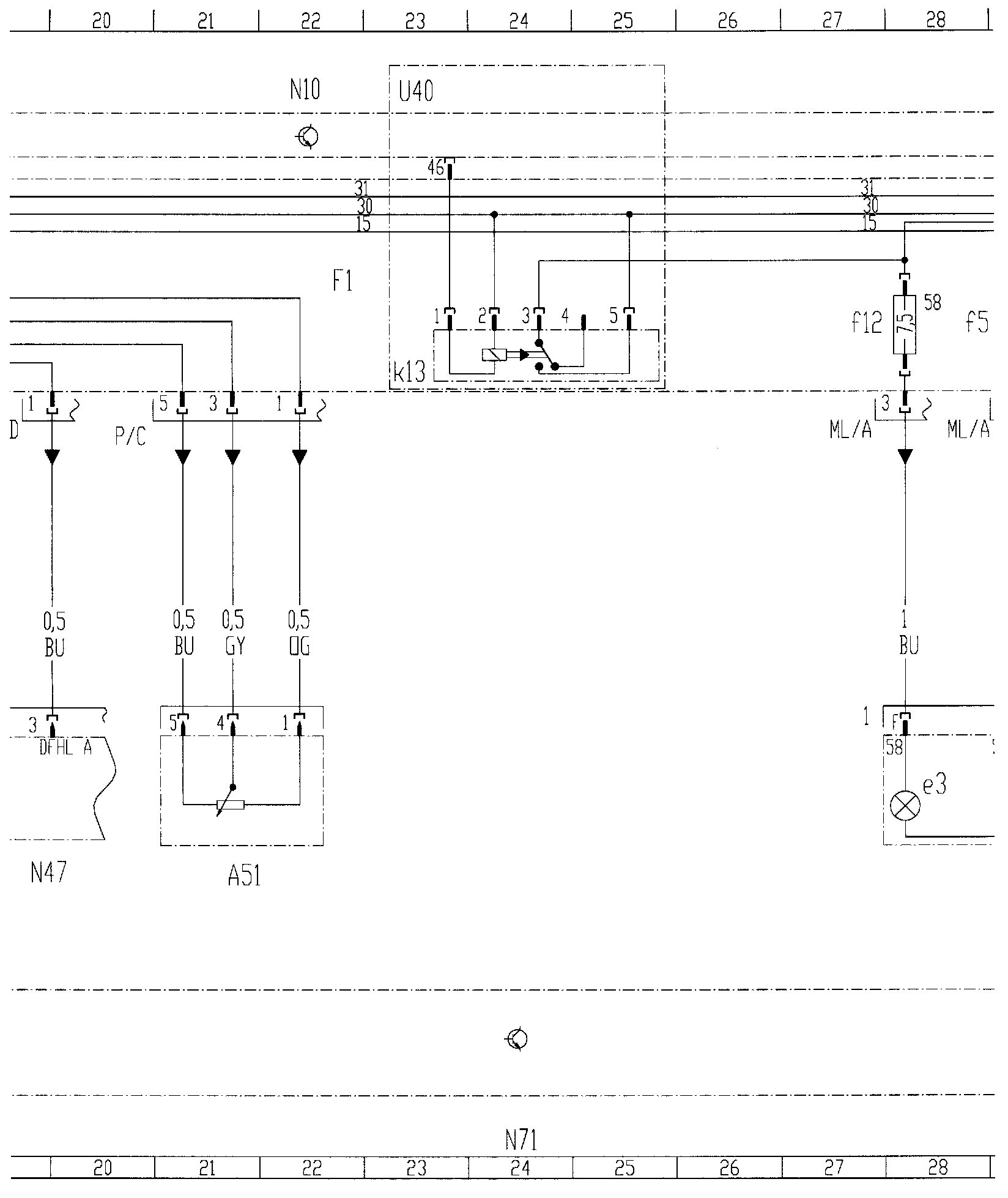

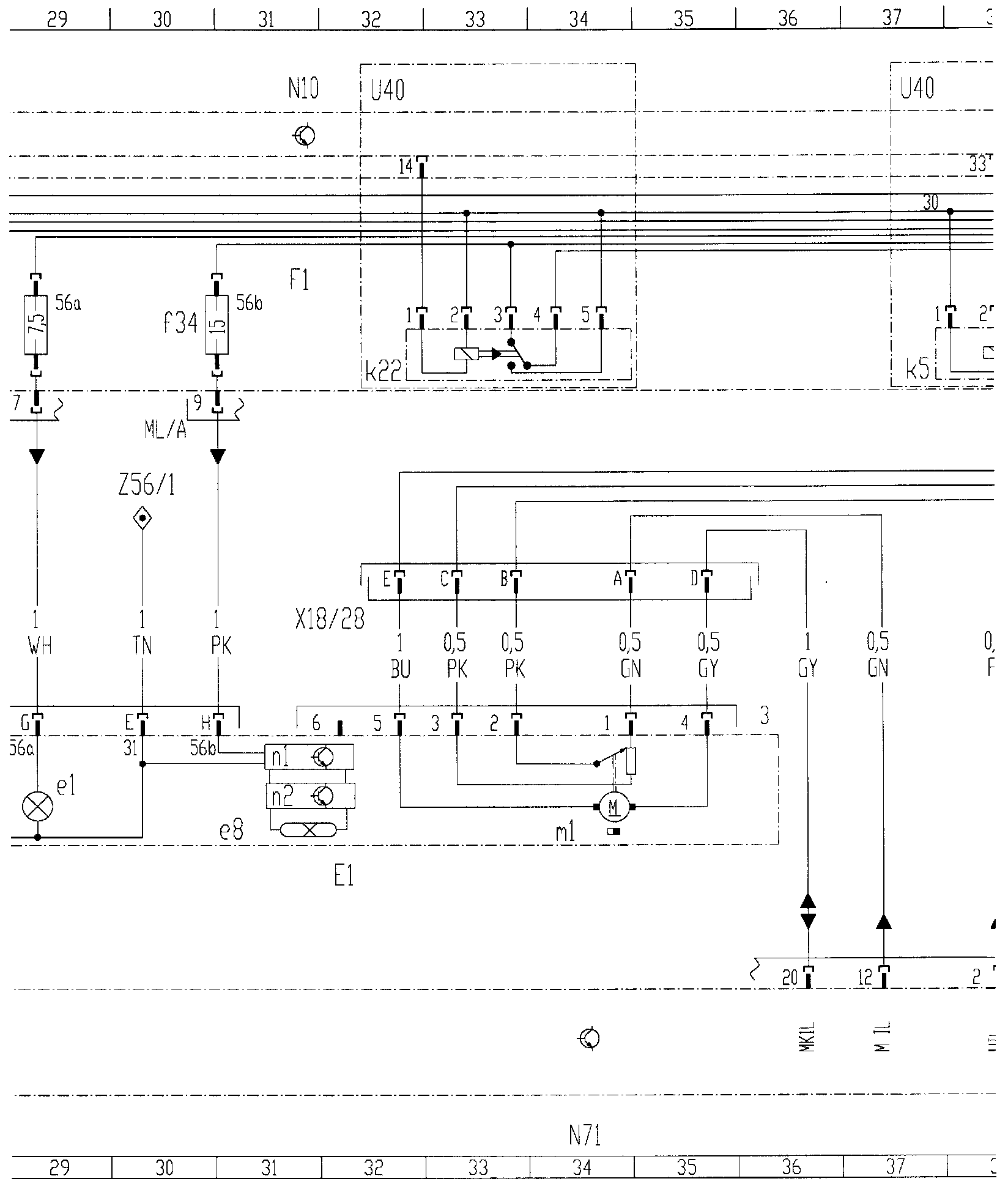

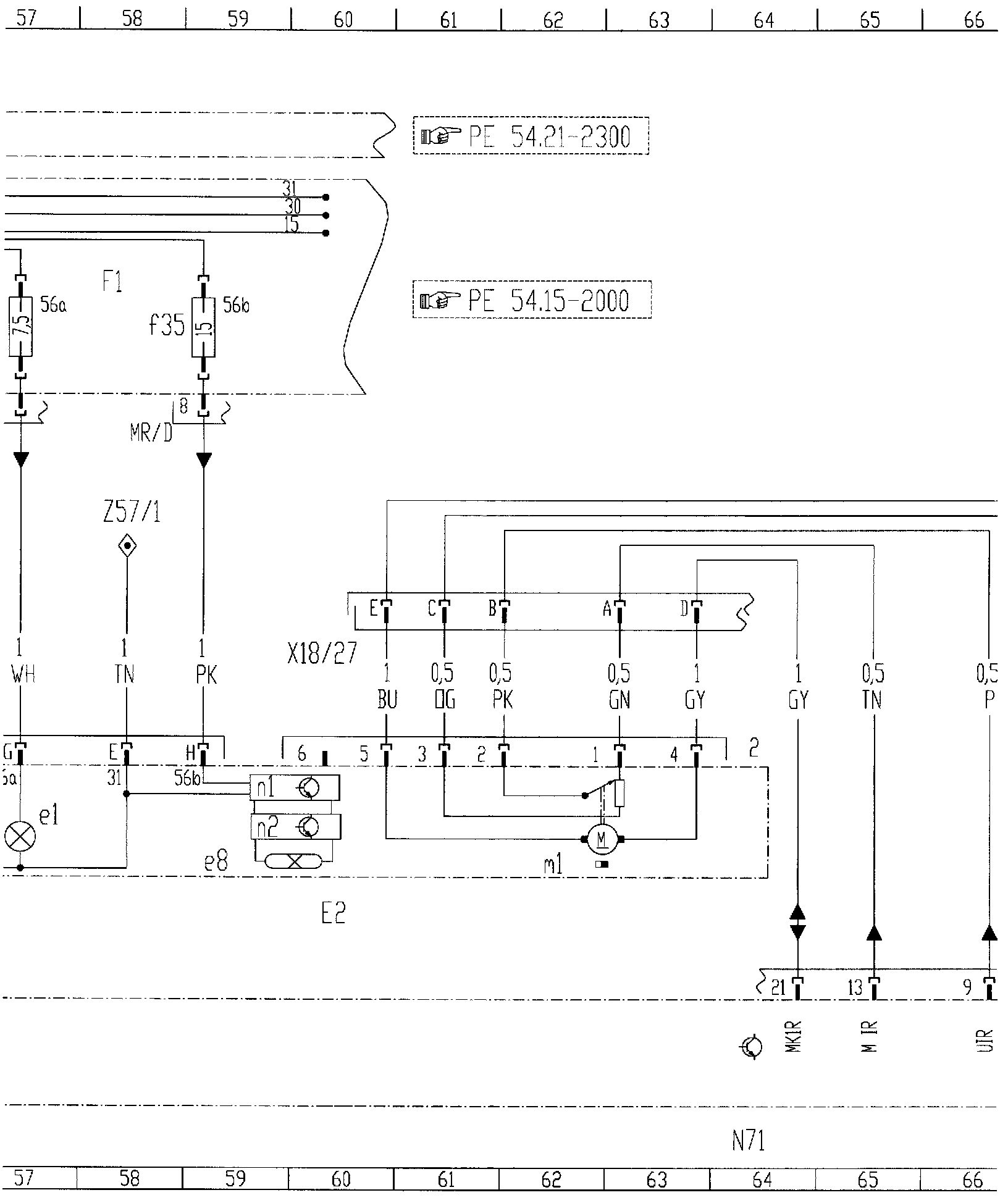

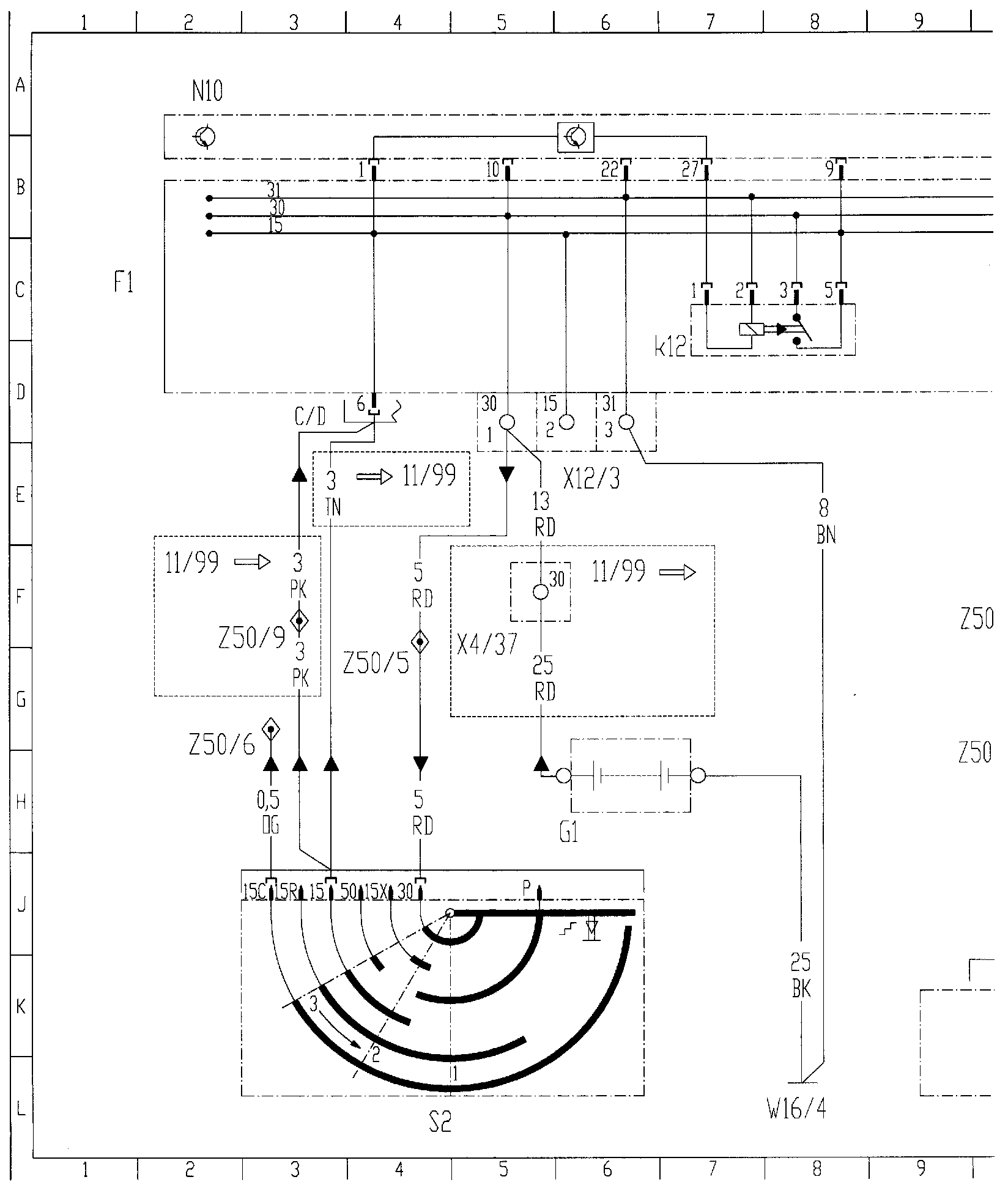

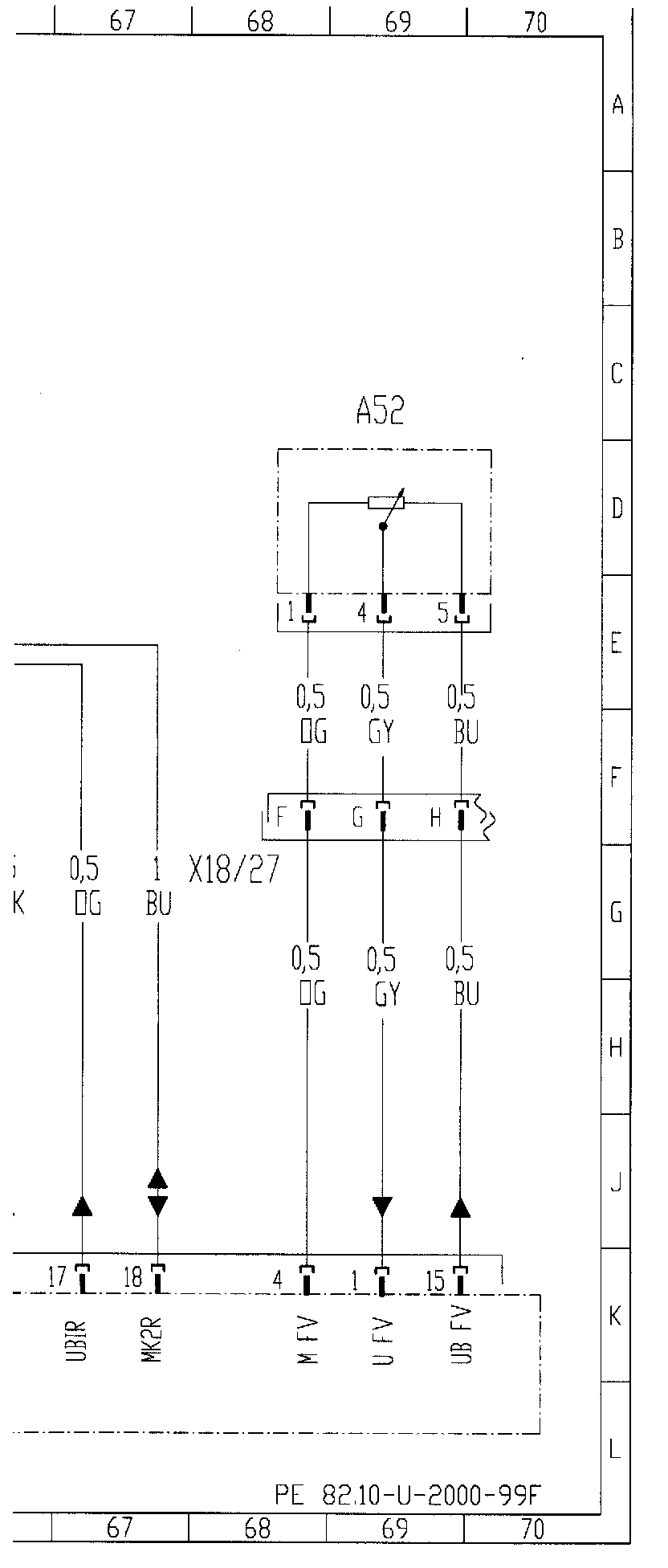

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:
Diagram, Part 5:
Diagram, Part 6:
Diagram, Part 7:
Diagram, Part 8:
Component Description/Coordinates, A51 - S4:

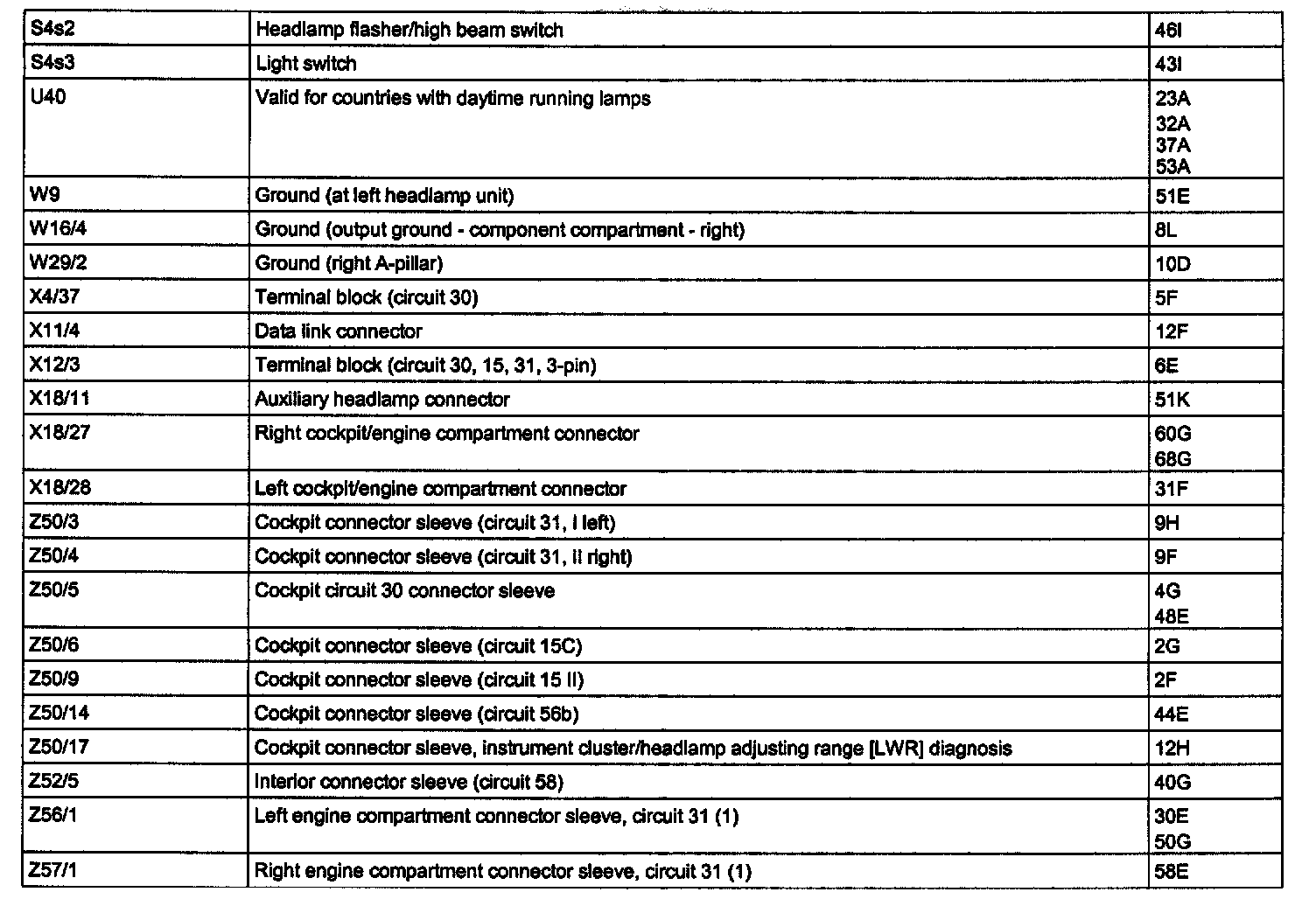

Component Description/Coordinates, S4s2 - Z57/1:
