Exterior Lights PE82.10-U-2000J (Up to 11/99)

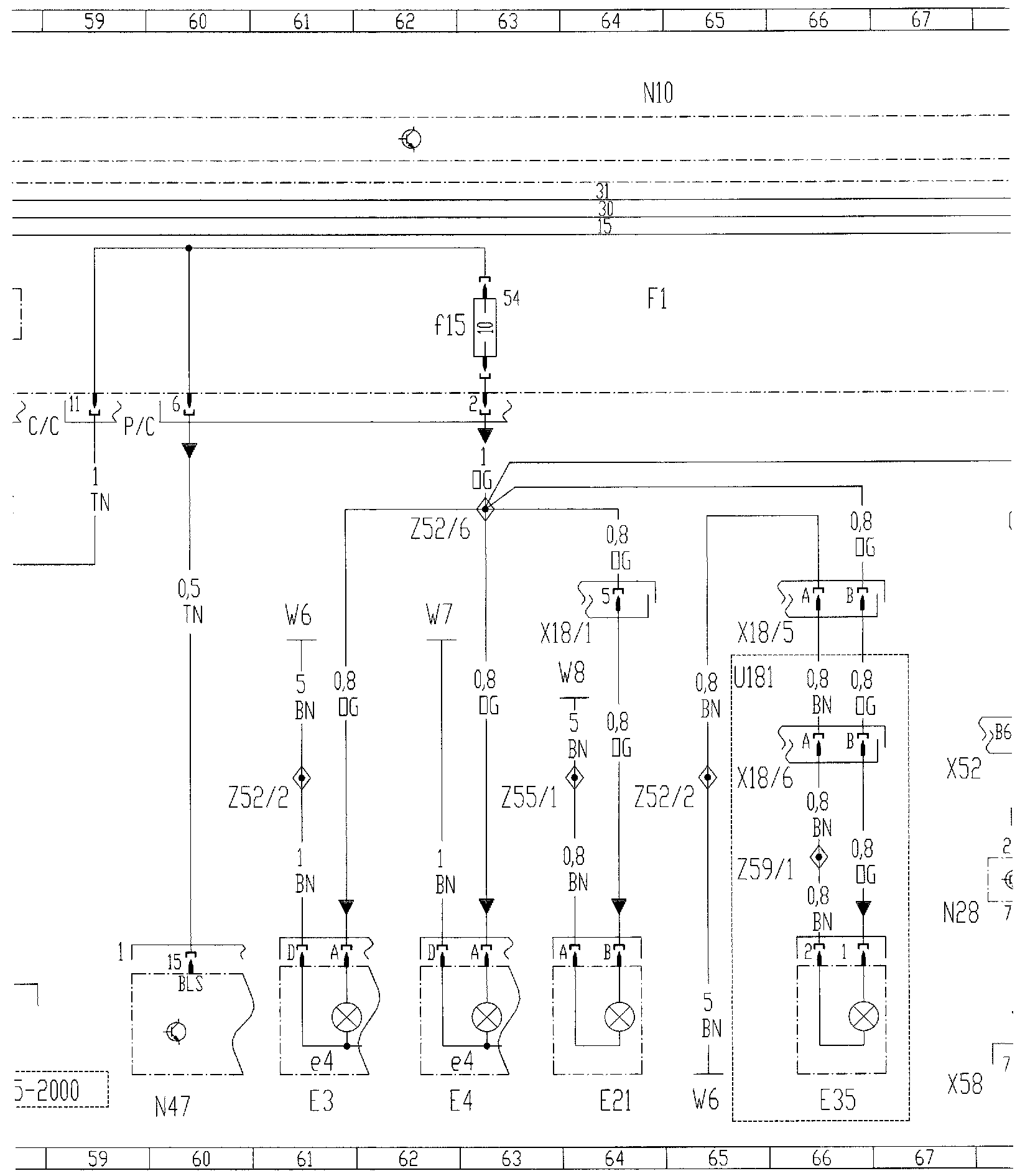

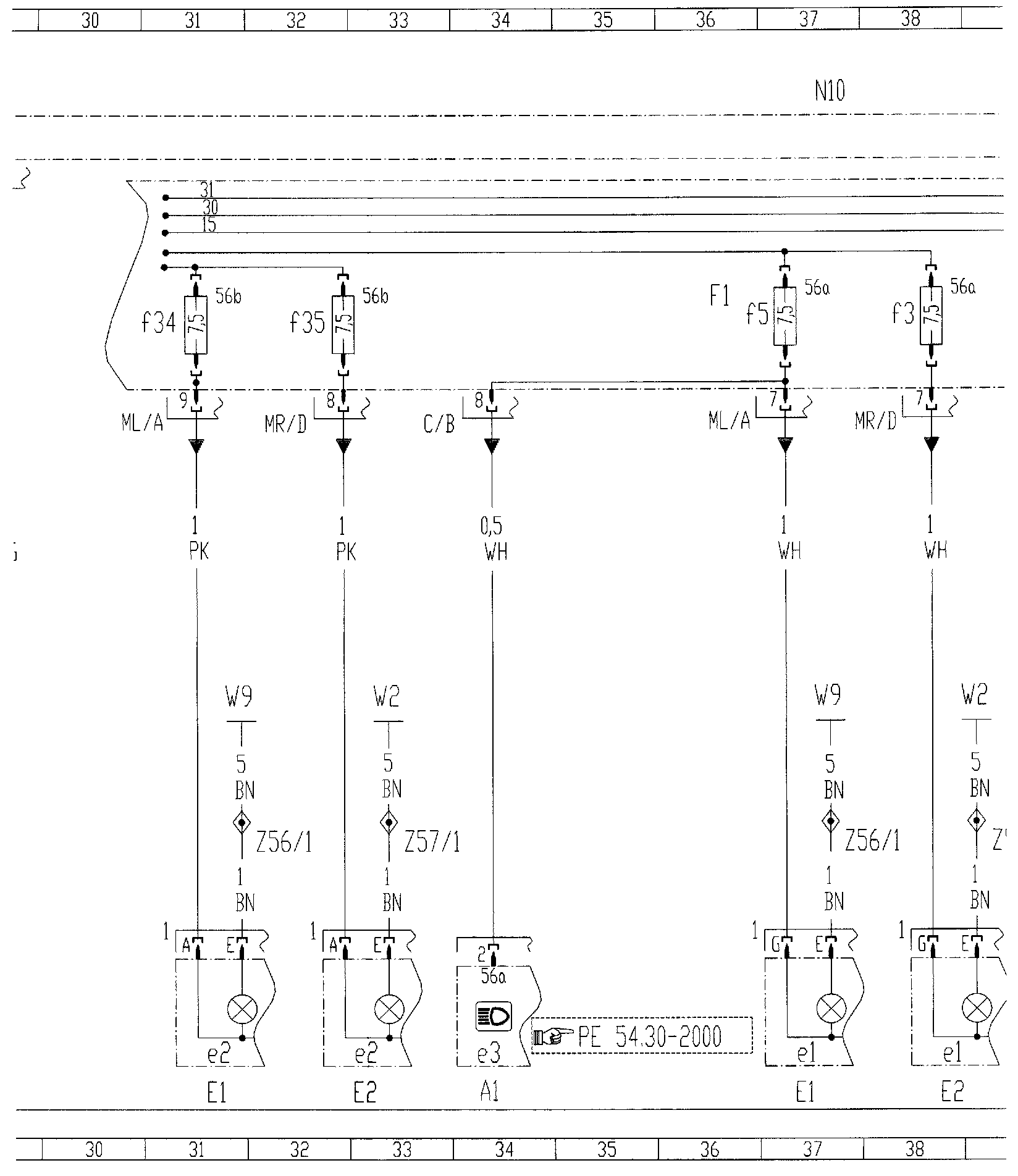

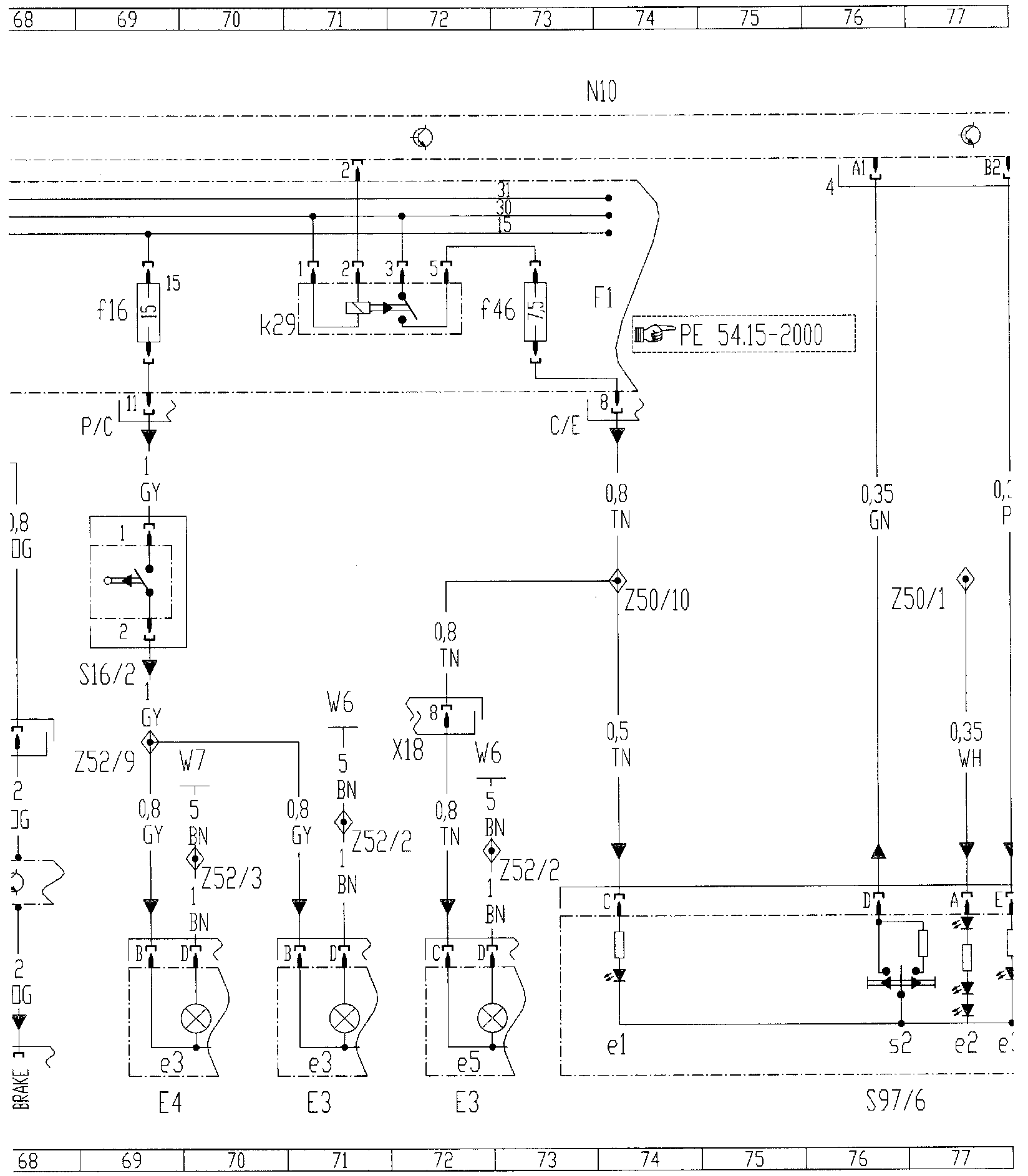

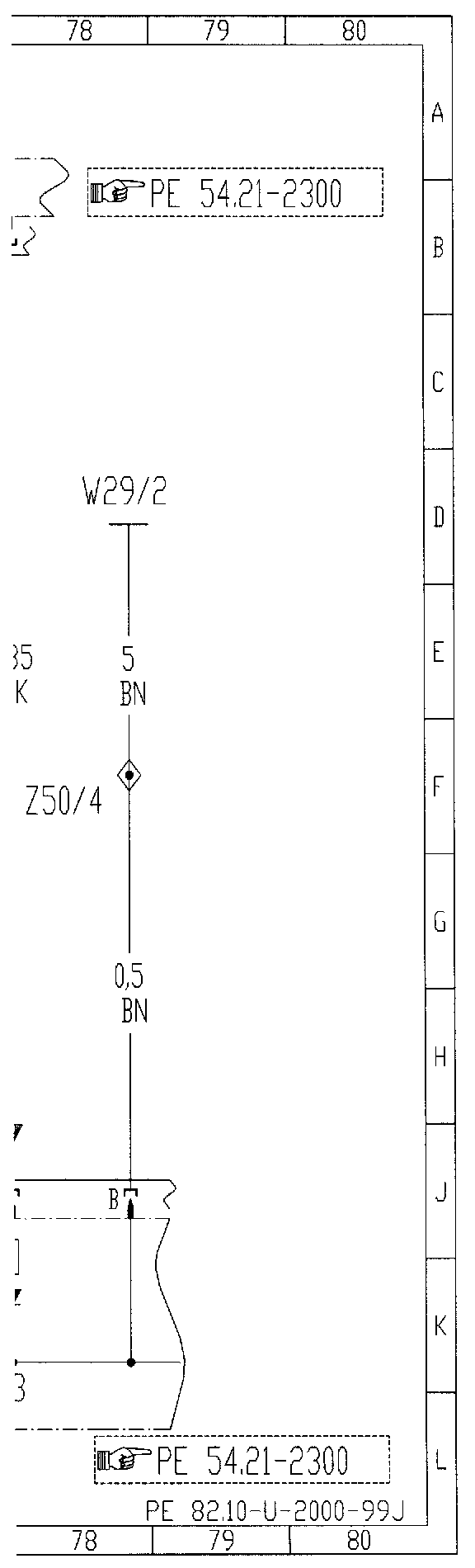

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

N:aZDiagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

Component Description/Coordinates, A1 - F1f24:

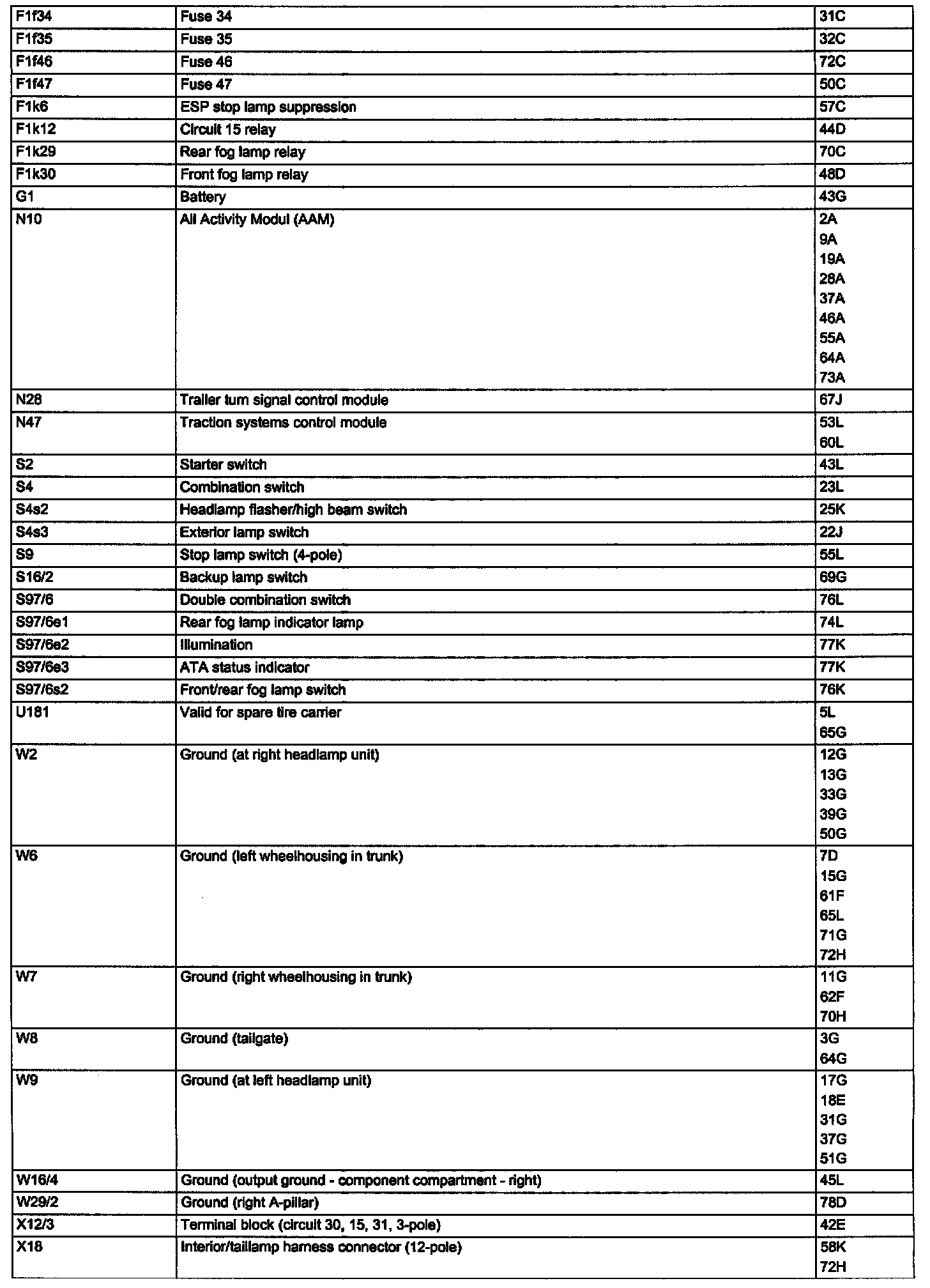

Component Description/Coordinates, F1f34 - X18:

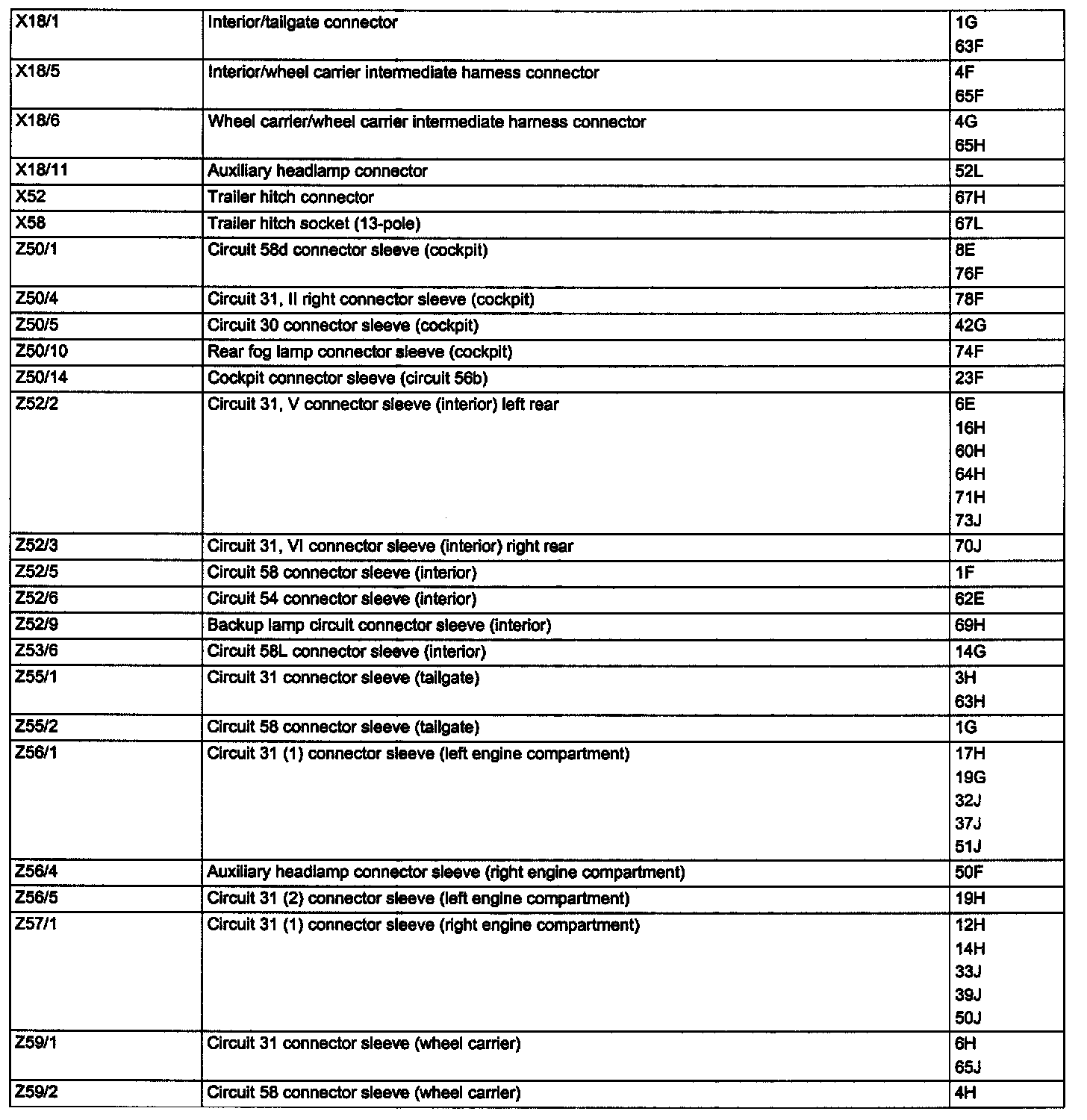

Component Description/Coordinates, X18/1 - Z59/2:
