Fanfare Signal System (FAN) PE54.35-U-2000F
Fanfare Signal System (FAN) PE54.35-U-2000F
Fanfare Signal System (FAN) PE54.35-U-2000F
Diagram, Part 1:

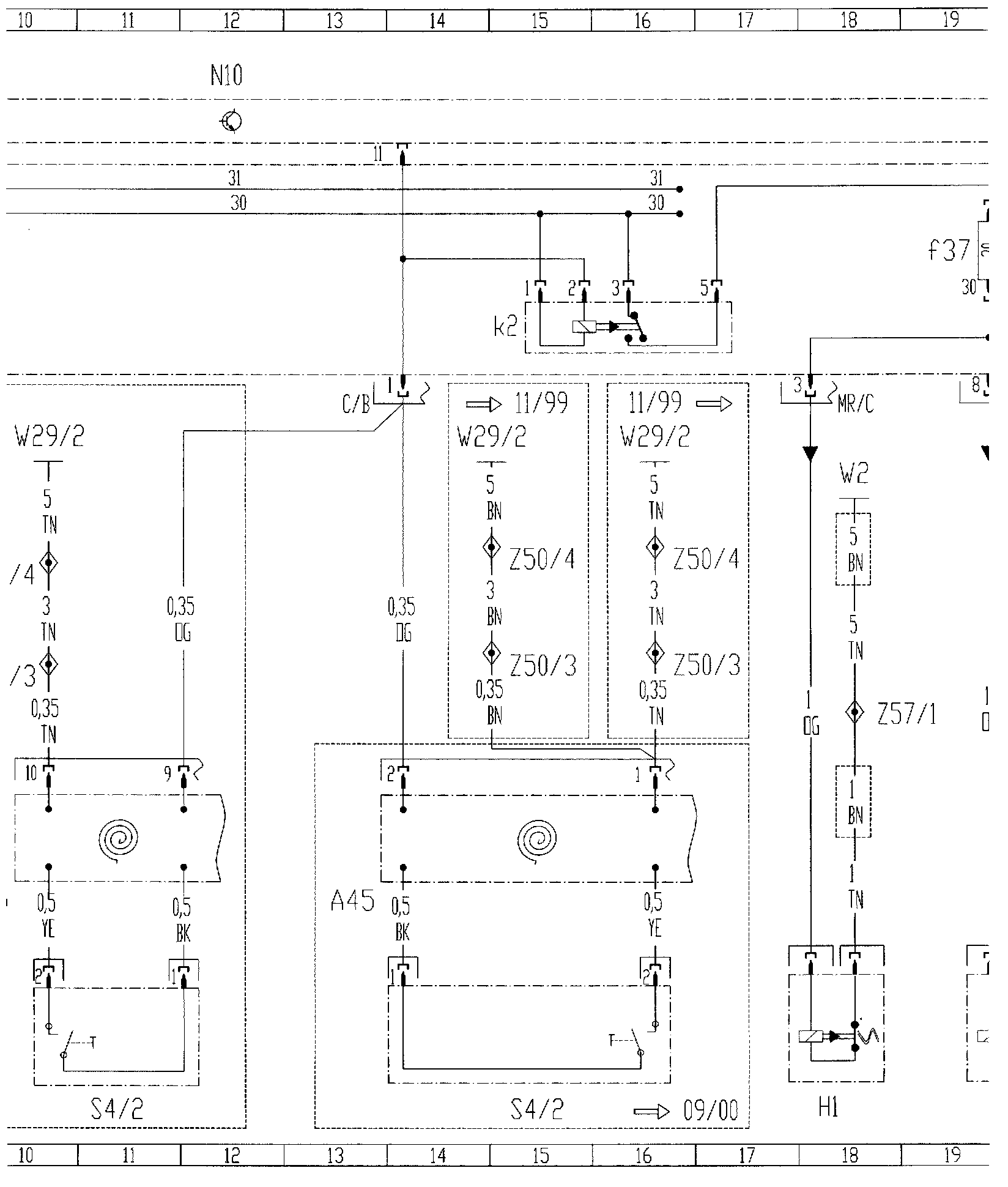

Diagram, Part 2:

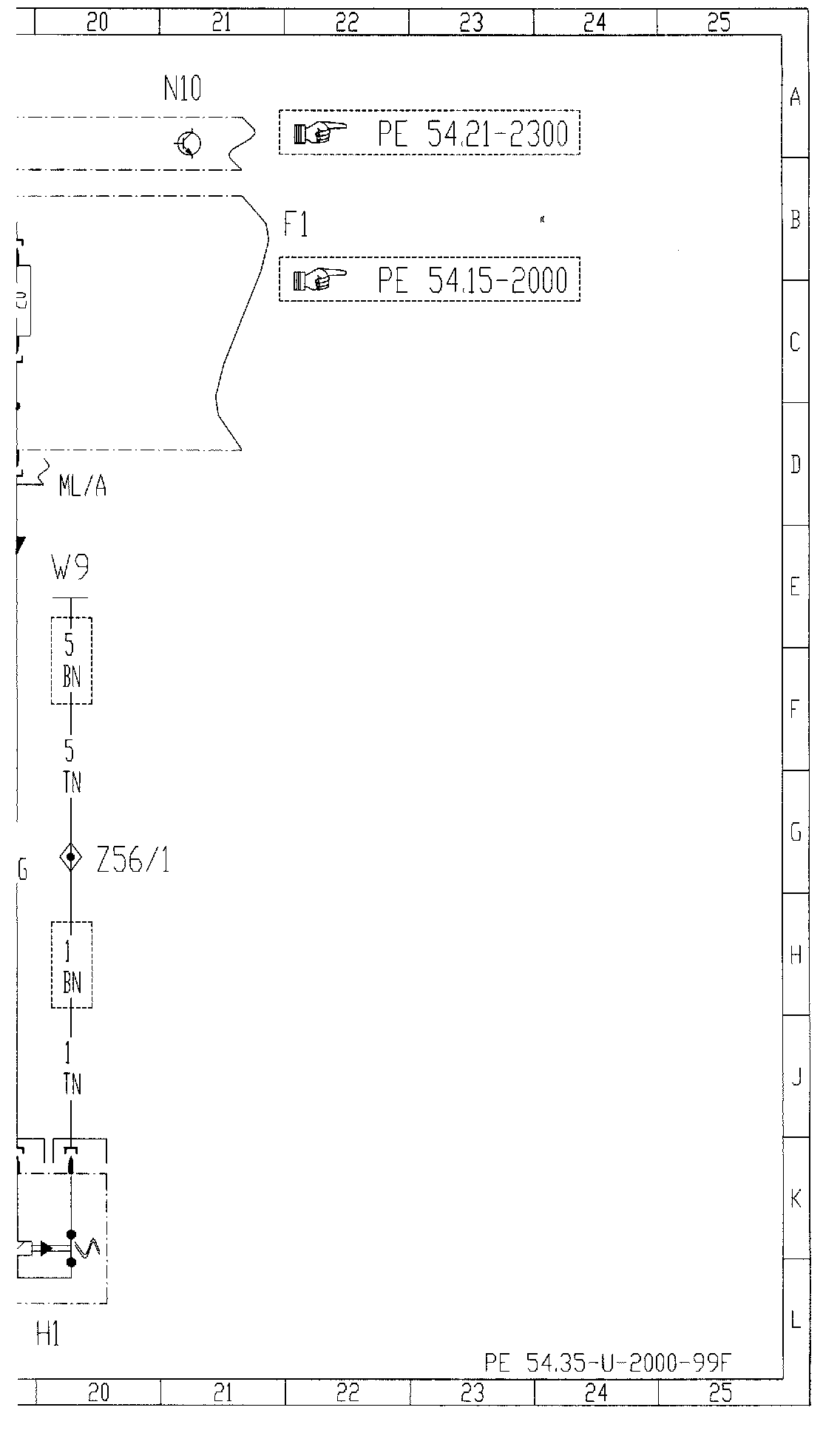

Diagram, Part 3:
Component Description/Coordinates, A45 - Z57/1:
