Interior Lights PE82.20-U-2000G (Up to 11/99)
Interior Lights PE82.20-U-2000G
- Up to 11/99

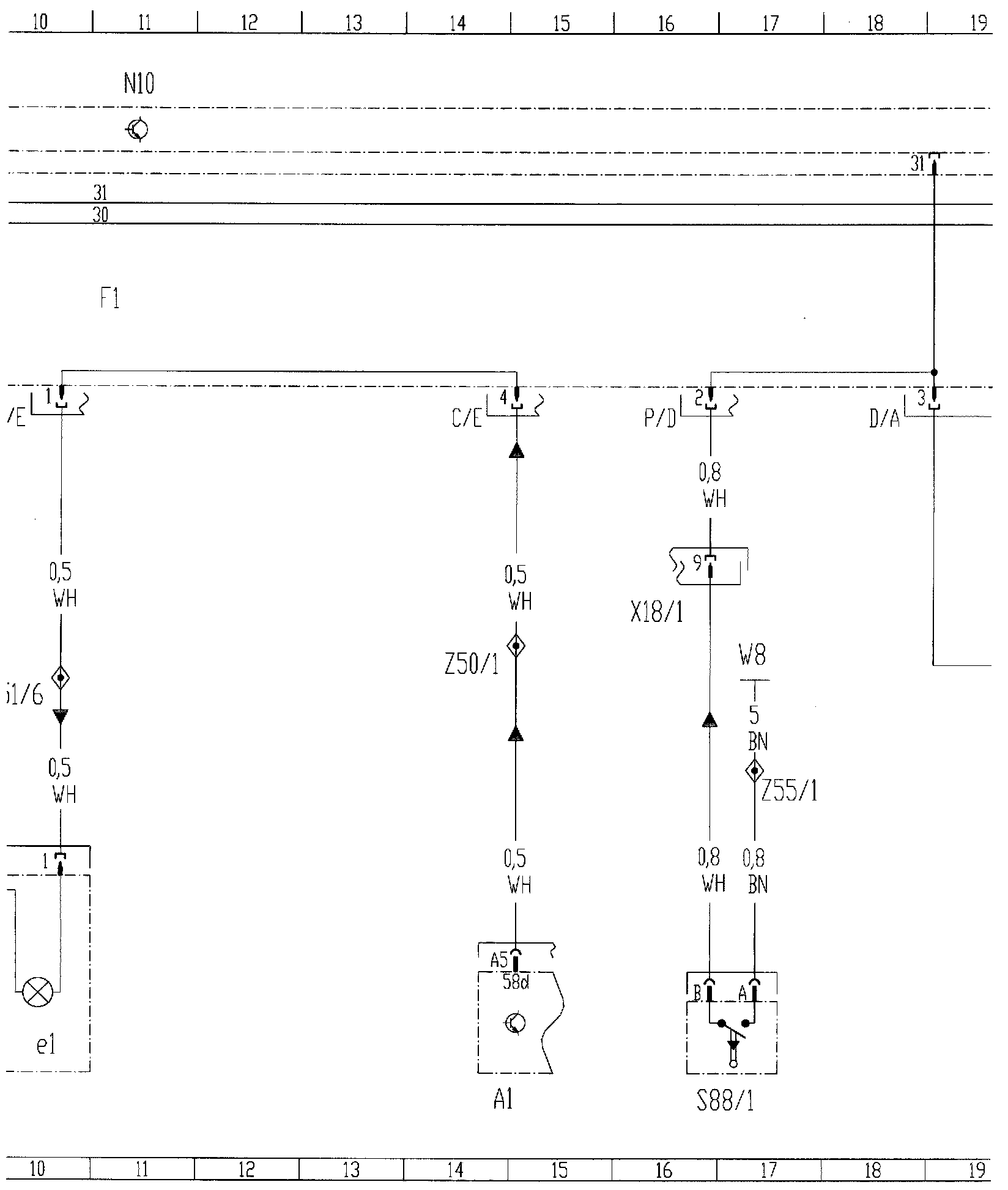

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:
Diagram, Part 5:
Diagram, Part 6:

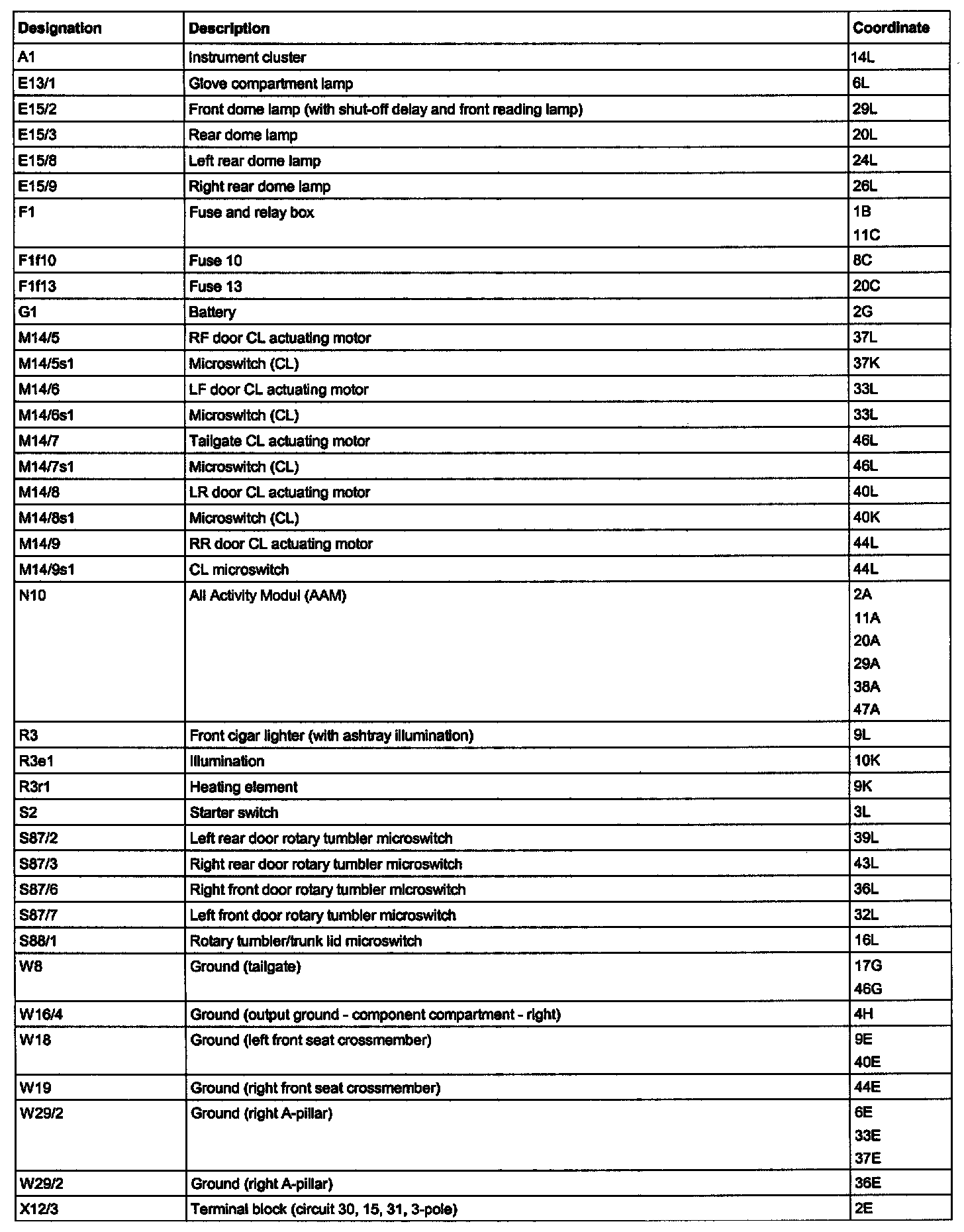

Component Description/Coordinates, A1 - X12/3:
Component Description/Coordinates, X18/1 - Z55/1:
