AR82.10-P-5103GH Remove/Install Fog Lamp

Remove/Install Fog Lamp
- with CODE (U49) Styling Package







Remove/Install

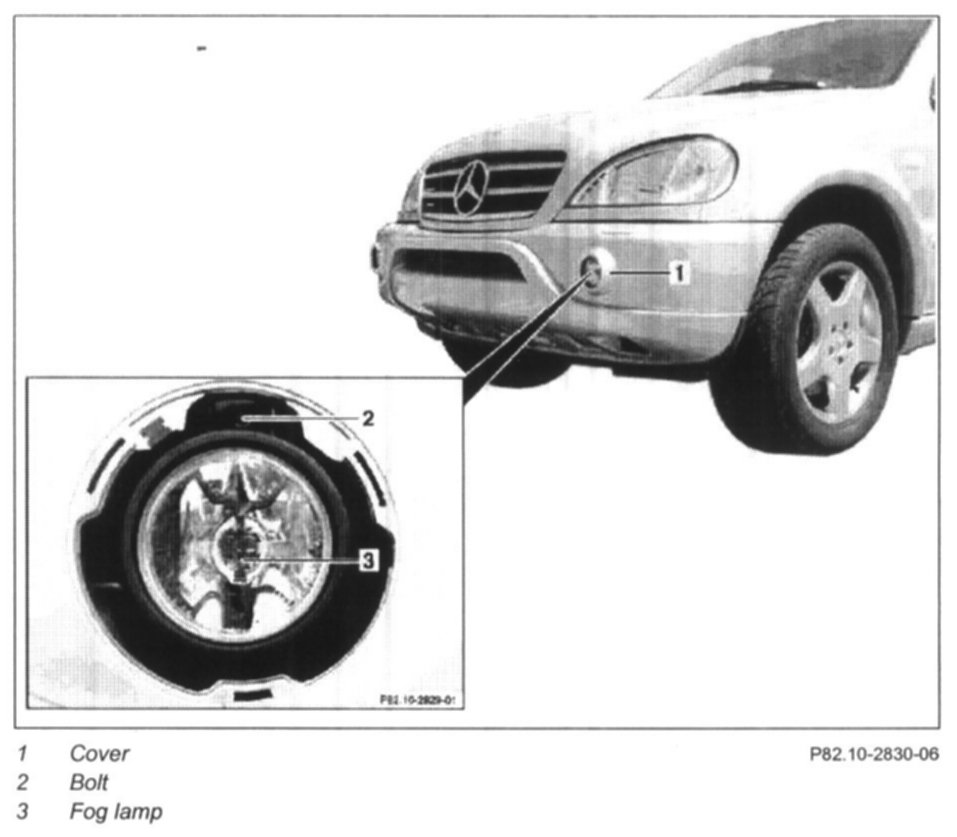

1 Remove cover (1)
2 Unscrew bolt (2)
3 Remove fog lamp (3) from bumper
4 Disconnect connector
5 Install in the reverse order
