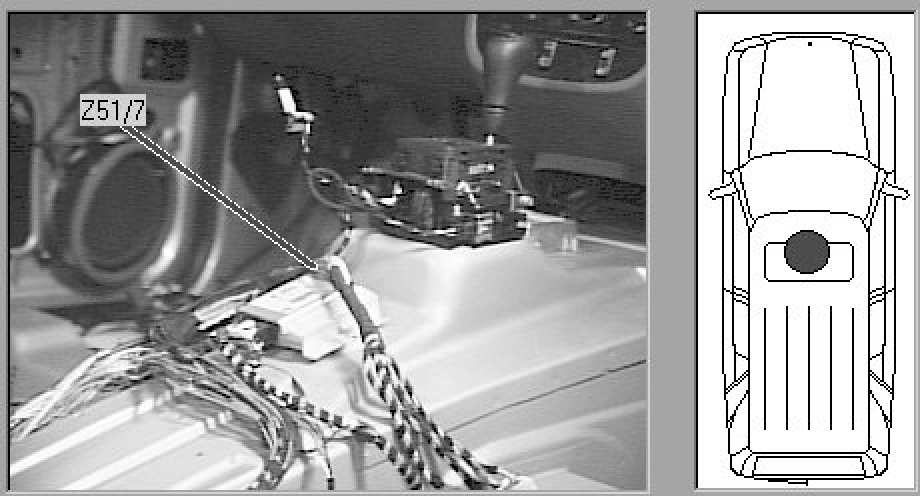

Z51/7- Cir. 31 Solder Splice








Passenger compartment, on transmission tunnel to rear of shifter.
