ML 320 (163.154) V6-3.2L (112.942)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
By Splice Location
>>
GF00.19-U-3000-03E - Cockpit
GF00.19-U-3000-03E - Cockpit

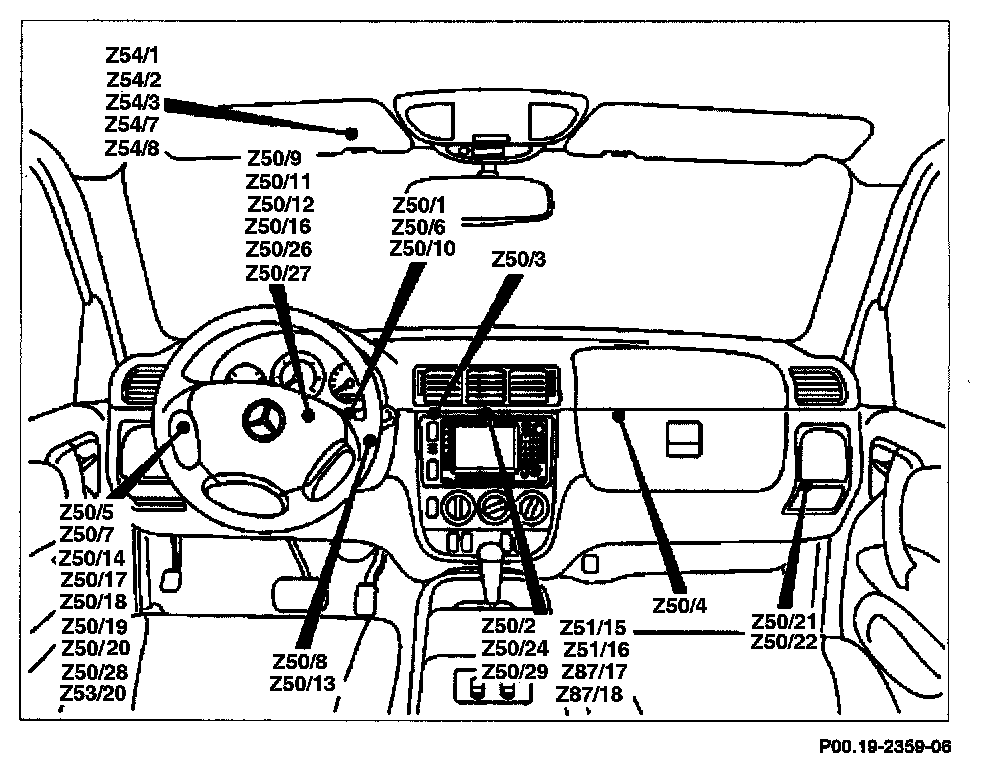

Arrangement
Assignment

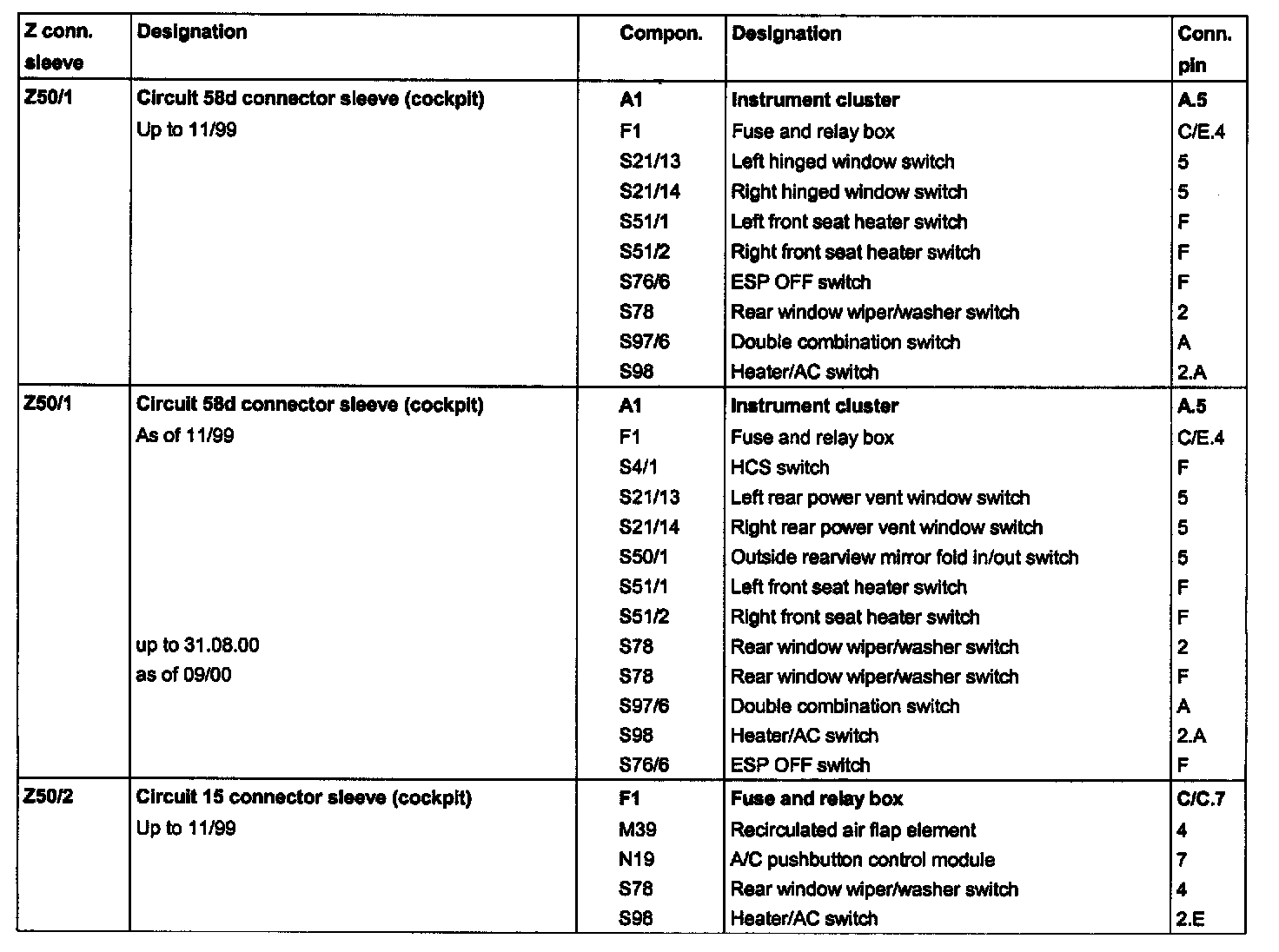

Z50/1 - Z50/2:

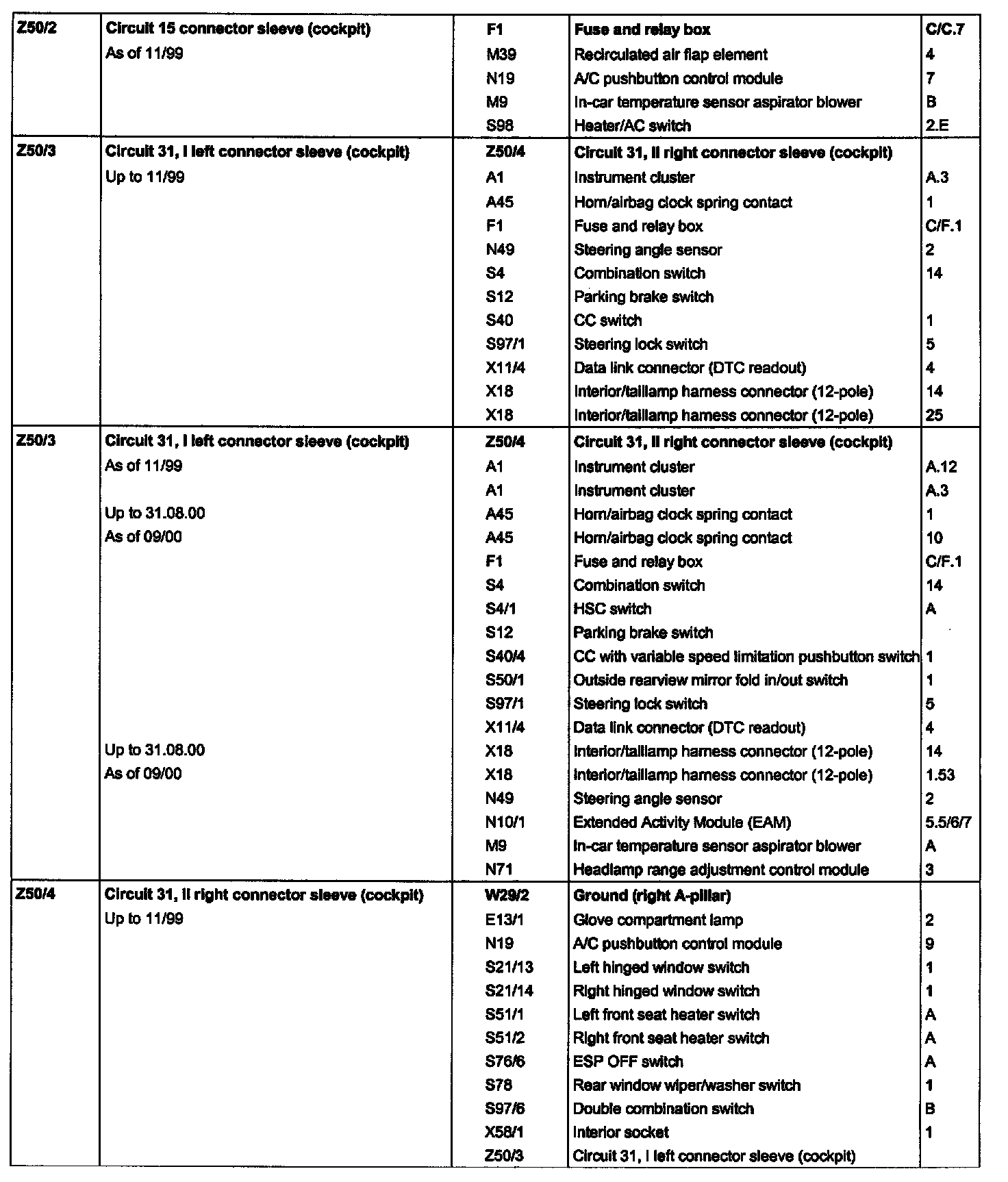

Z50/2 - Z50/4:

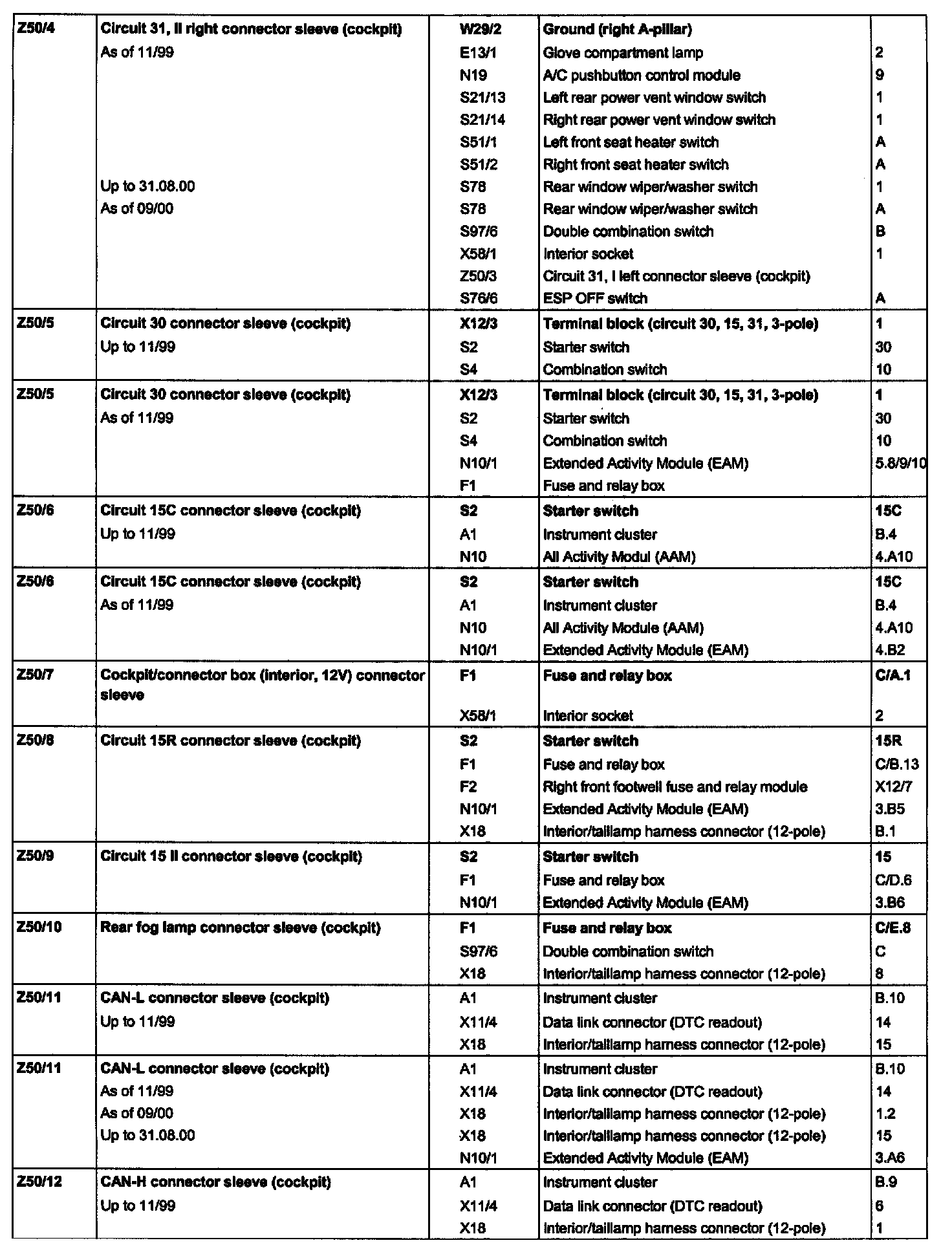

Z50/4 - Z50/12:

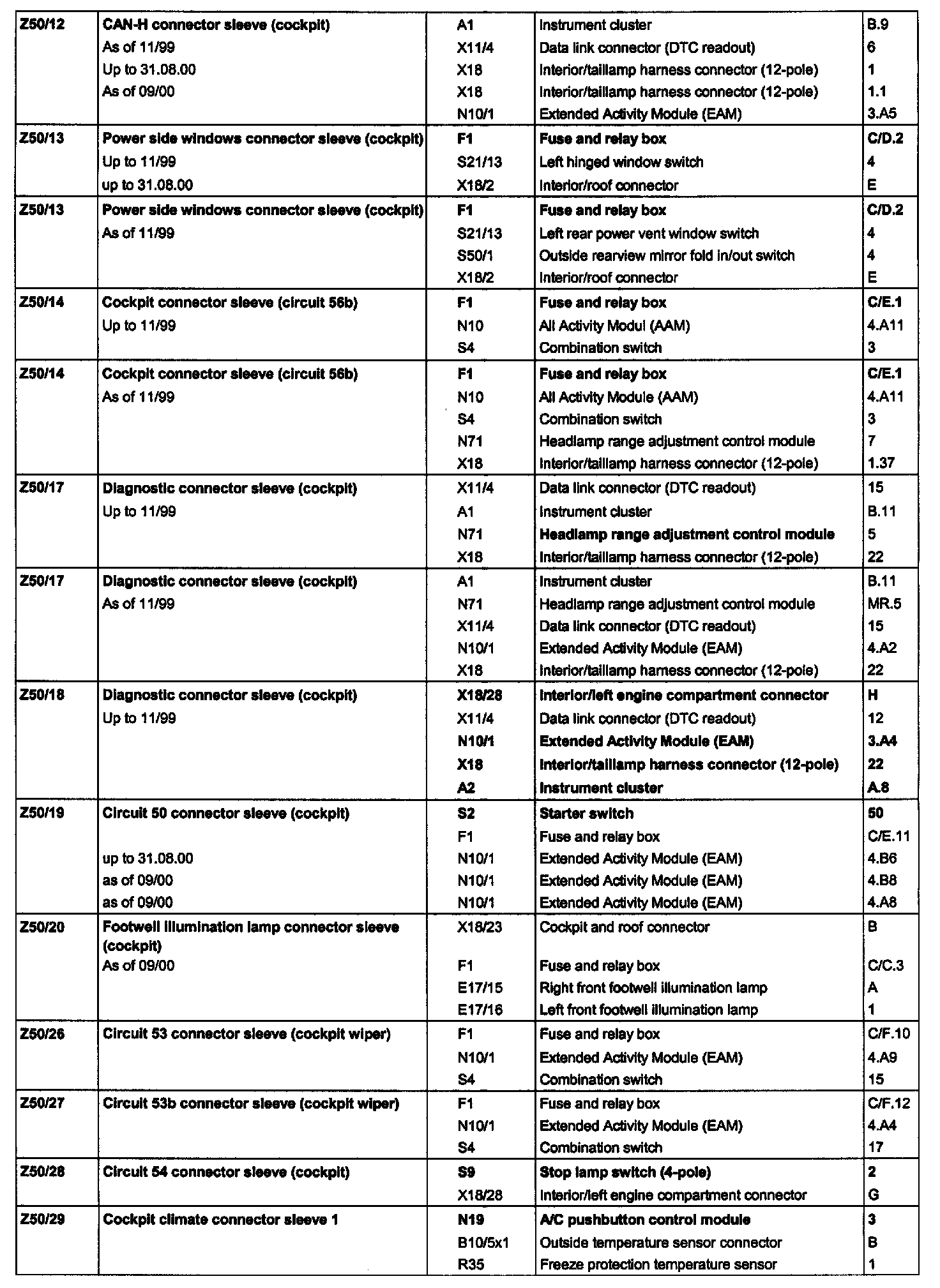

Z50/12 - Z50/29:

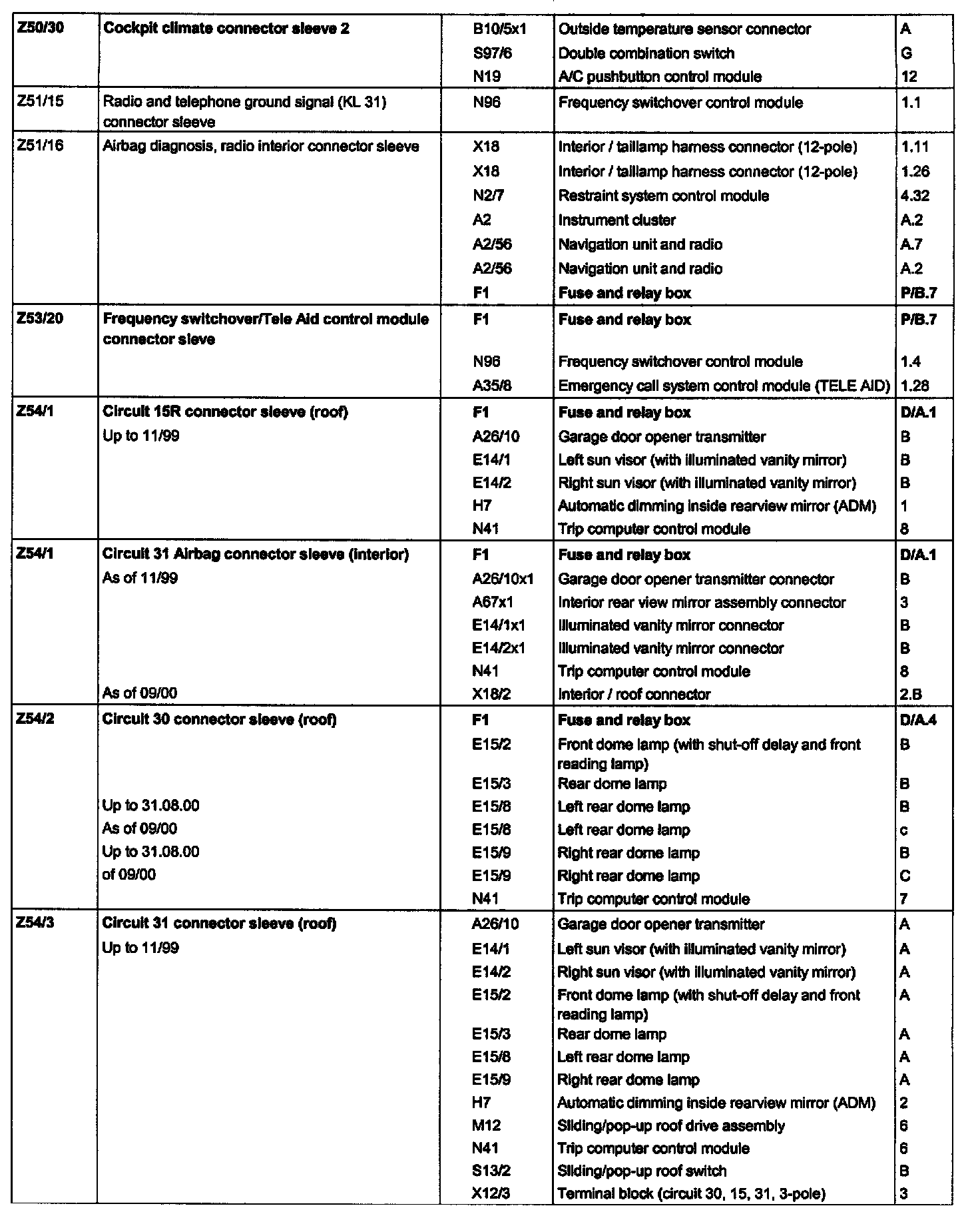

Z50/30 - Z54/3:
Z54/3 - Z87/18:
