Fuse and Relay Box (F1) PE54.15-U-2000L, Part 1

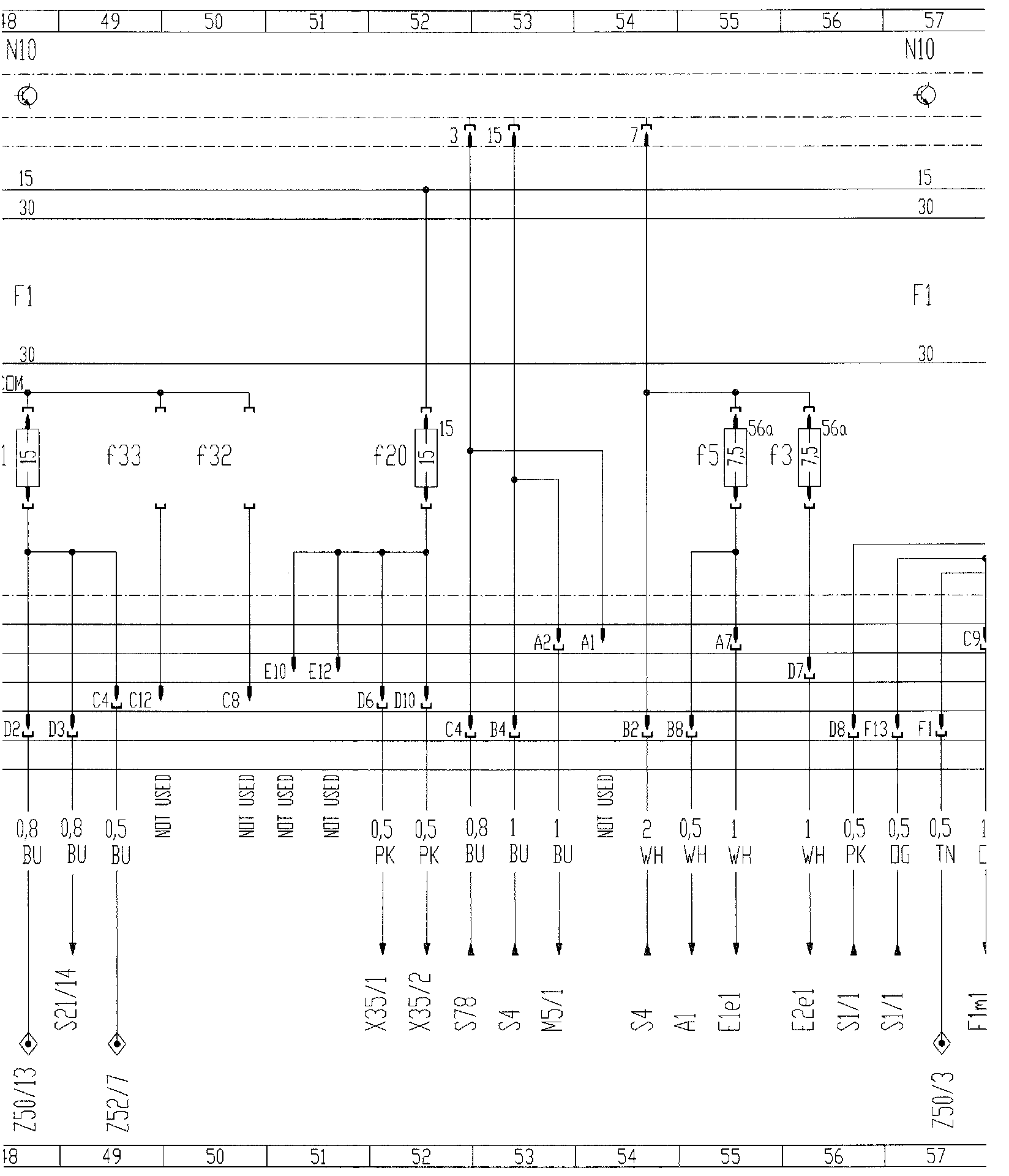

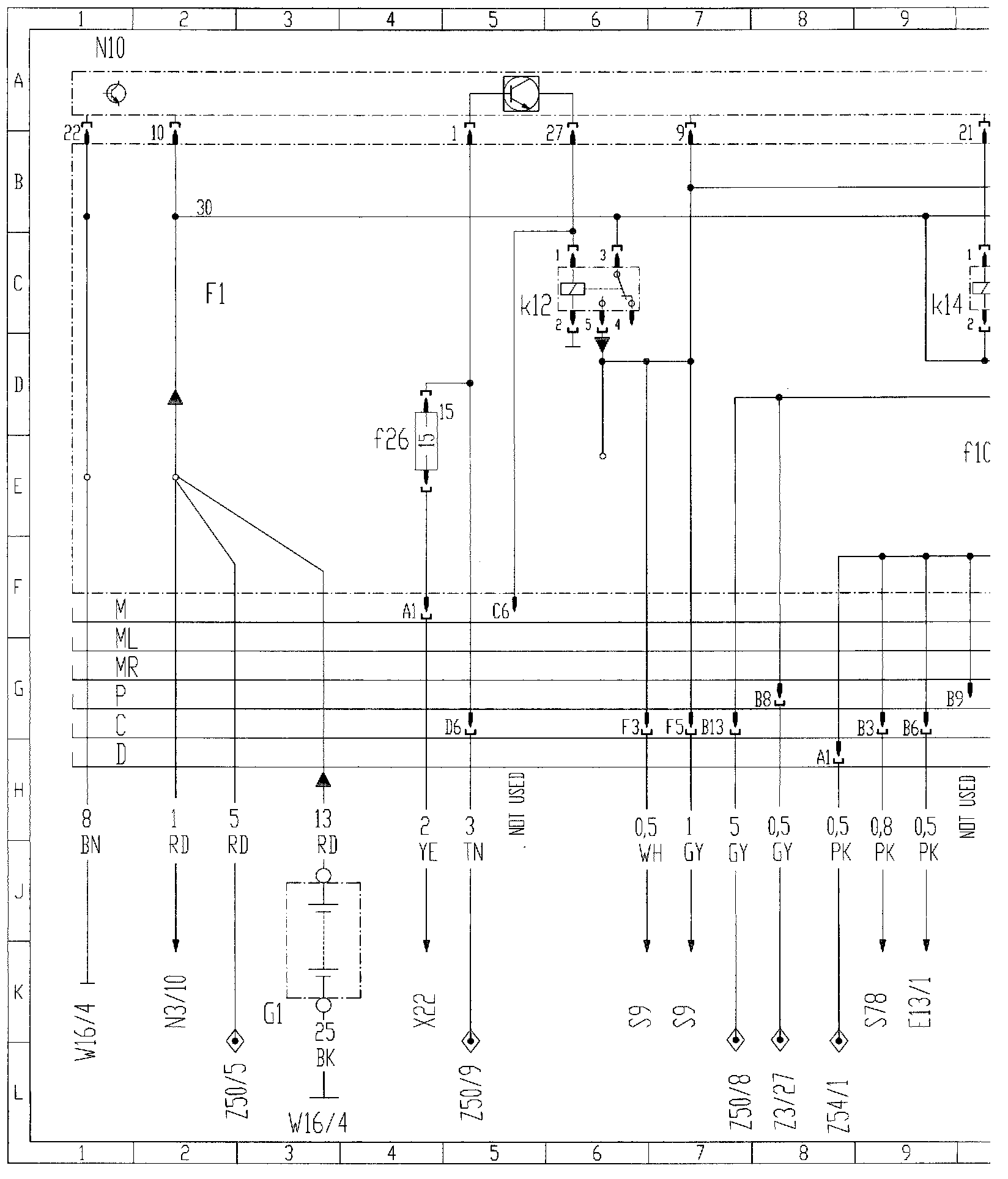

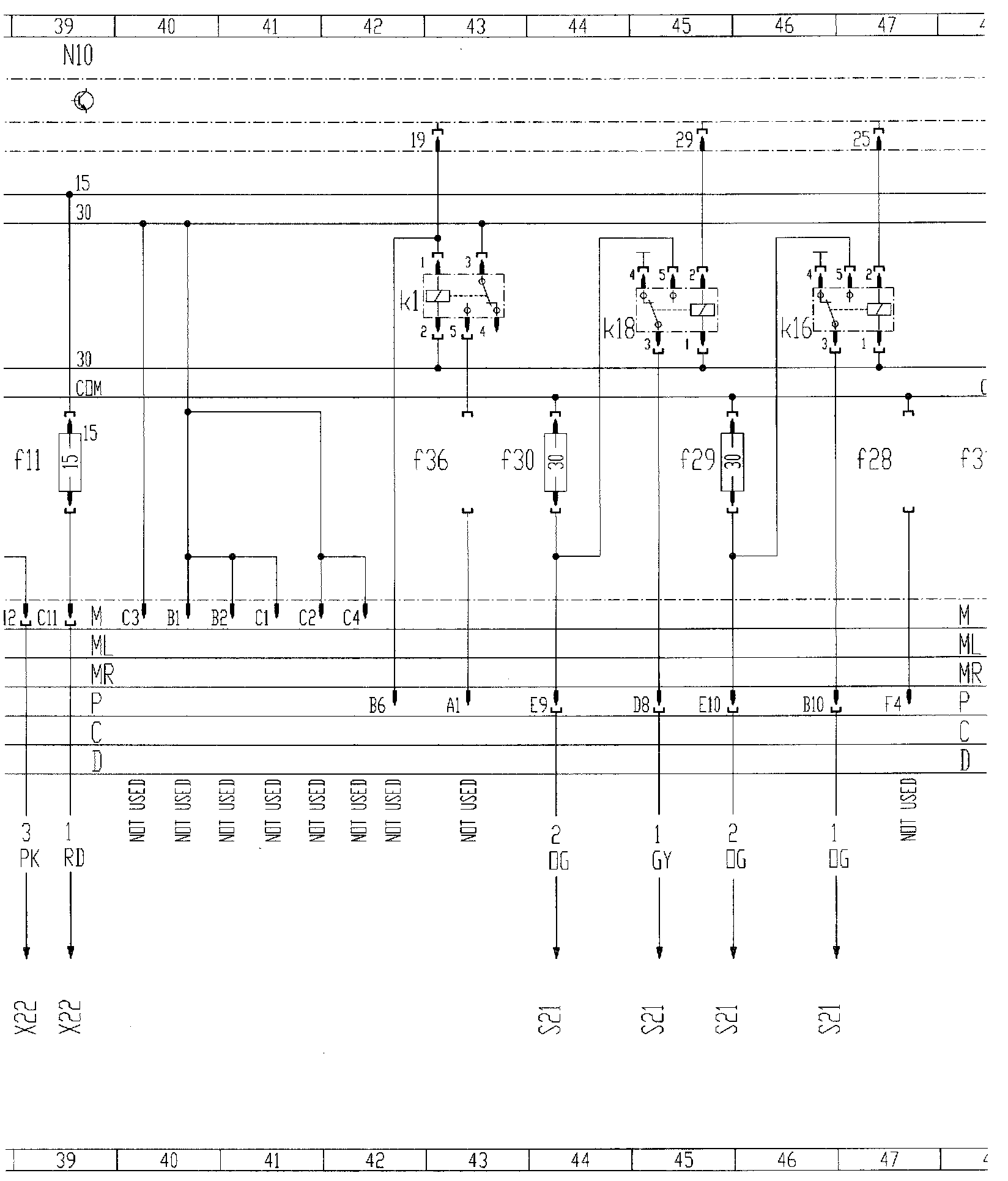

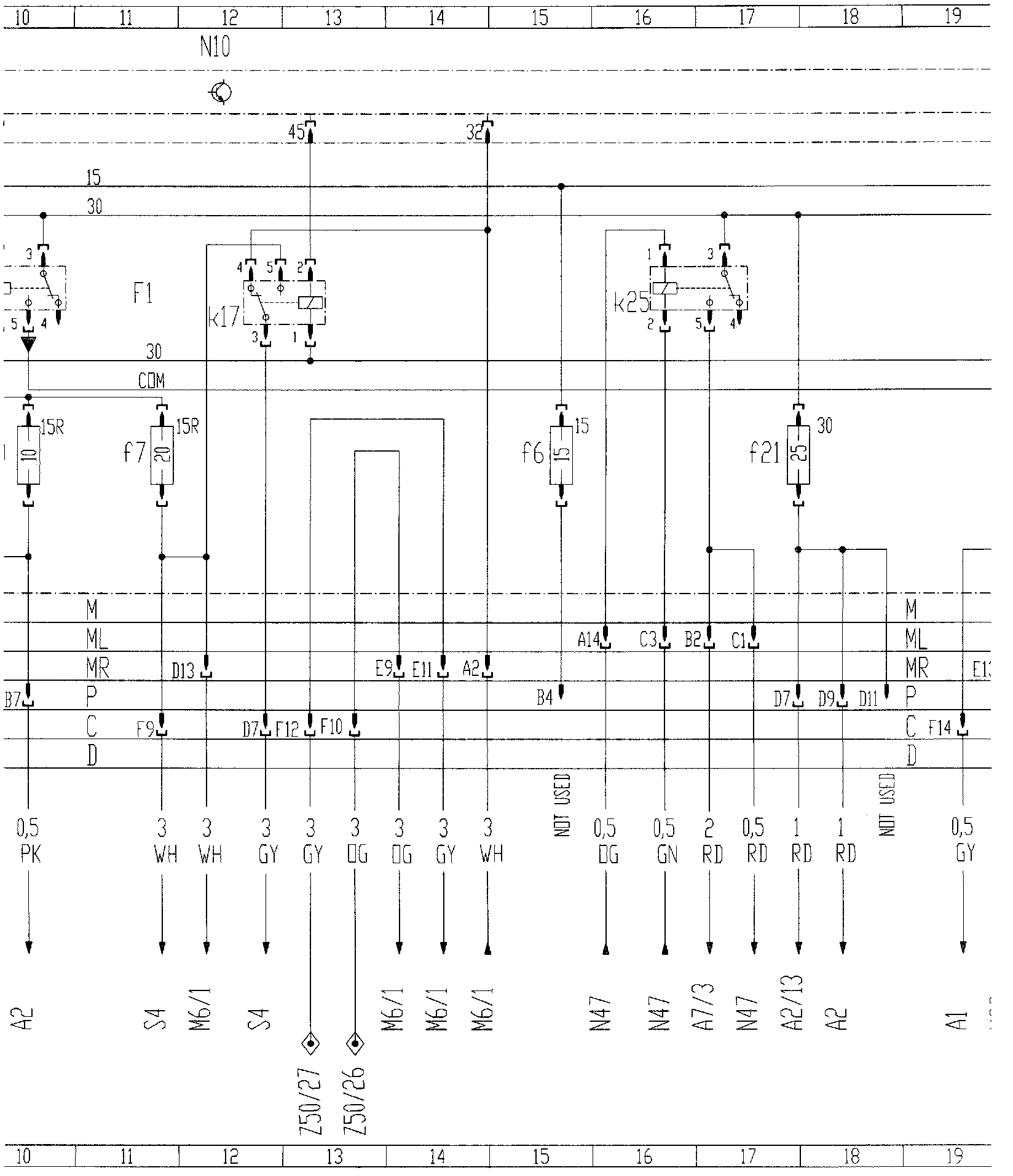

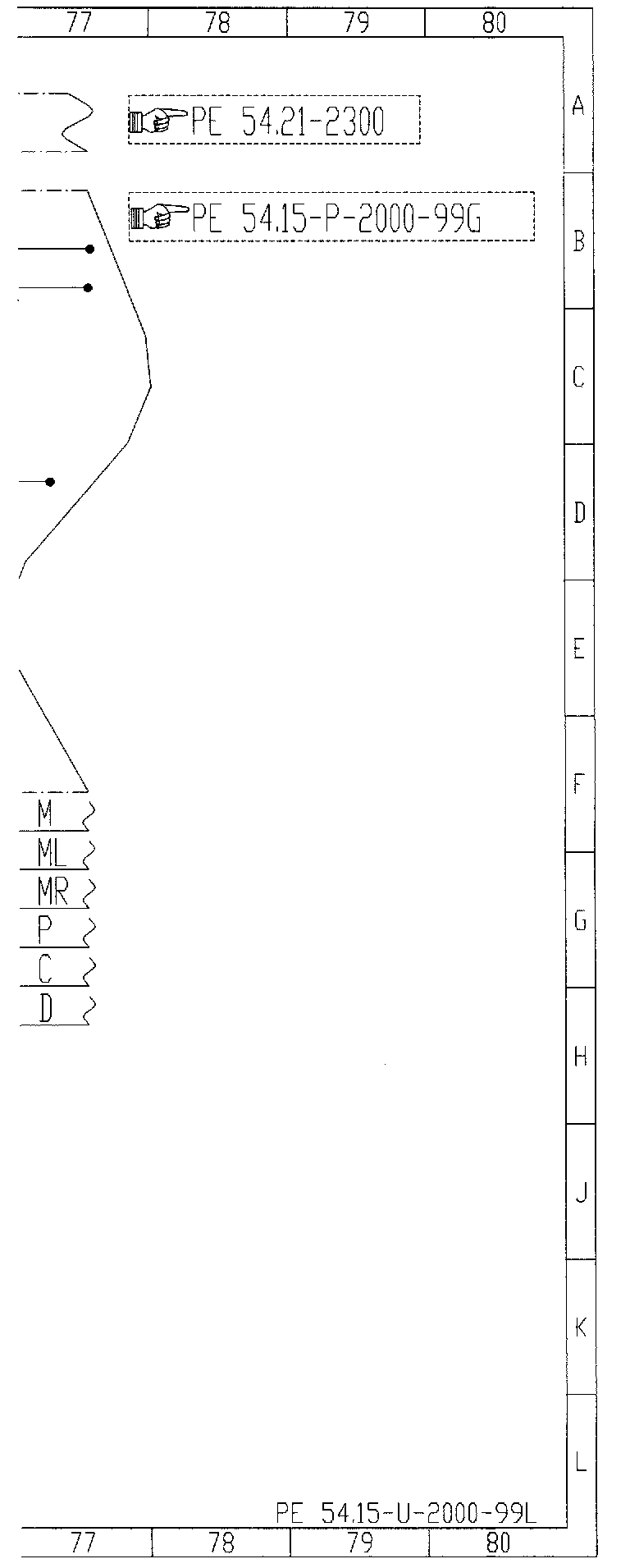

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

Component Description/Coordinates, A1 - F1f22:

Component Description/Coordinates, F1f24 - N15/5:

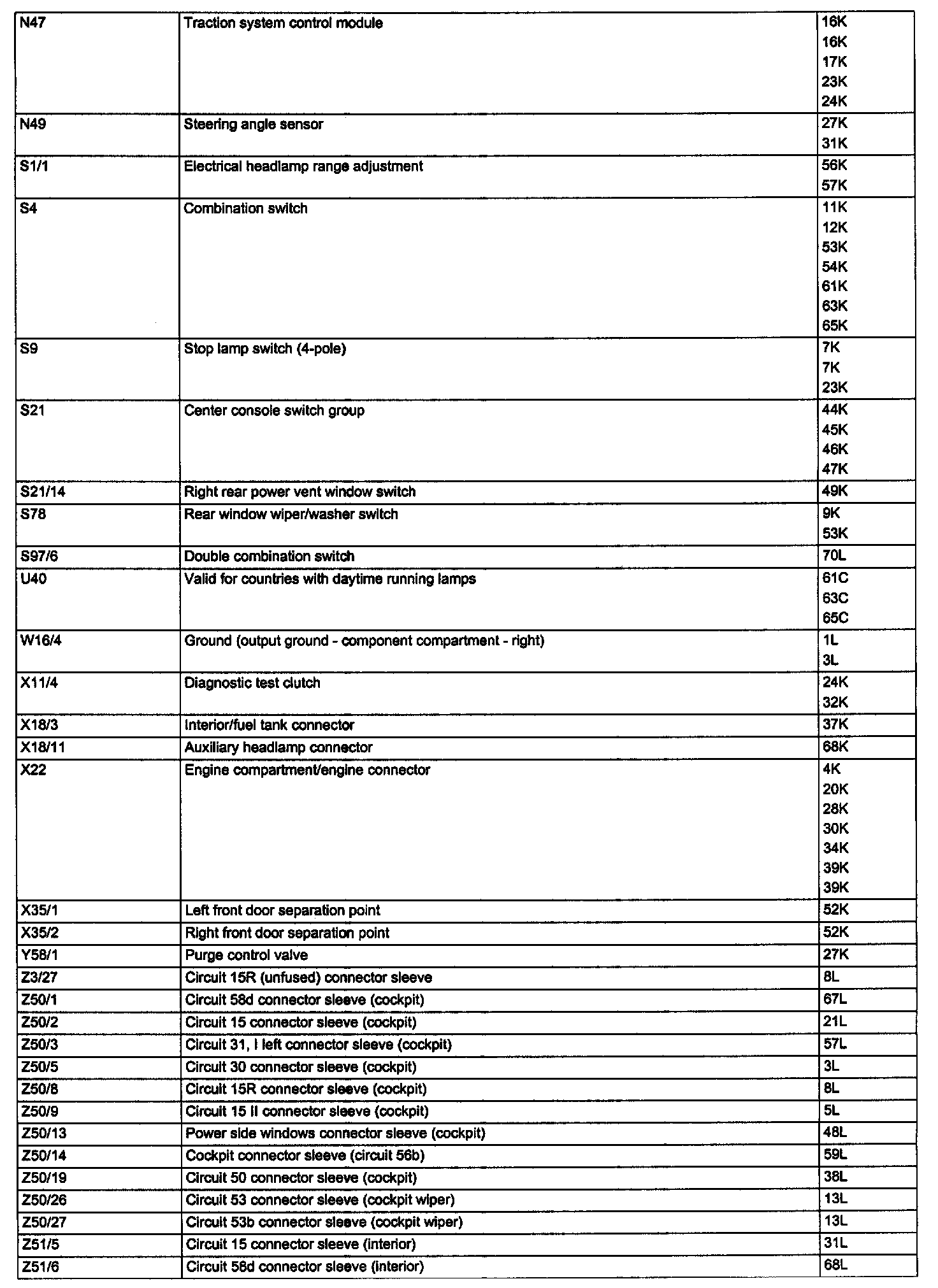

Component Description/Coordinates, N47 - Z51/6:

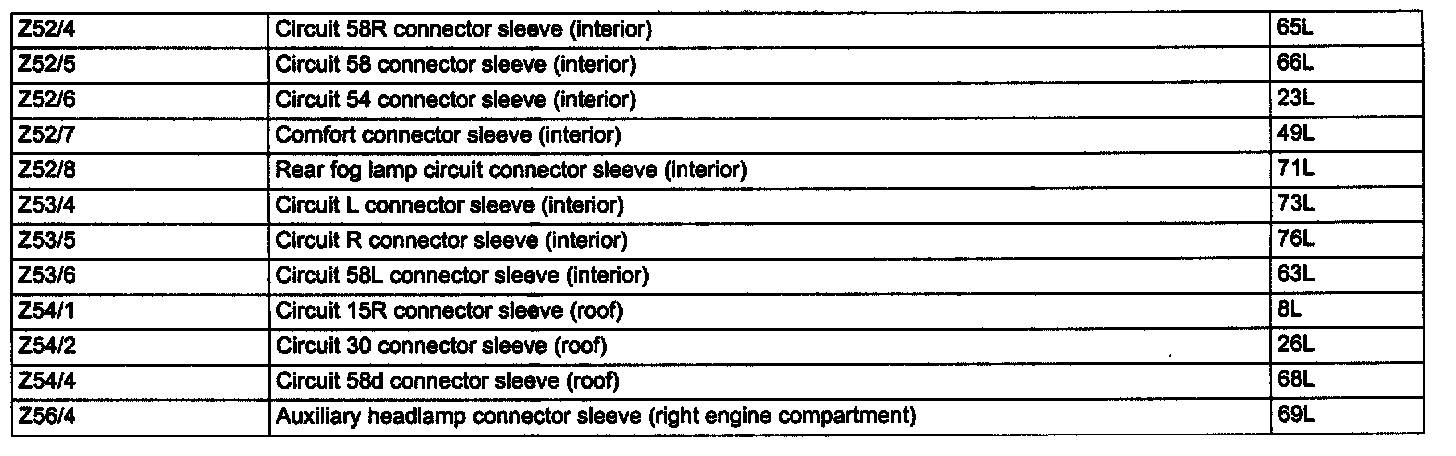

Component Description/Coordinates, Z52/4 - Z56/4:
