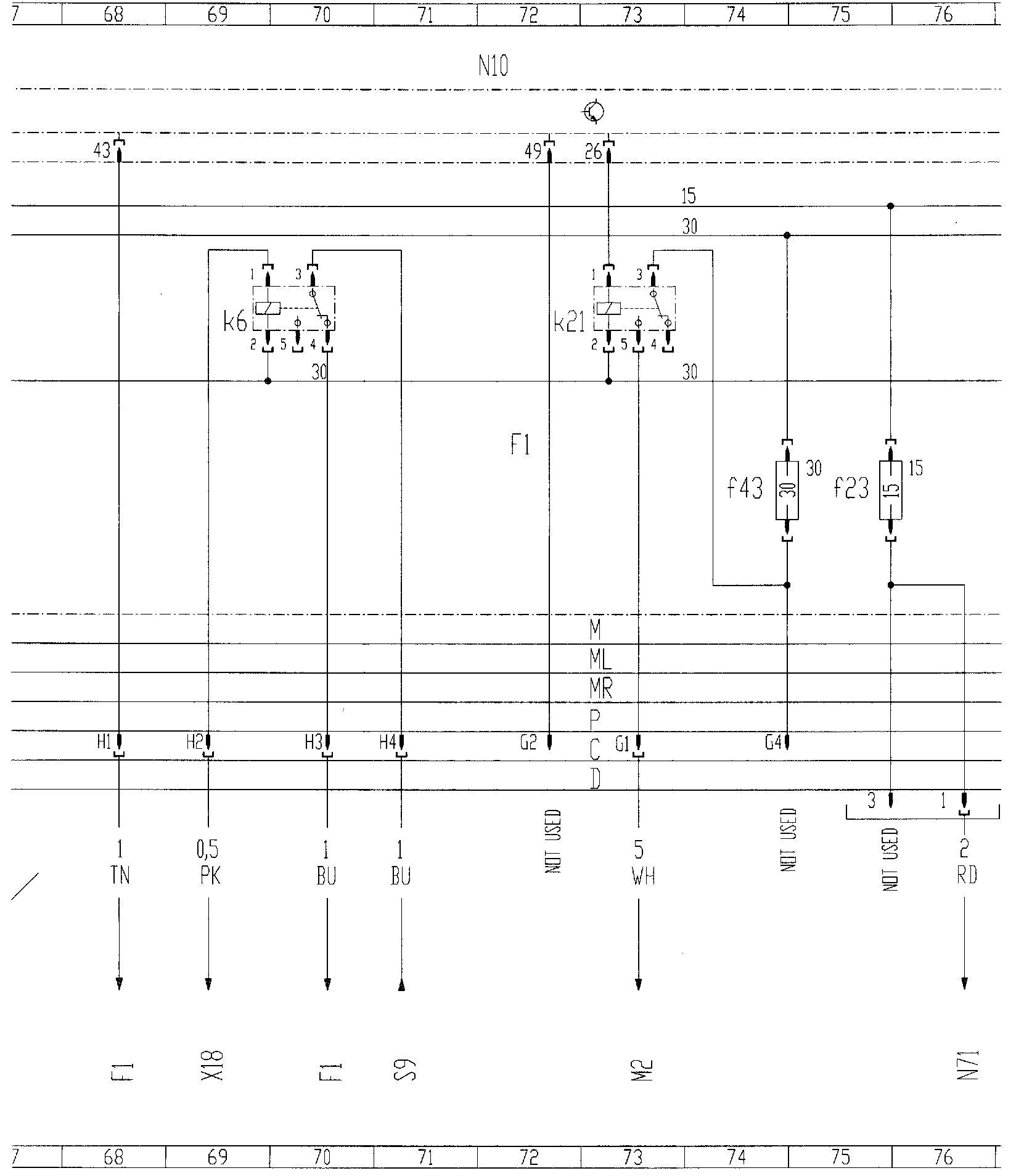

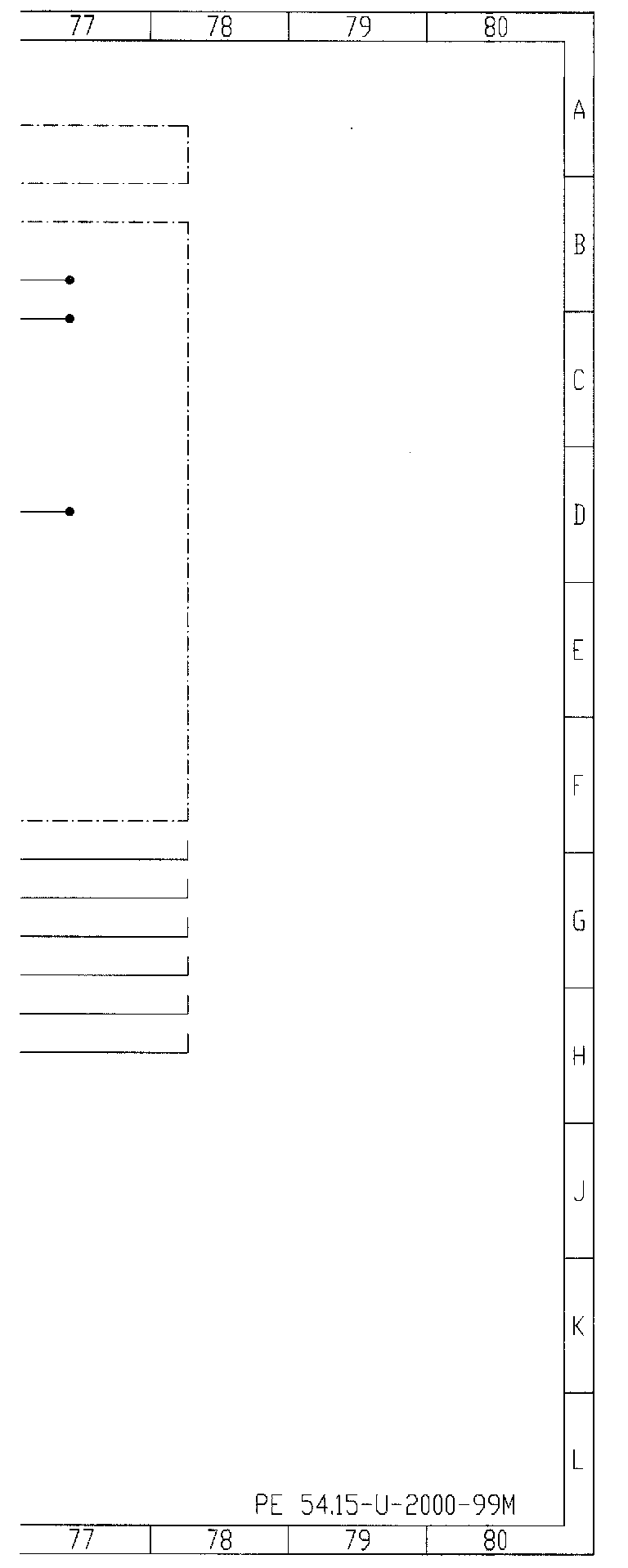

Fuse and Relay Box (F1) PE54.15-U-2000M, Part 2

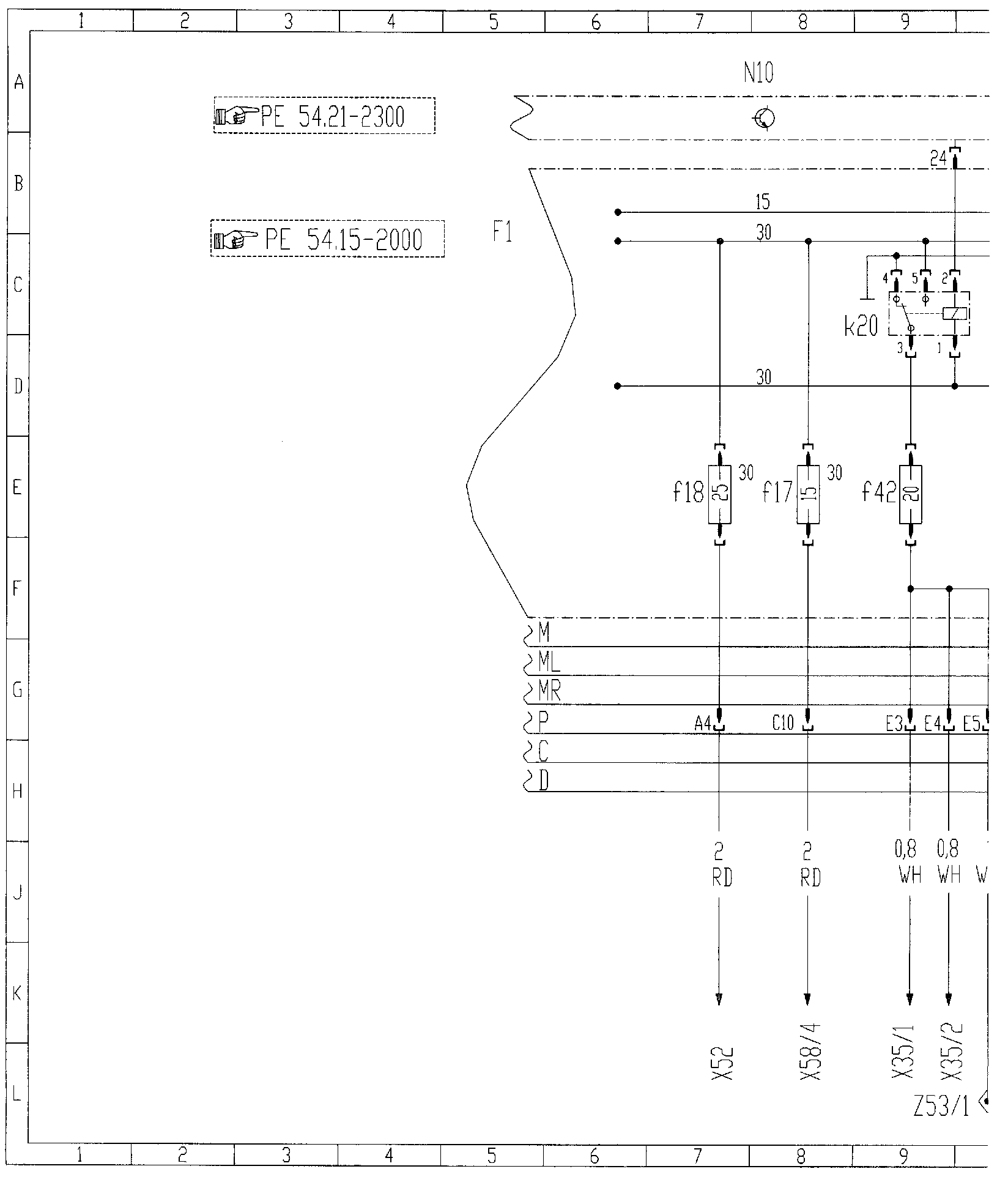

Diagram, Part 1:

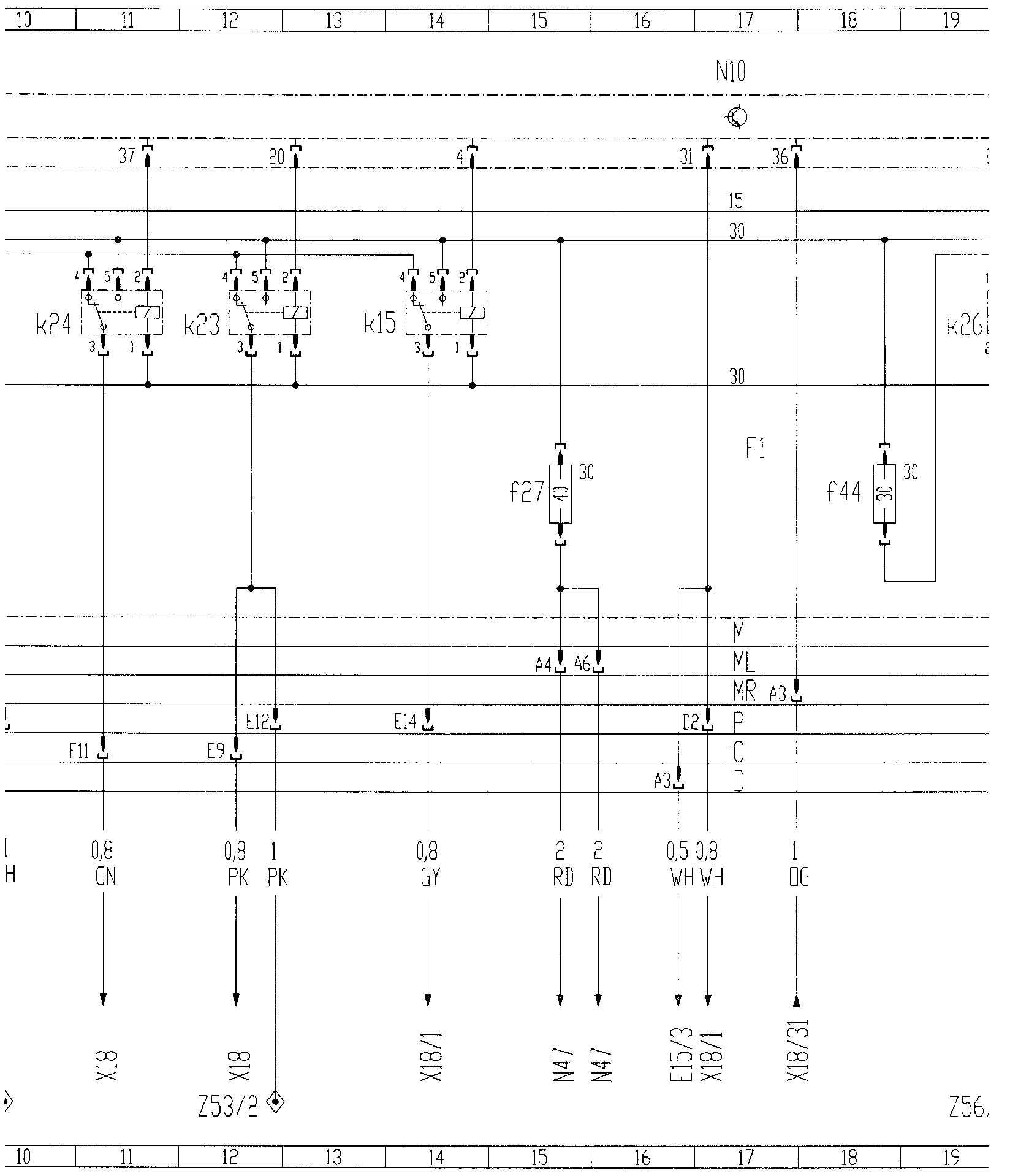

Diagram, Part 2:

Diagram, Part 3:

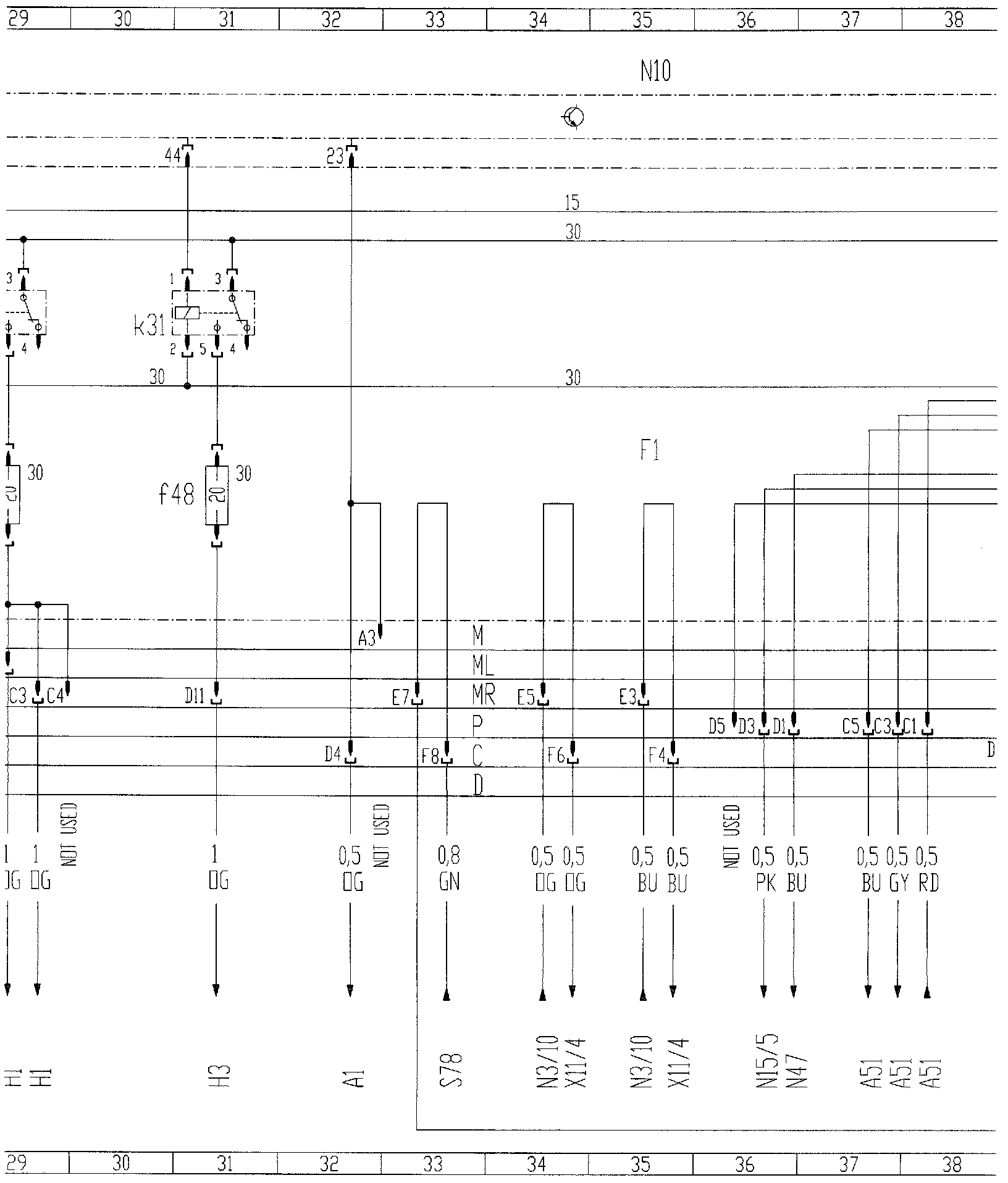

Diagram, Part 4:

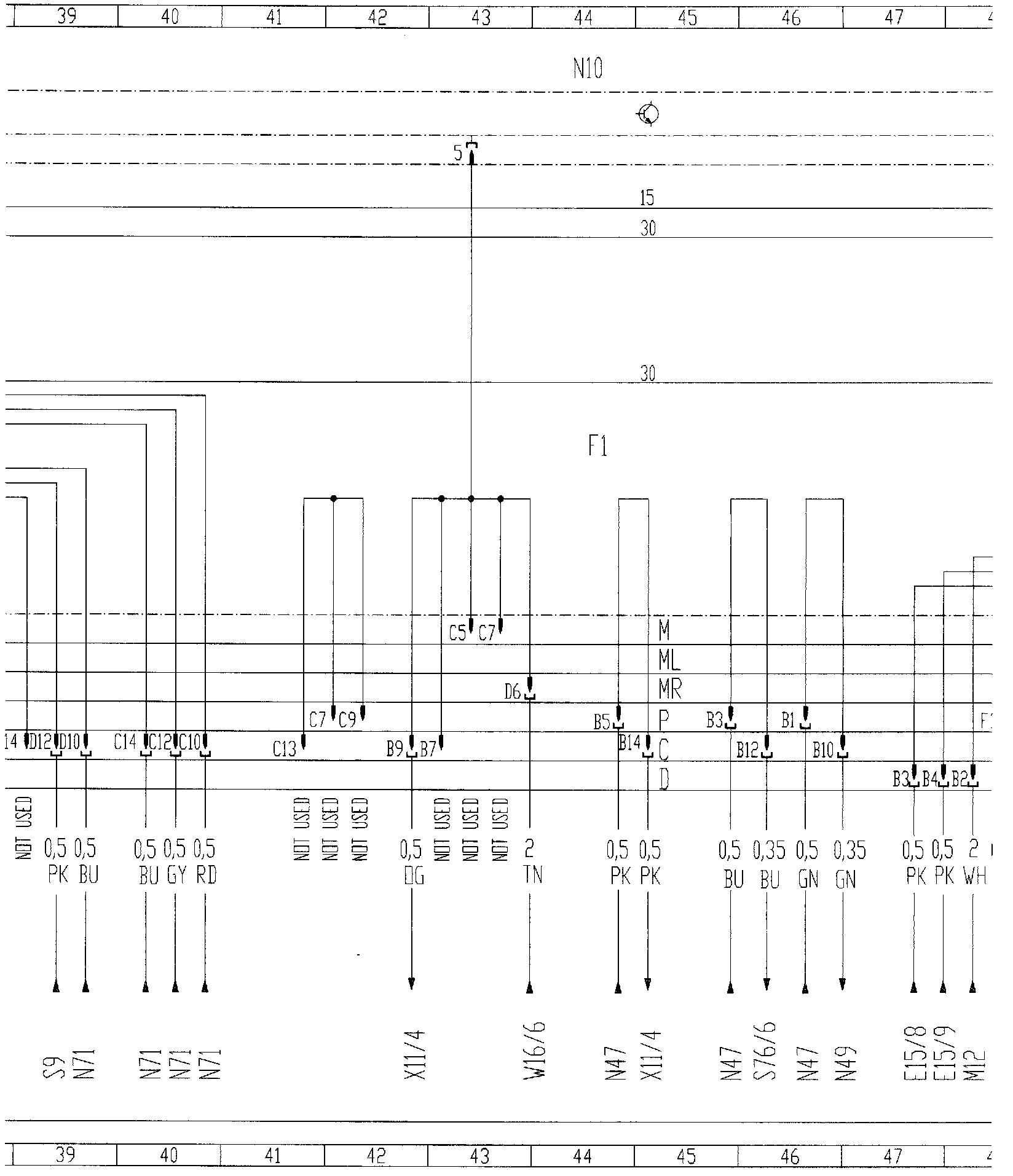

Diagram, Part 5:

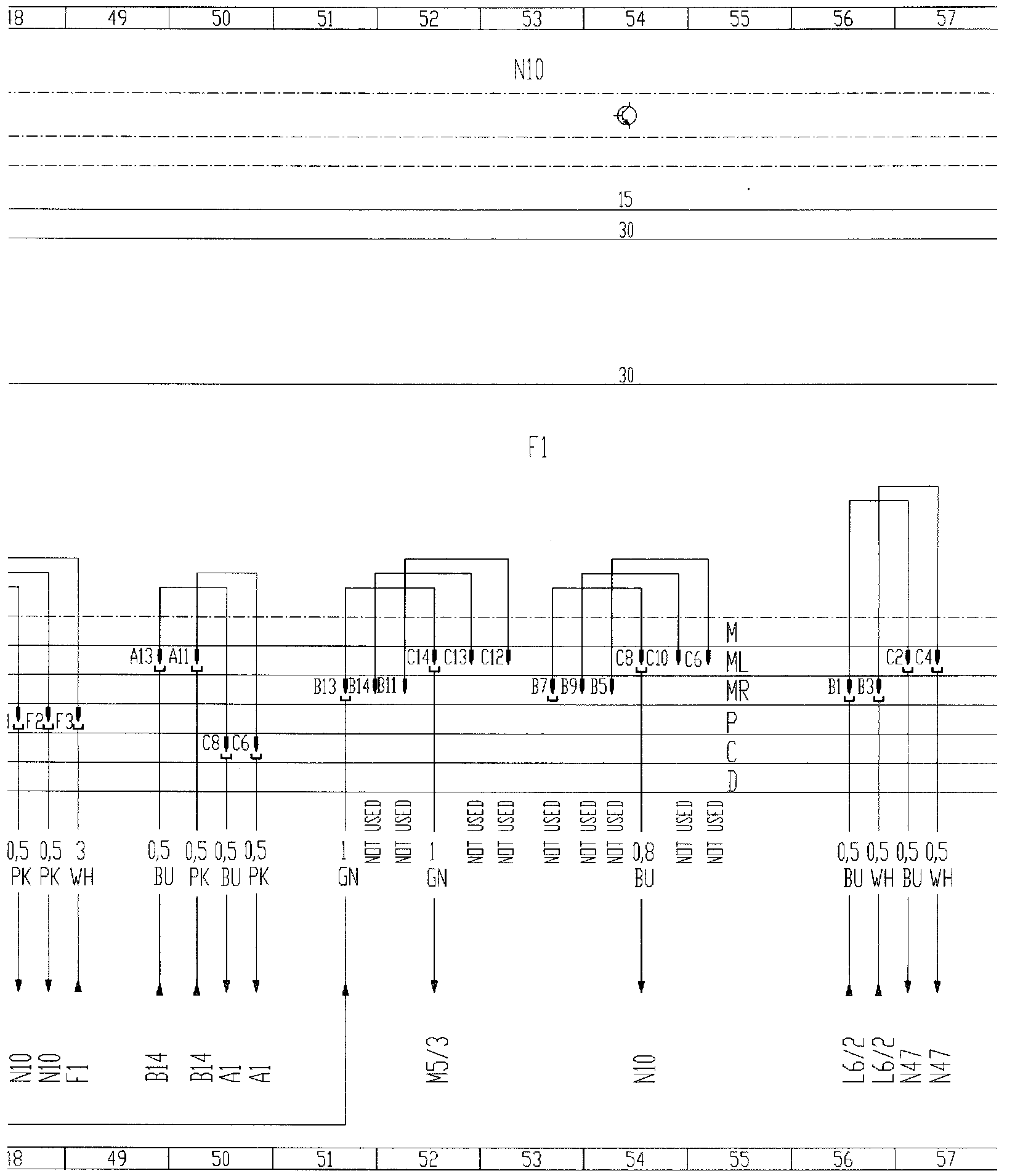

Diagram, Part 6:

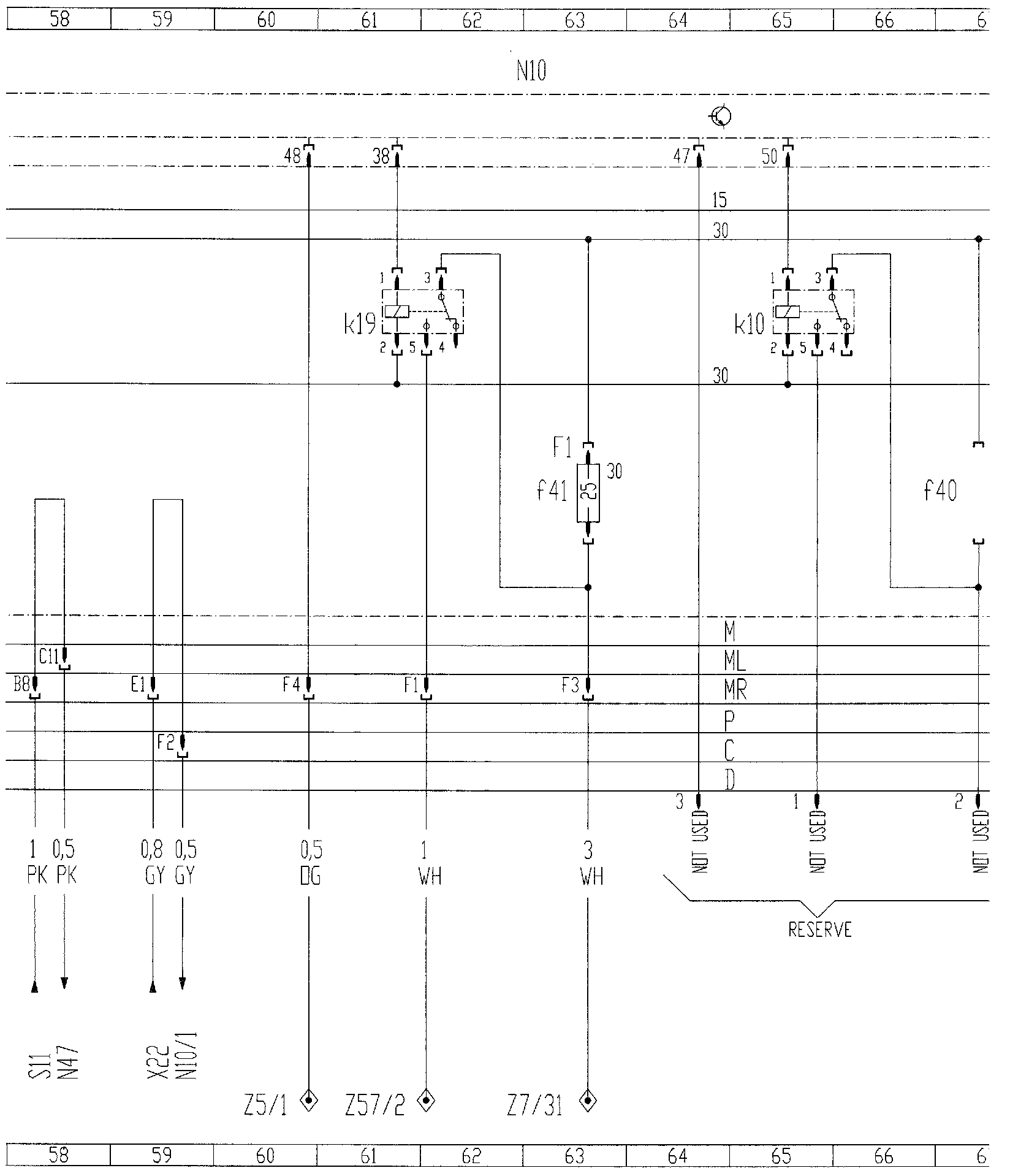

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

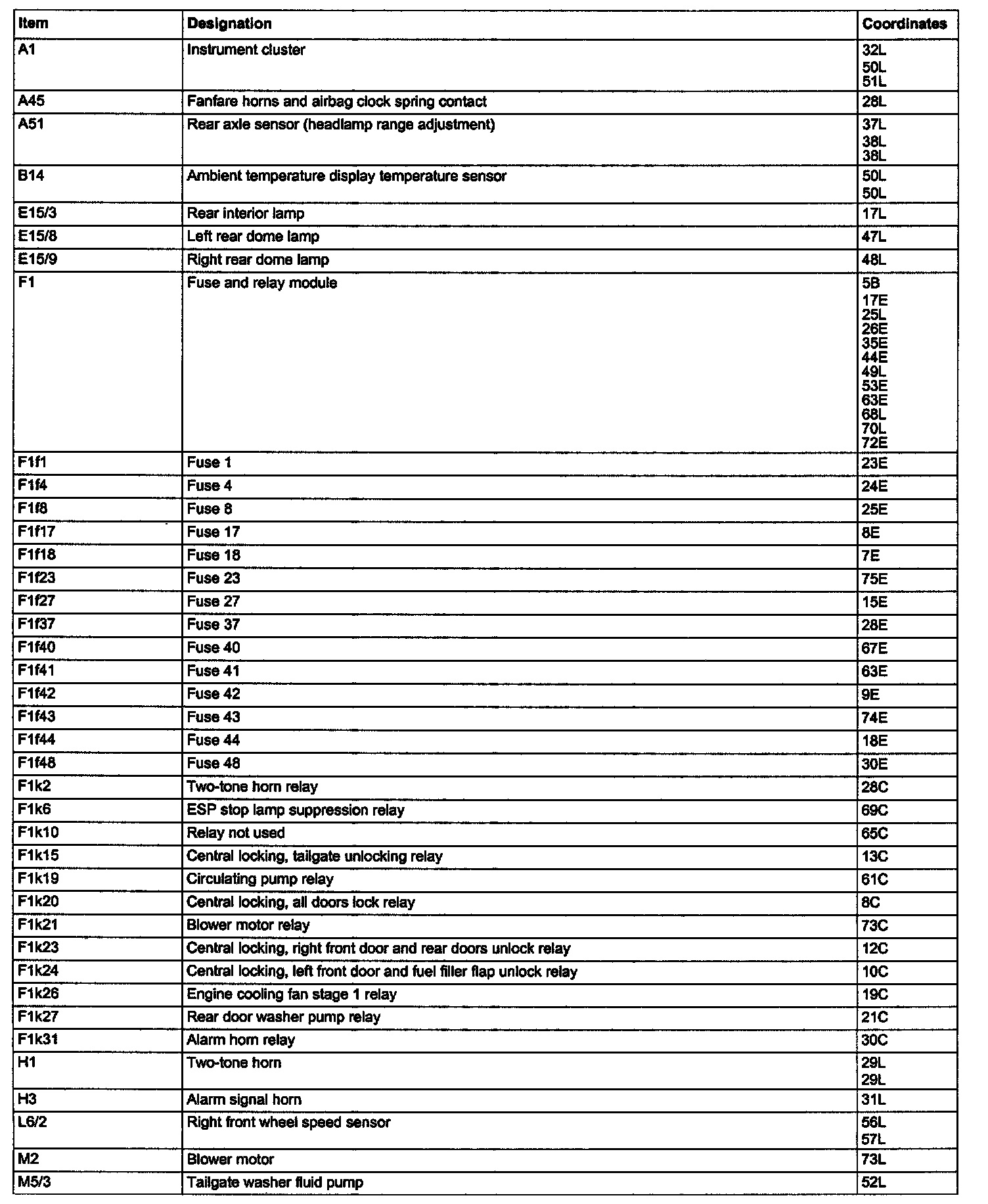

Component Description/Coordinates, A1 - M5/3:

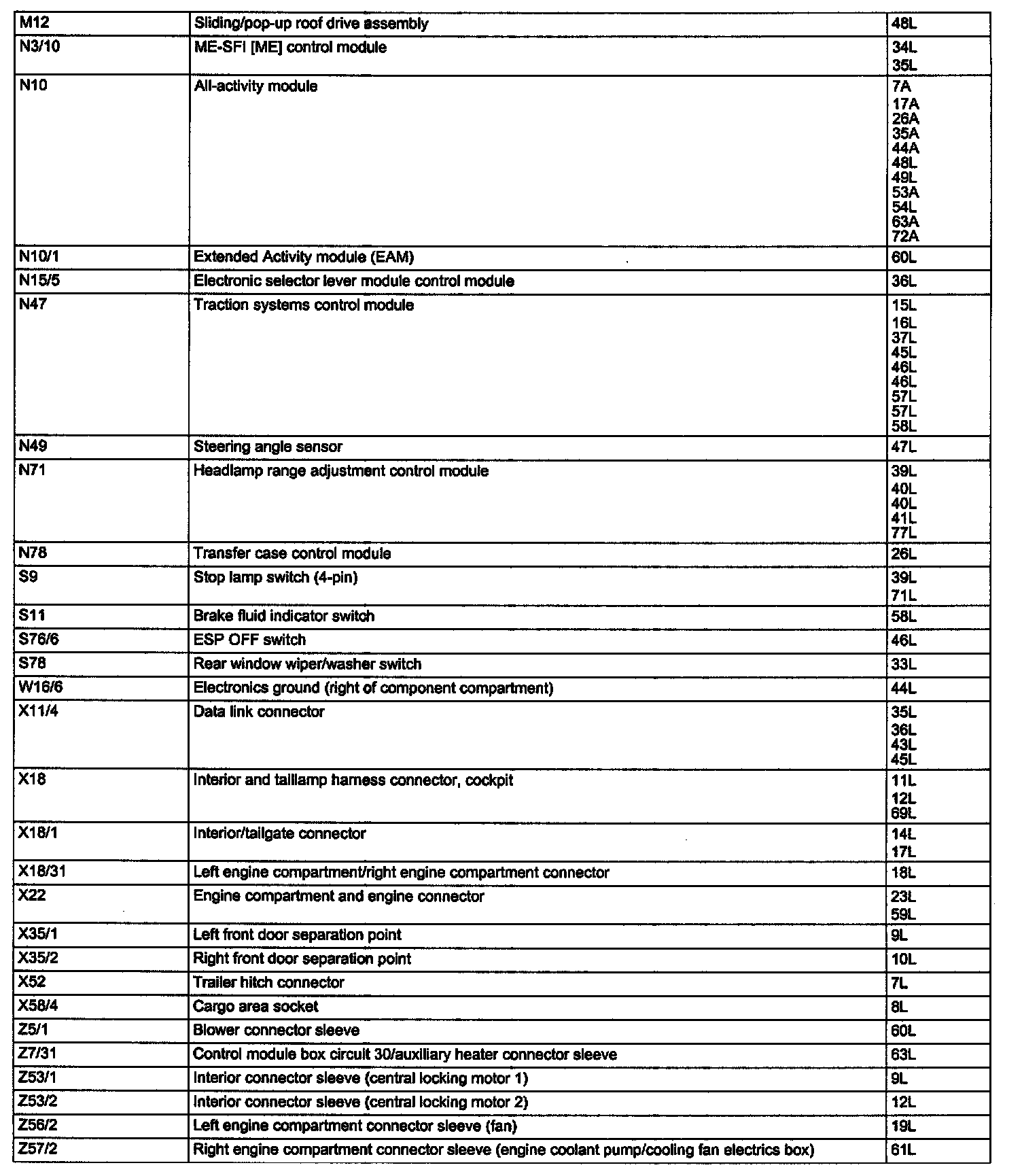

Component Description/Coordinates, M12 - Z57/2:
