Fuse and Relay Box (F2) PE54.15-U-2150A

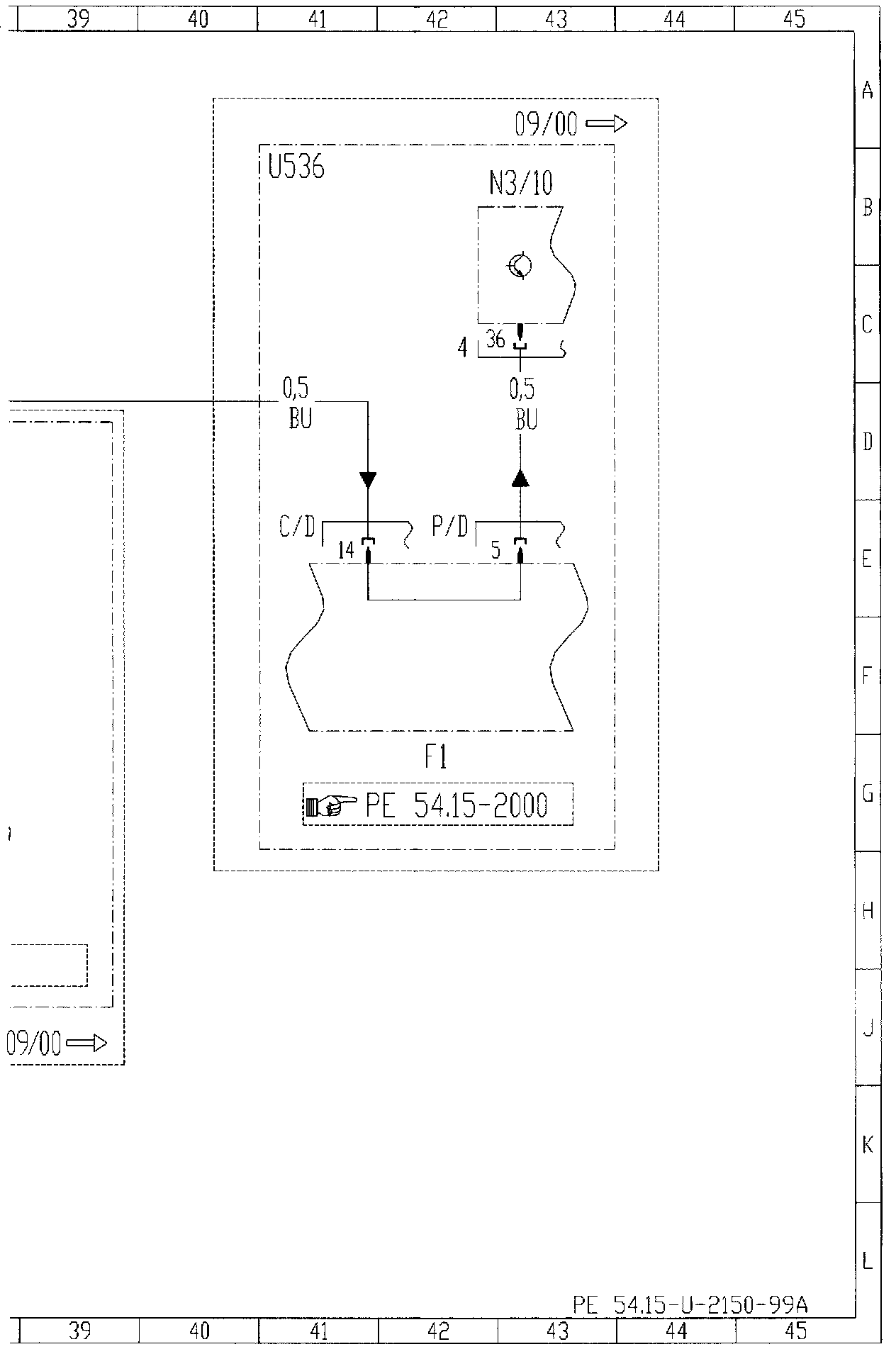

Diagram, Part 1:

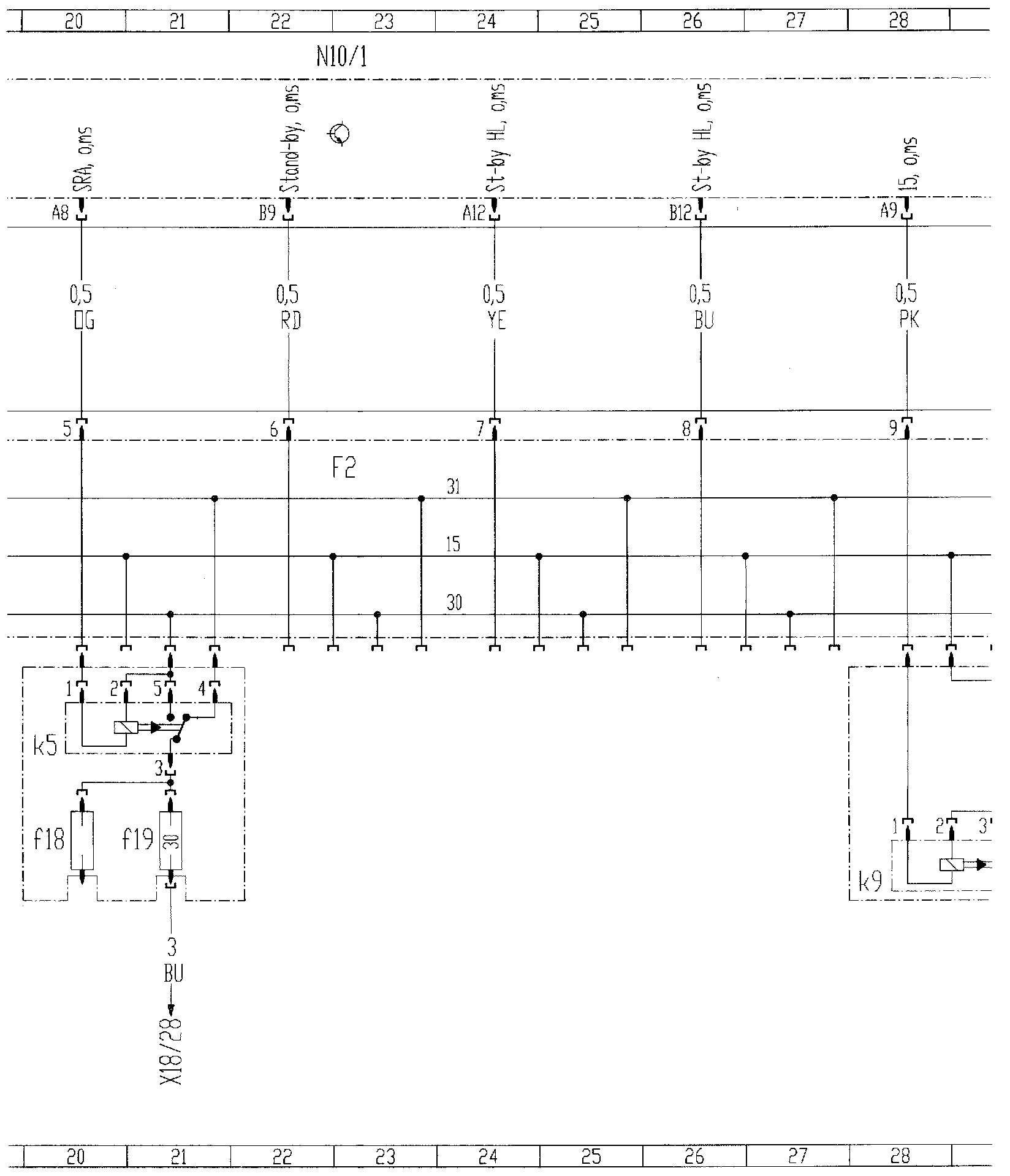

Diagram, Part 2:






Diagram, Part 3:






Diagram, Part 4:






Diagram, Part 5:

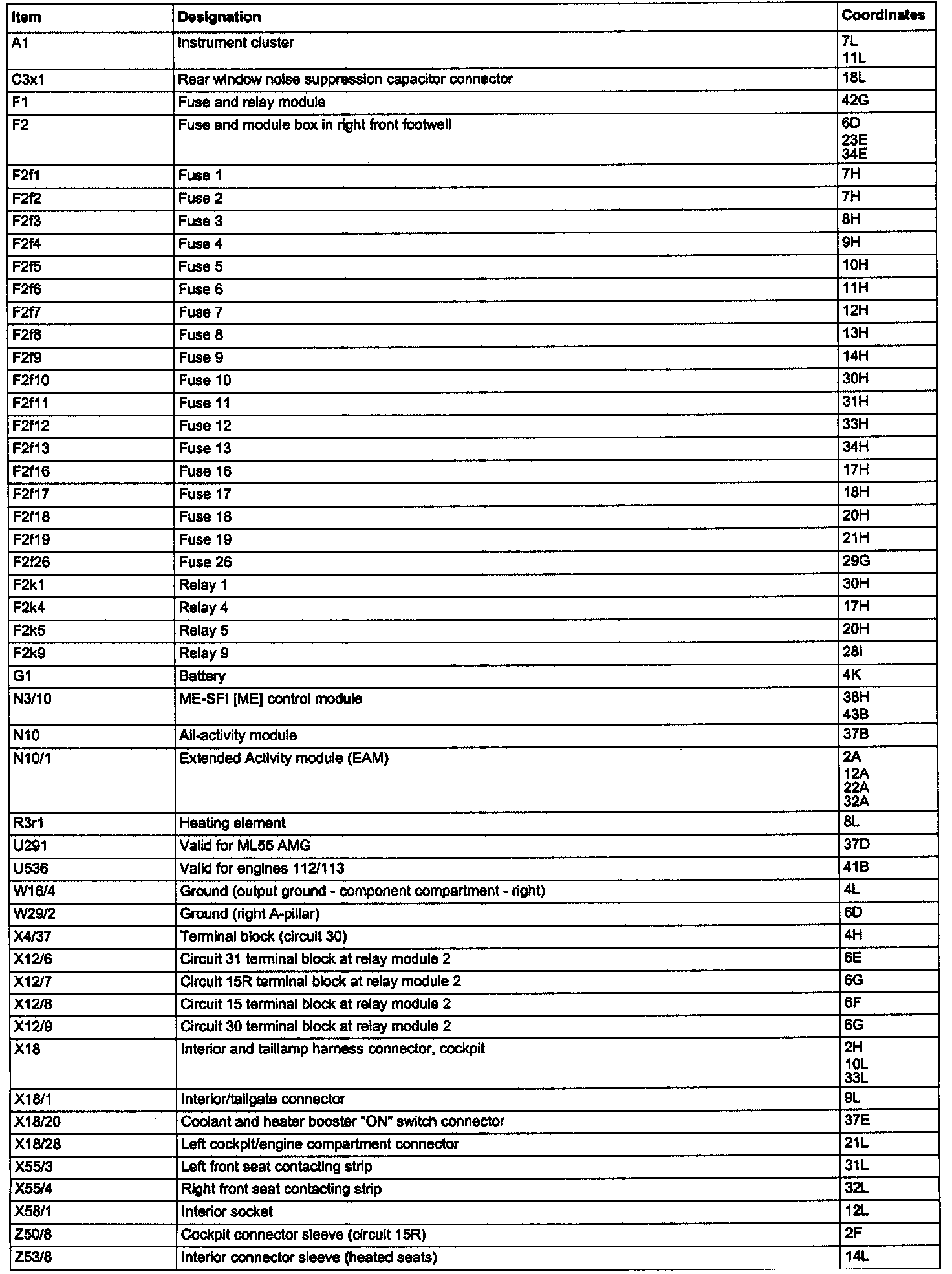

Component Description/Coordinates, A1 - Z53/8:
