ME-SFI Fuel Injection/Ignition System PE07.61-U-2000S

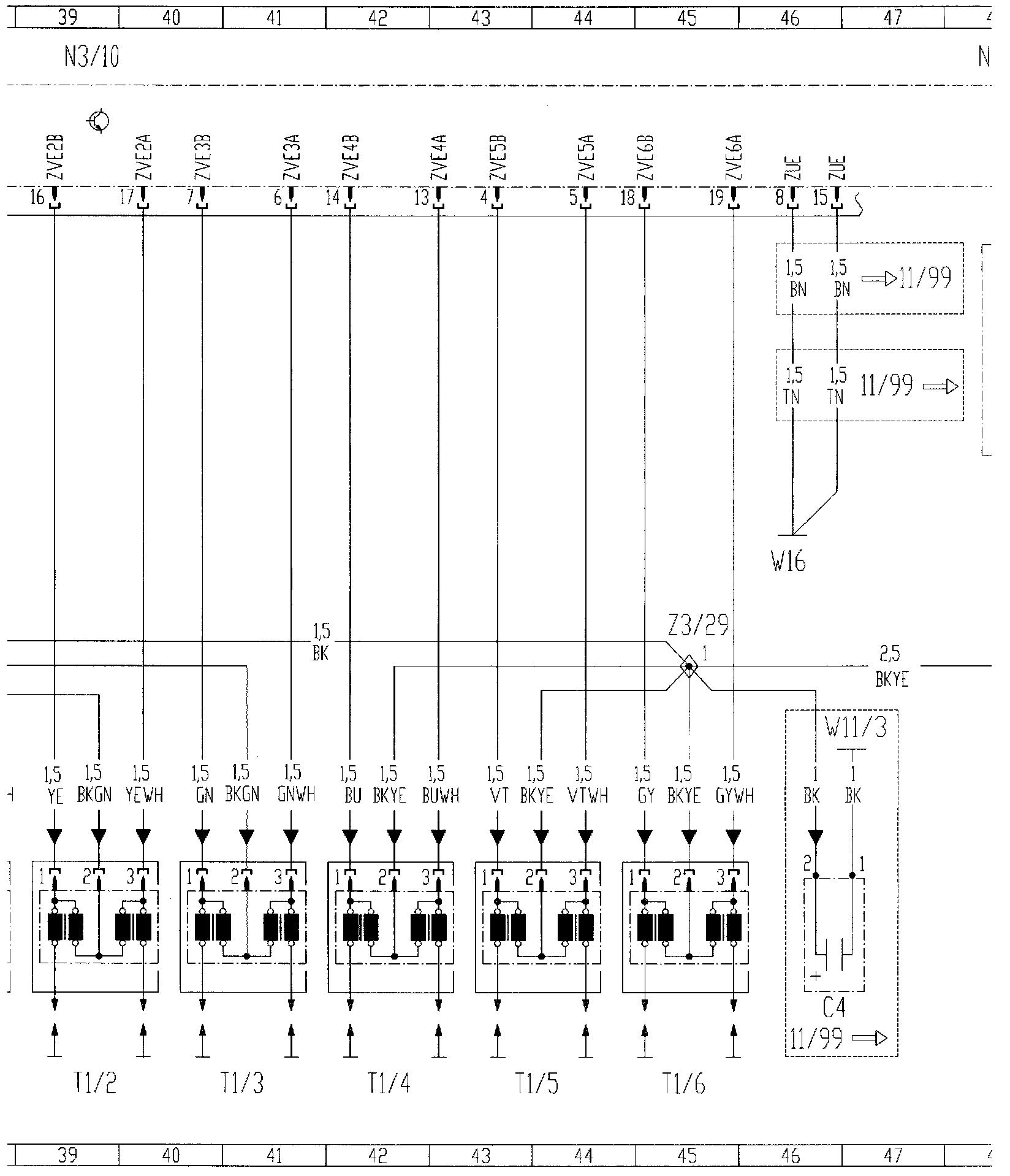

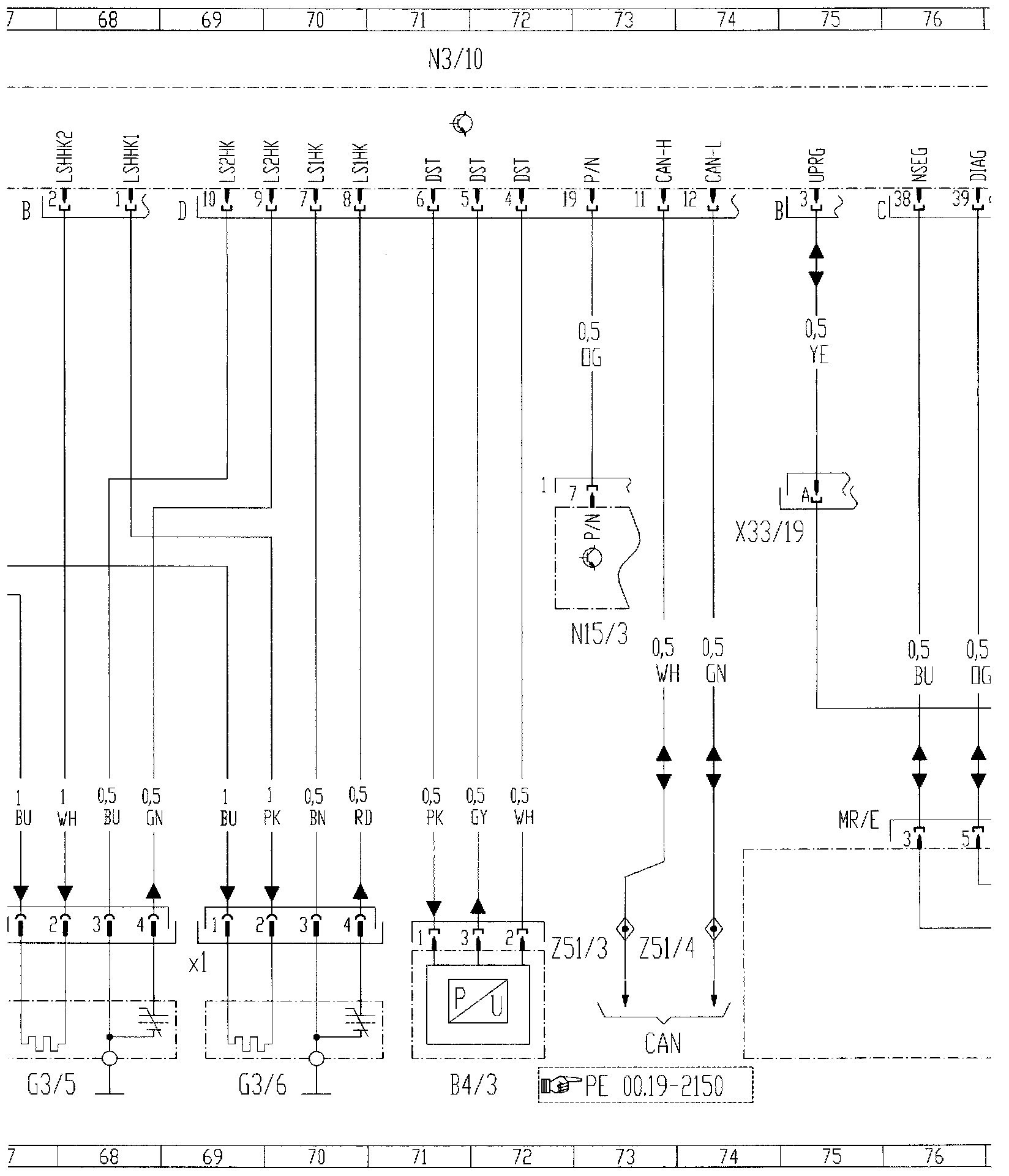

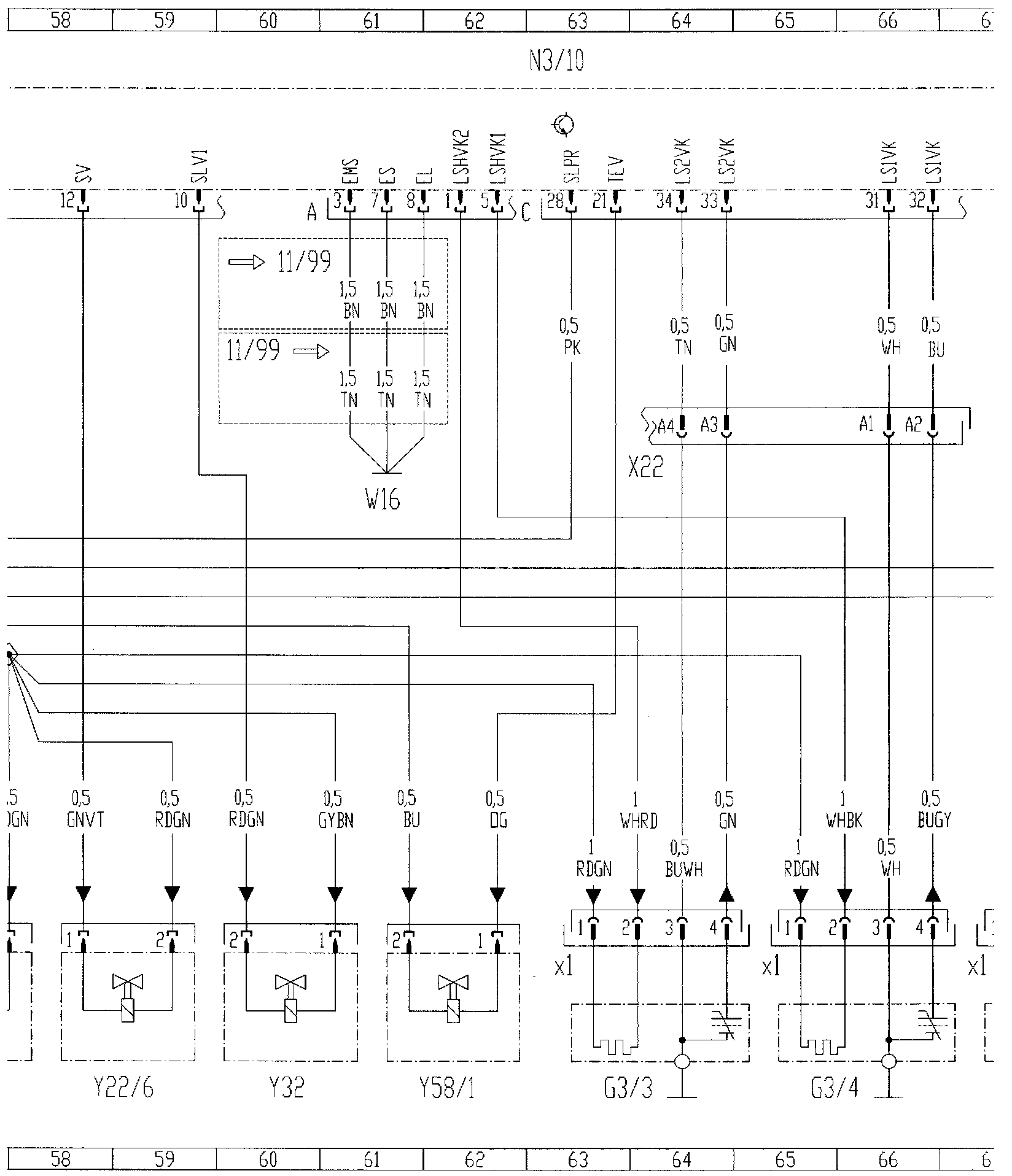

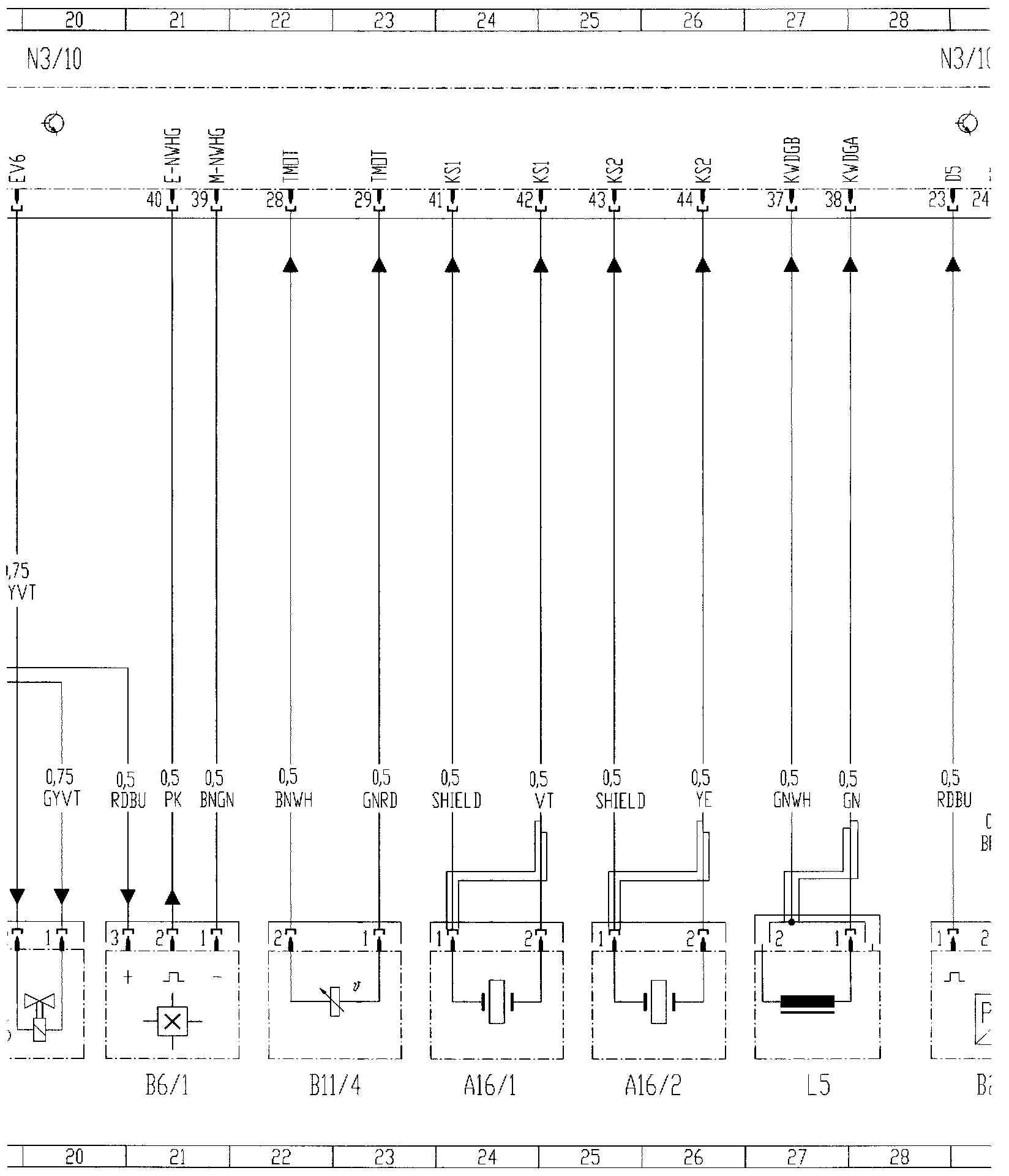

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Diagram, Part 6:

Diagram, Part 7:

Diagram, Part 8:

Diagram, Part 9:

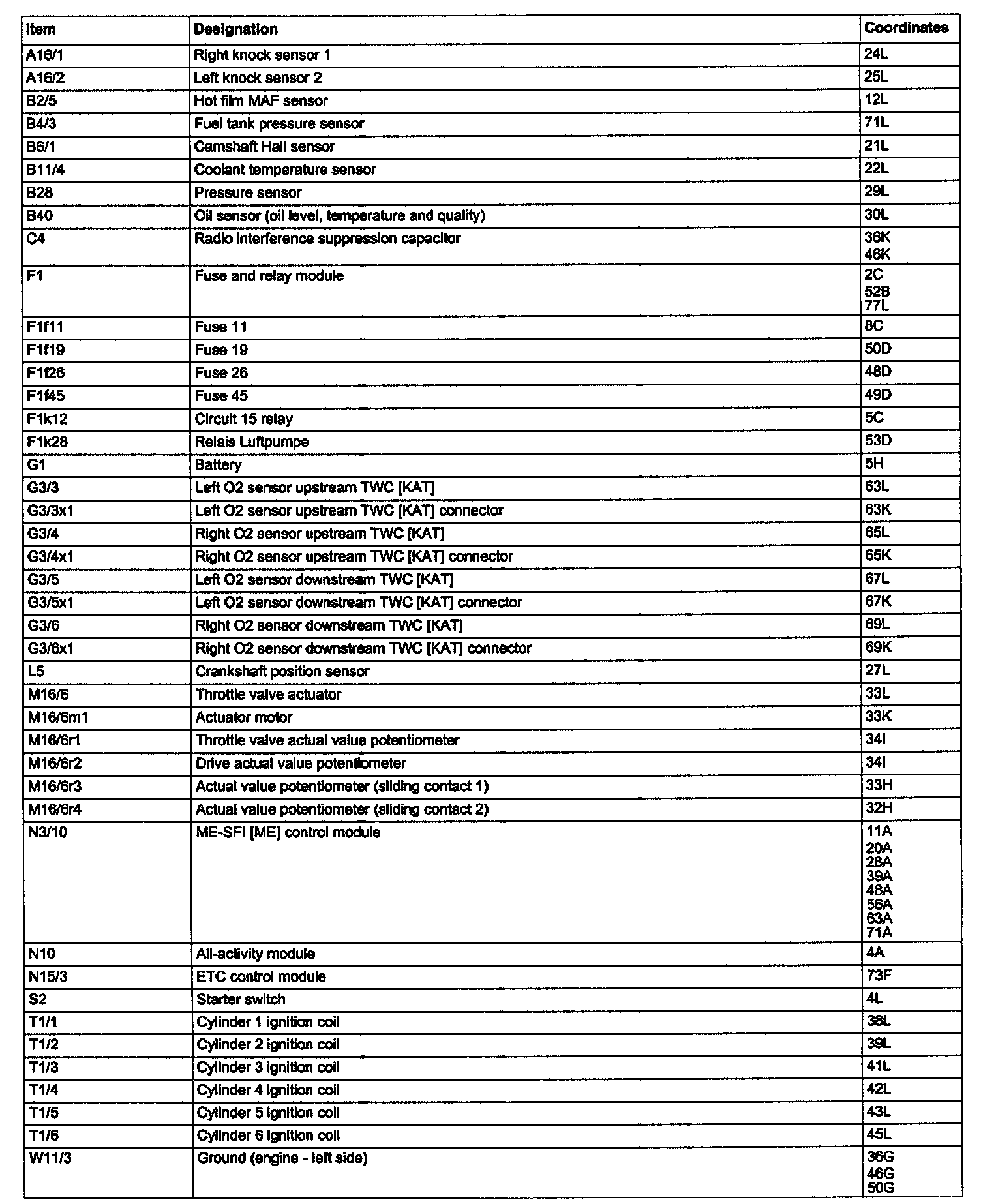

Component Description/Coordinates, A16/1 - W11/3:

Component Description/Coordinates, W16 - Z51/10:
