ME-SFI Fuel Injection/Ignition System PE07.61-U-2000W
ME-SFI Fuel Injection & Ignition System PE07.61-U-2000W
- Engine Compartment/Floor Assembly

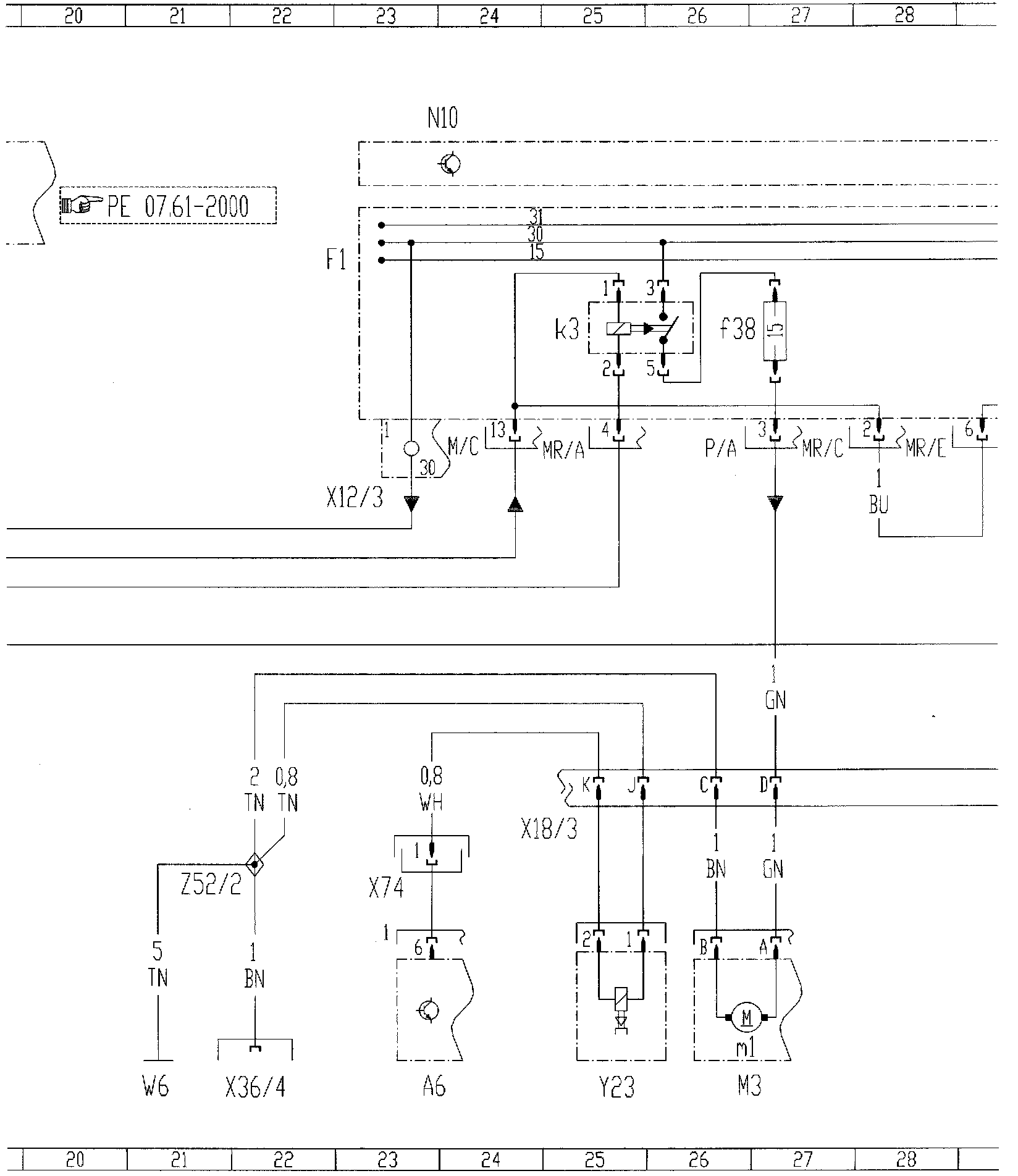

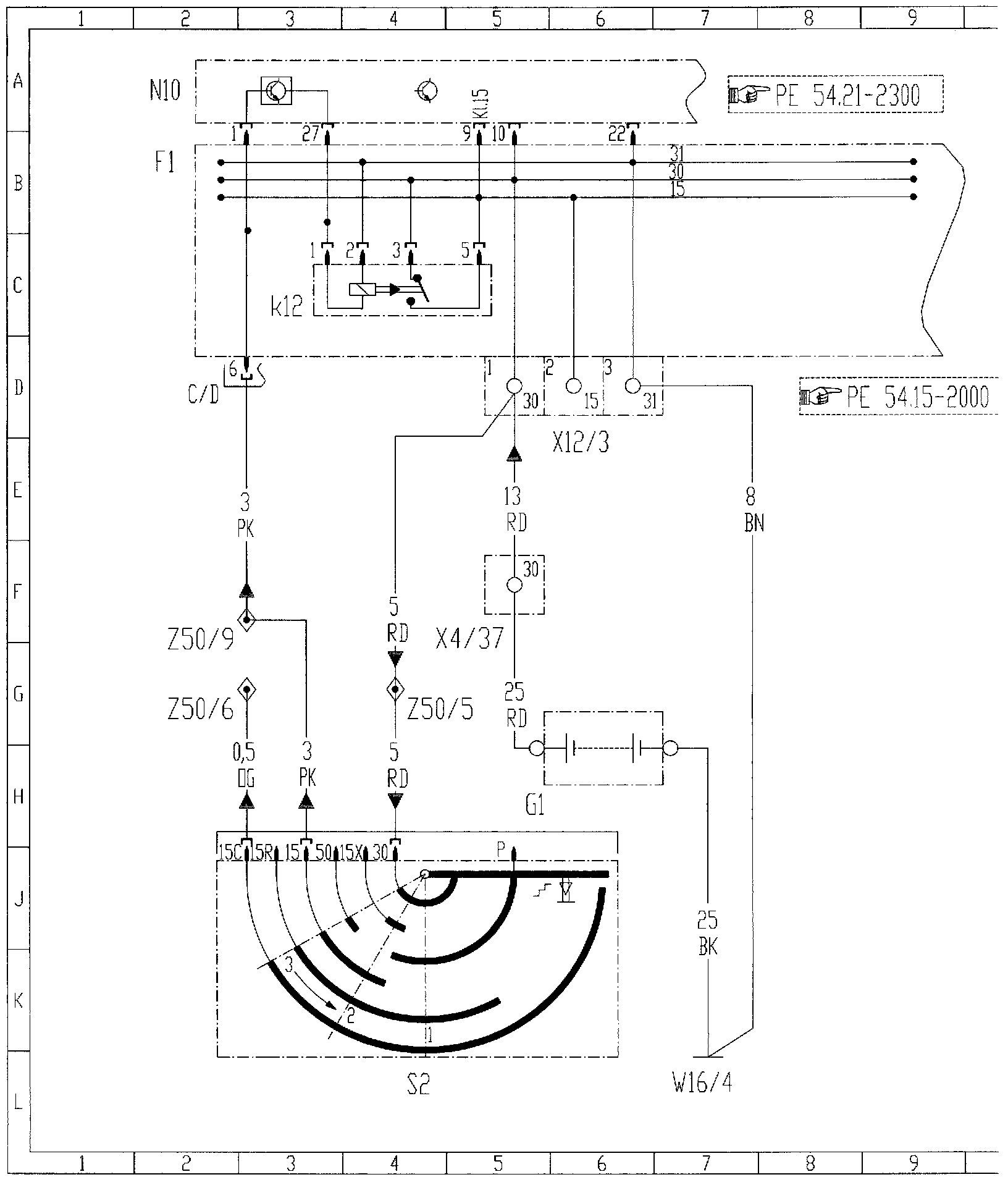

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:

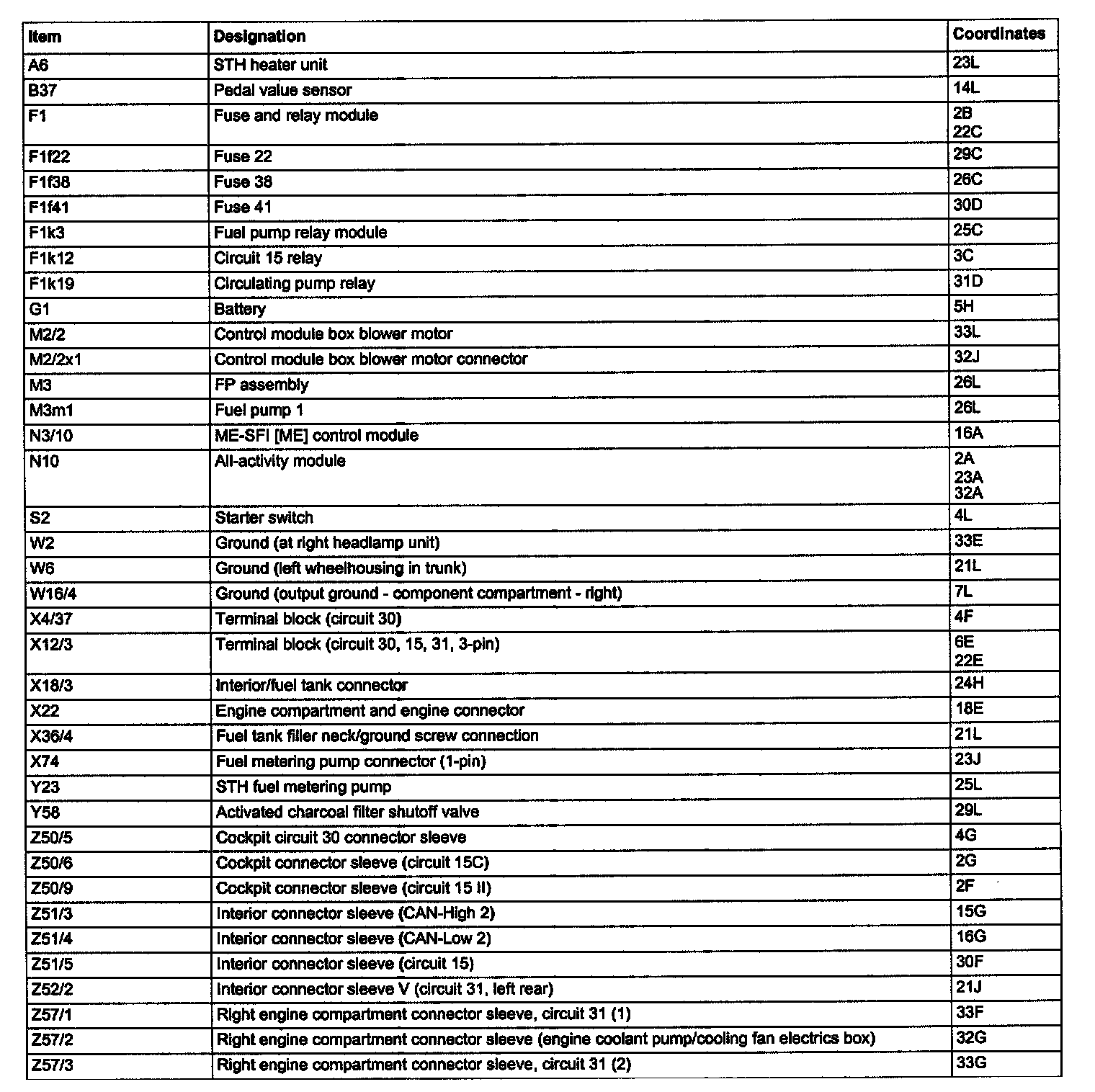

Component Description/Coordinates, A6 - Z57/3:
