Evaporative Emissions System: Diagrams

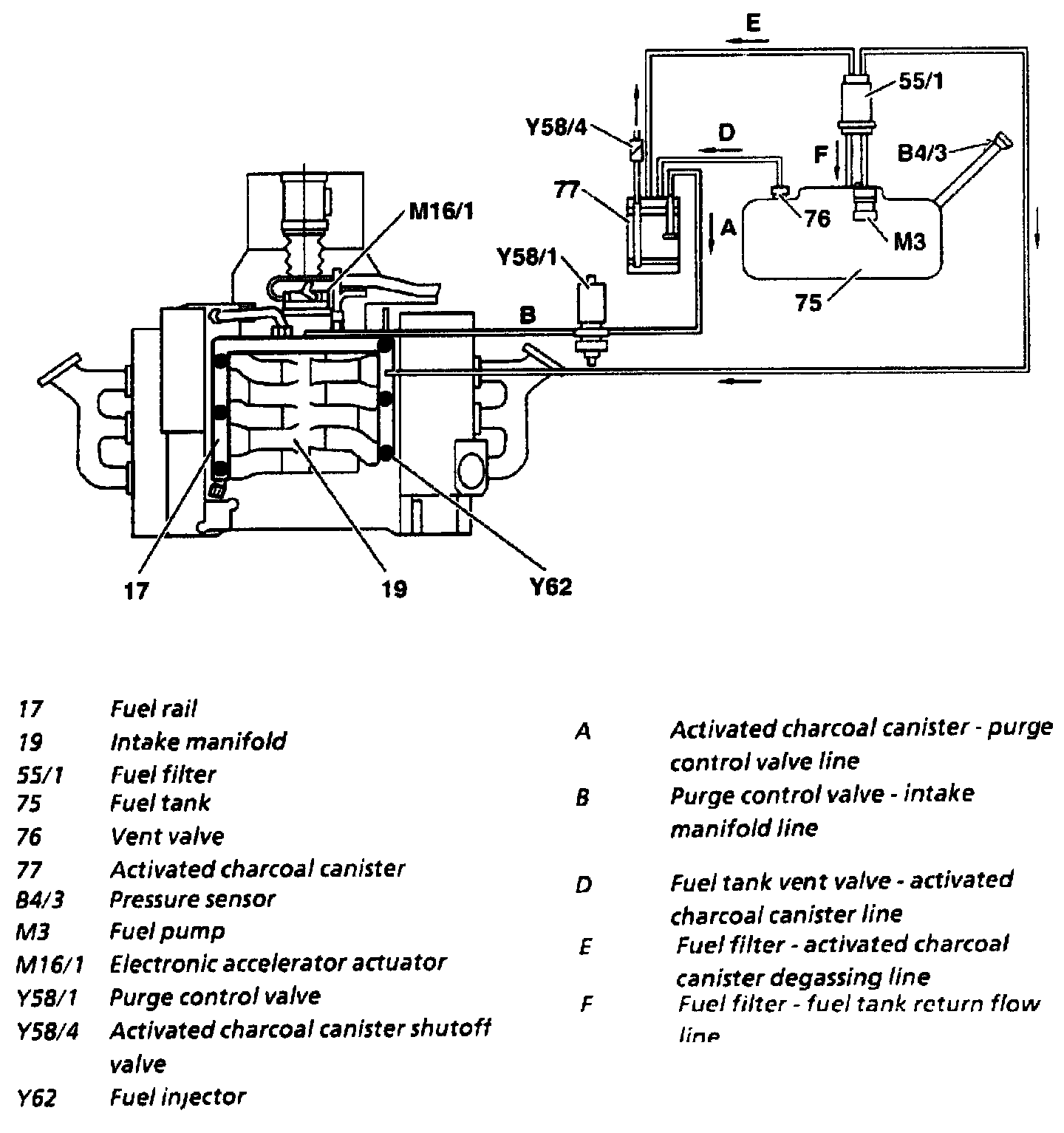

Shown on M112
Connection diagram of evaporative emission control system engine 112 except (USA) in model 163
