Airbag, Emergency Tensioning Retractor (ETR) PE91.00-U-2000E
Airbag (AB), Emergency Tensioning Retractor (ETR) PE91.00-U-2000E
- Up to 11/99

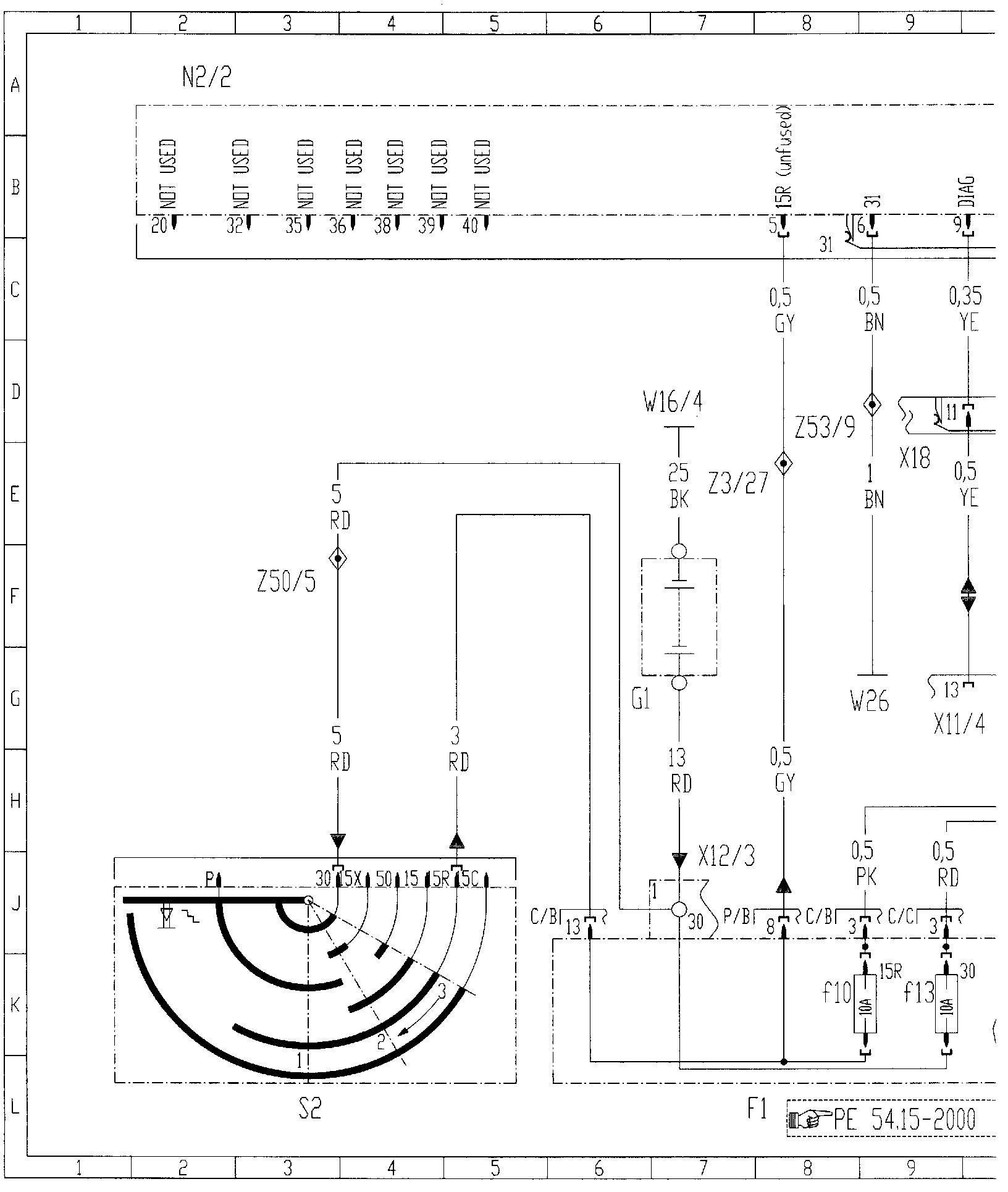

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:
Diagram, Part 5:

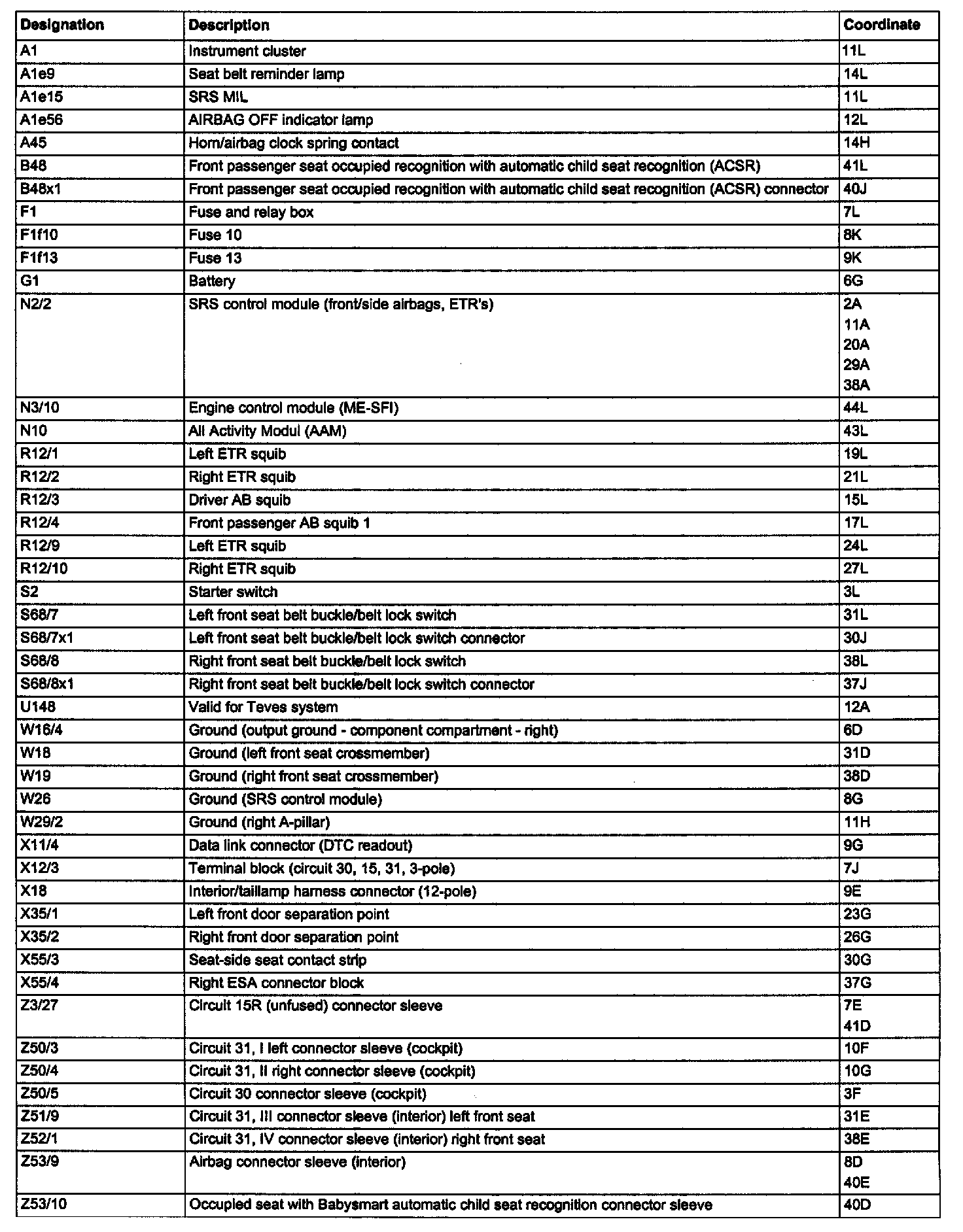

Component Description/Coordinates, A1 - Z53/10:
