Mercedes Benz Truck
>>
2000
>>
ML 320 (163.154) V6-3.2L (112.942)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>

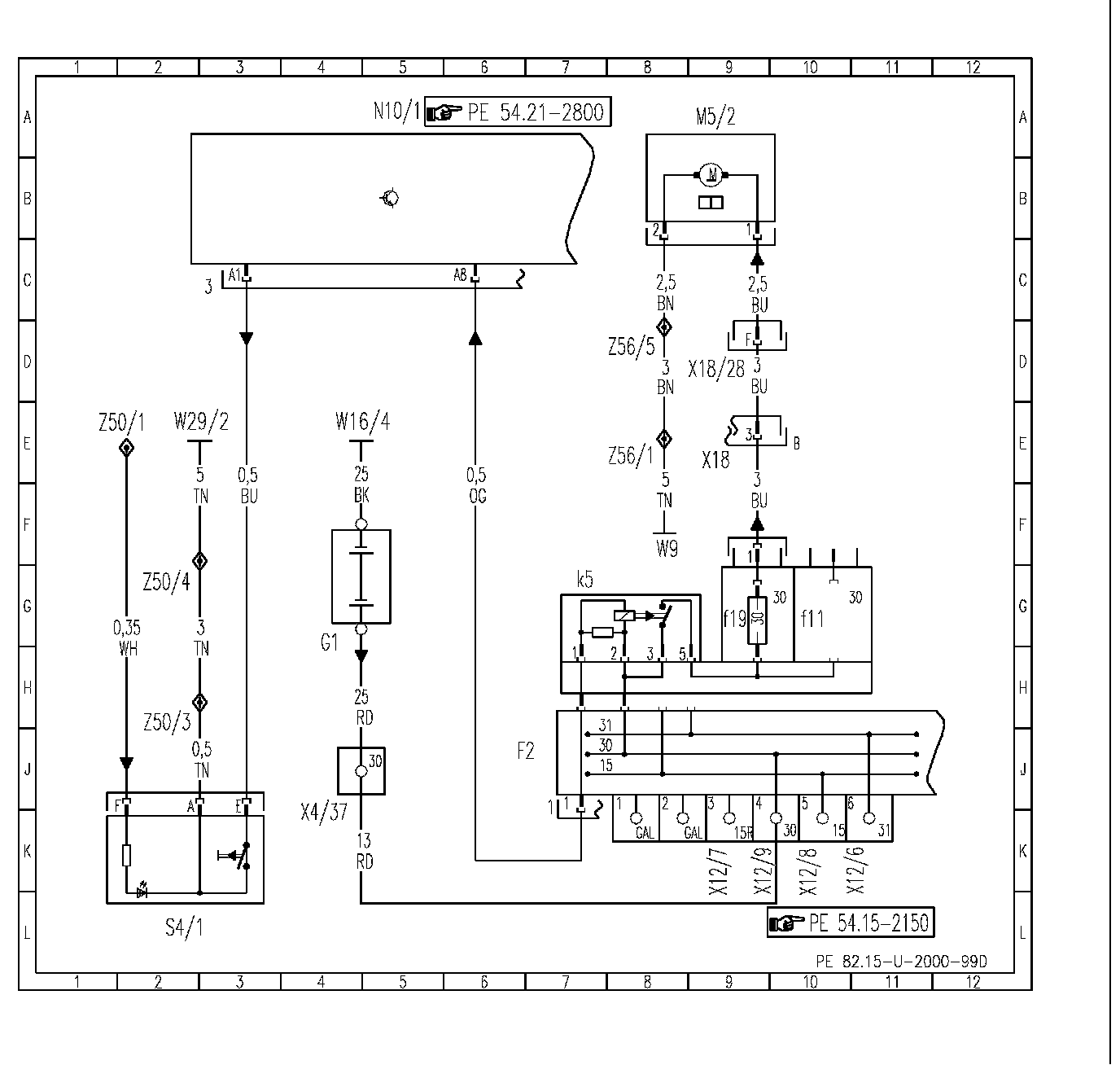

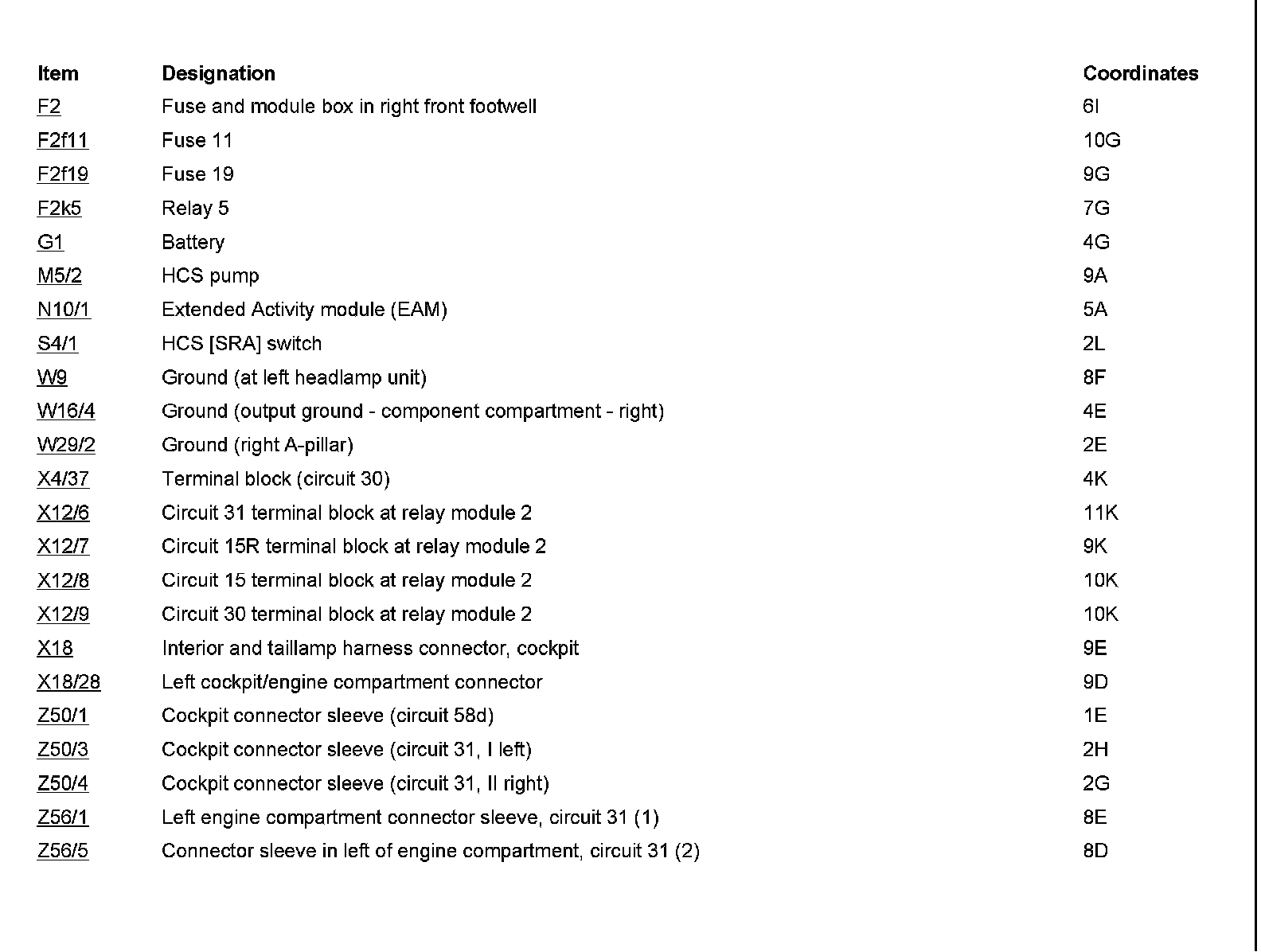

Headlamp Cleaning System (HCS) PE82.15-U-2000D
Headlamp Cleaning System (HCS) PE82.15-U-2000D
Headlamp Cleaning System (HCS) PE82.15-U-2000D
