Trip Computer: Service and Repair

Remove, Install Trip Computer












Remove/Install
1 Ensure that the ignition key is in position "0".

NOTE: In order to prevent error codes.

2 Remove overhead control panel (2).

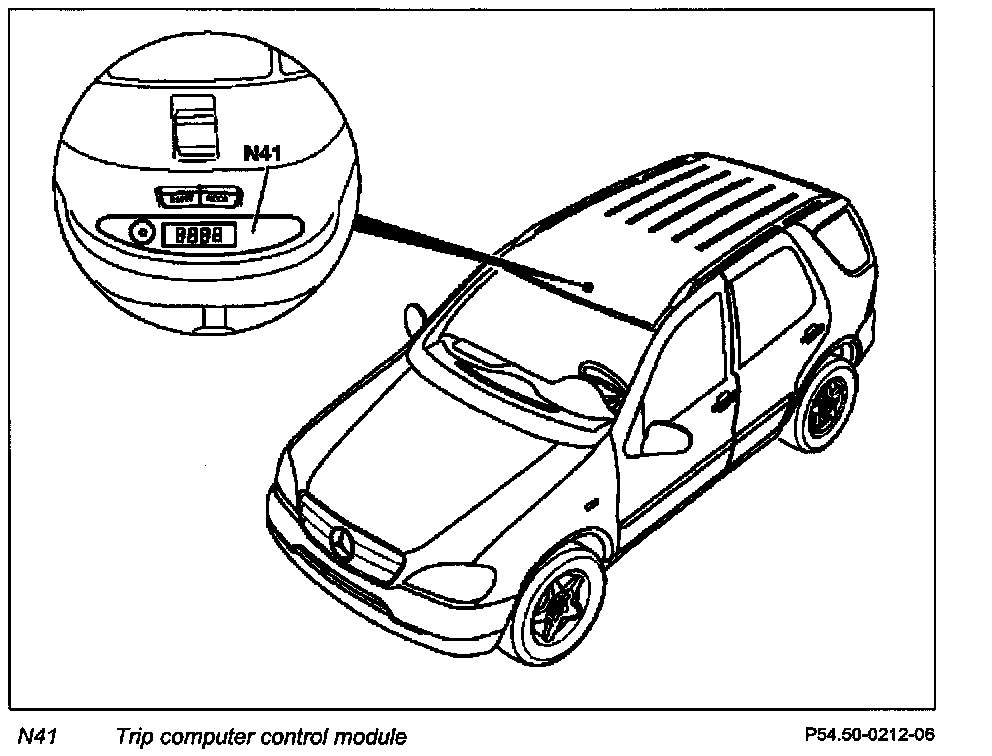

3 Unscrew trip computer control module (N41) from overhead control panel (2).

NOTE: Unscrew screws (1) from control module

4 Detach connector (3) from trip computer control module (N41).
5 Install in the reverse order
6 Check that trip computer functions correctly.
