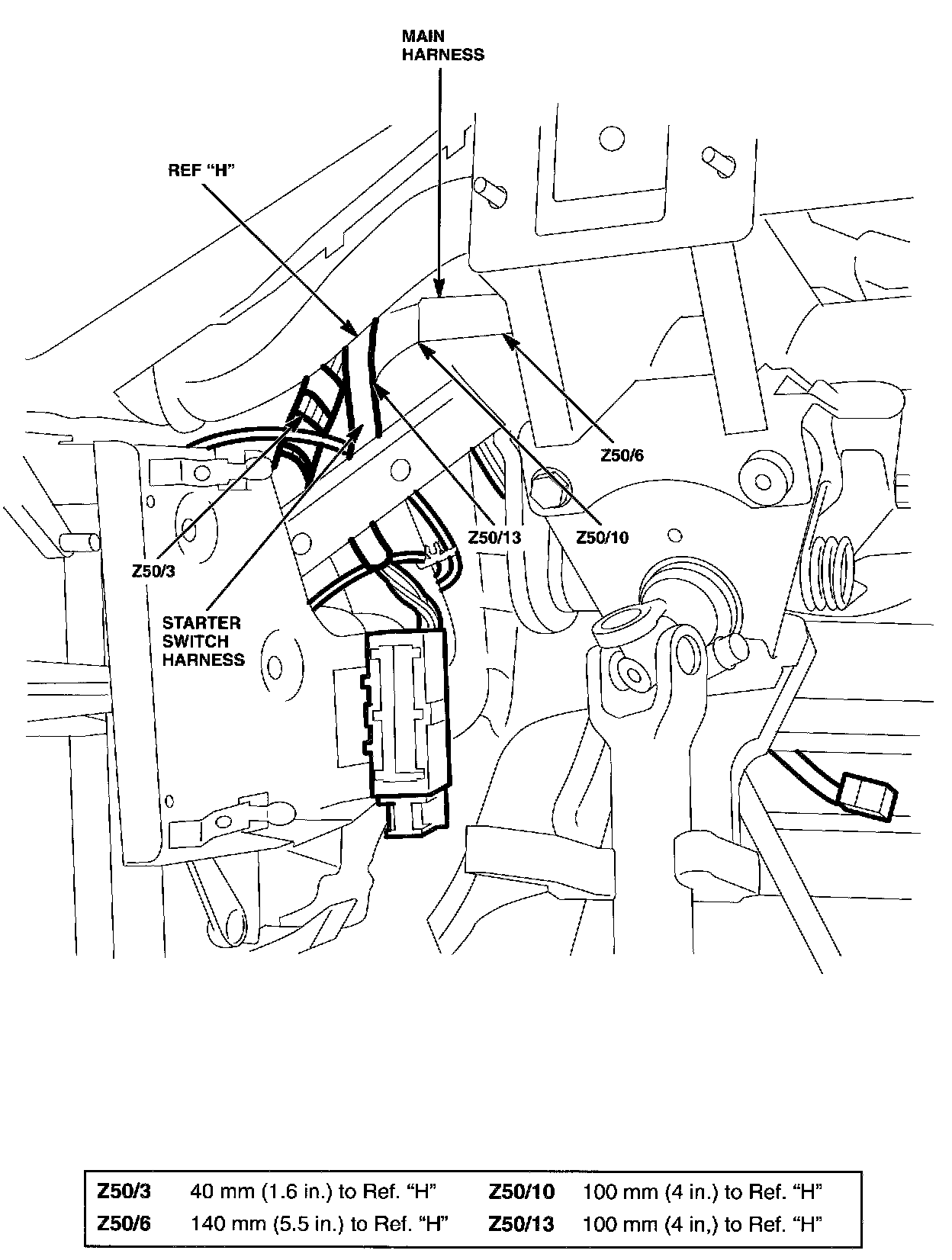

Figure 10 - Left Side of I/P (View From Rear of Cockpit)
Figure 10 - Left Side of I/P (View From Rear of Cockpit)
