Mercedes Benz Truck
>>
2003
>>
ML 350 (163.157) V6-3.7L (112.970)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

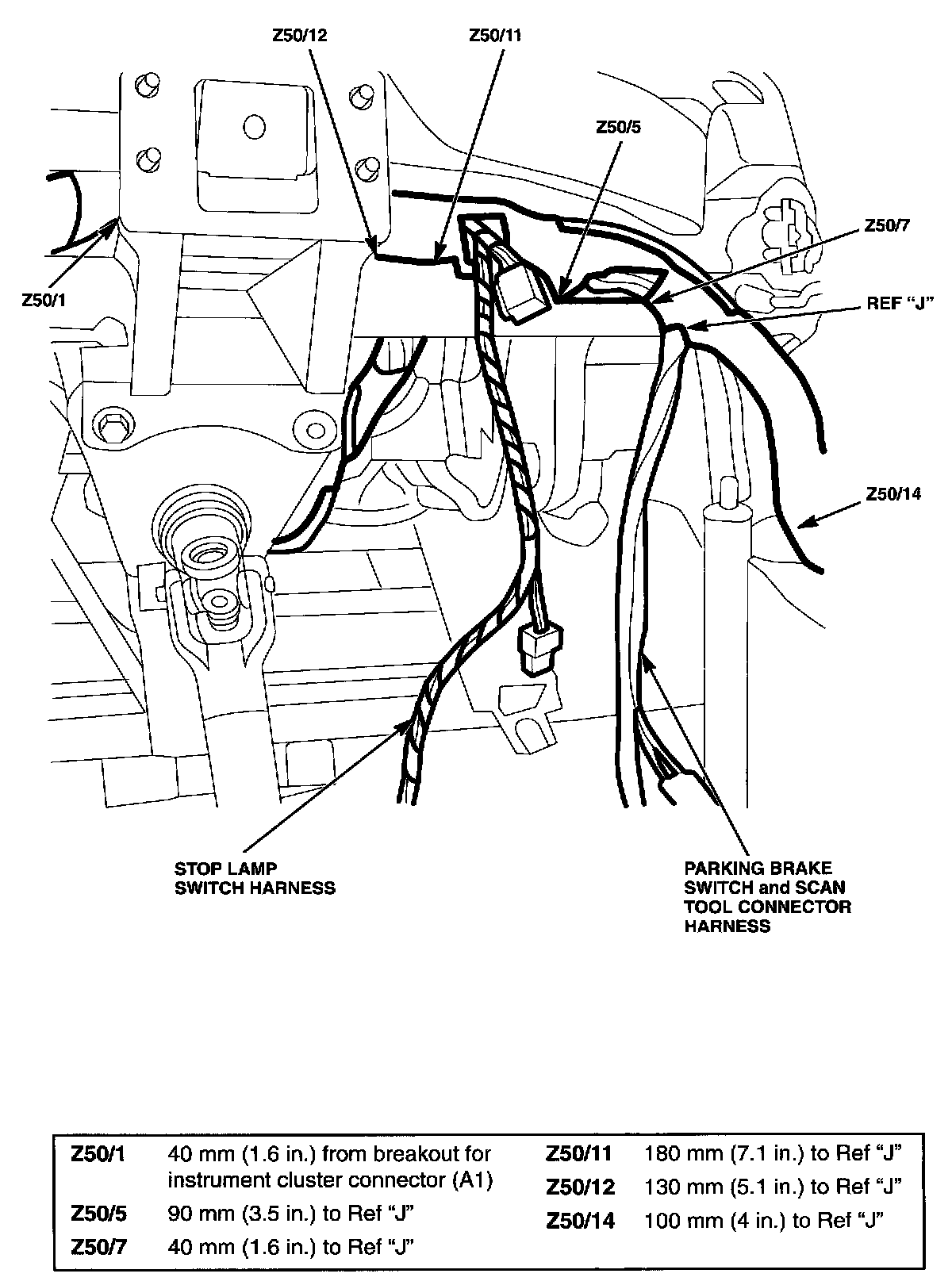

Figure 11 - Right Side of I/P (View From Rear of Cockpit)
Figure 11 - Right Side of I/P (View From Rear of Cockpit)
