Tail Lamp: Service and Repair

Remove/Install Side Wall Taillamp







Remove/Install

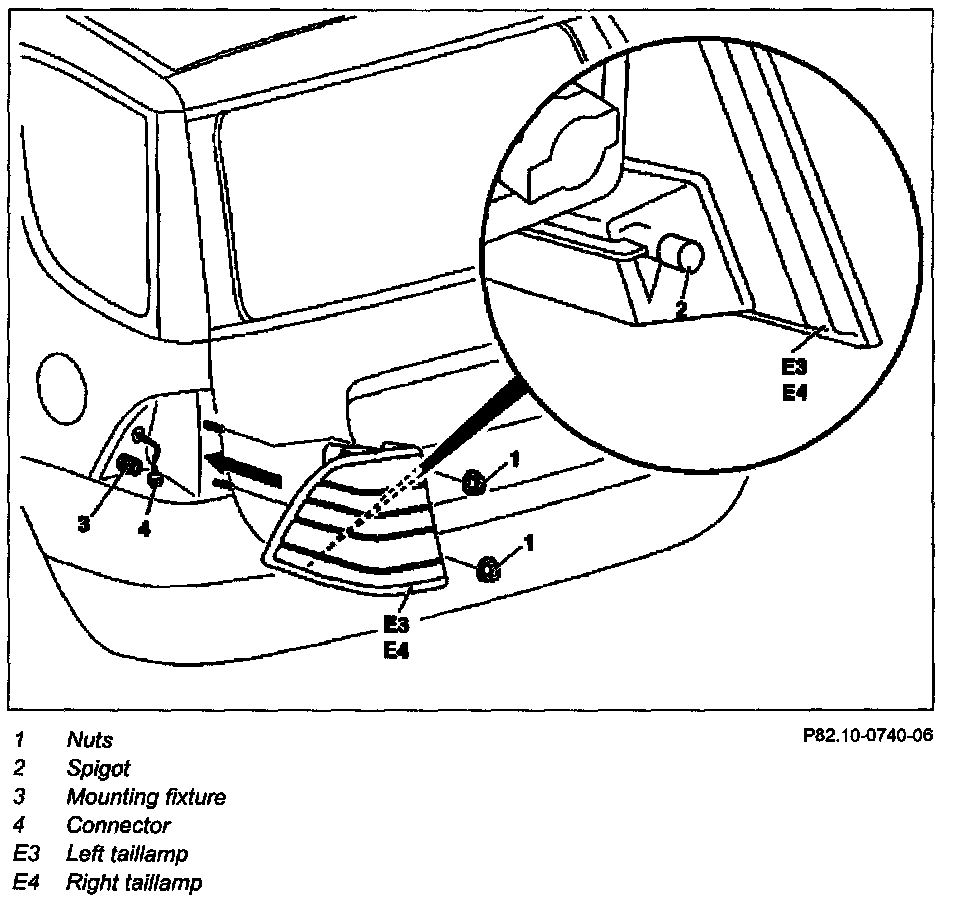

1 Open rear flap
2 Unscrew nuts (1)
3 Pull back left tail lamp (E3) or right tail lamp (E4)

NOTE: Installation: Insert spigot (2) in the support (3).

4 Unplug connector (4)
5 Take out tail lamp

6.1 Install auxiliary wiring harness

NOTE: Only if the tail lamp is replaced. Only on USA version vehicles, code 494a and as of VIN A289565 up to A371934.

7 Install in the reverse order
8 Perform function check
