Body - Wind Noise From Door Mirrors
Date: March 16, 2004Order No.: T-B-88.70/35
Supersedes:
Group: 88
SUBJECT:
Model 163.154/157/174/175, VIN Range A289560 up to A486952 Wind Noise from Outside Mirror
If you receive customer reports in the above model vehicles of a wind noise complaint coming from either the left or right outside mirror, this may be caused by insufficient seal pressure between the mirror mount and the door. In this case, install an additional foam seal only on the side with the complaint as per the below procedure.
1. Remove outside rear view mirror (Figure 1, 1) only on the side with the wind noise complaint. Refer to WIS Document AR88.70-P-9000GH.
2. Install foam (Figure 1, 2) onto base of mirror mount around the wiring harness.
3. Reinstall outside rear view mirror (Figure 1, 1). Refer to WIS Document AR88.70-P-9000GH.
Note:
Replace foam on inside of door around hole where mirror wiring harness passes through.

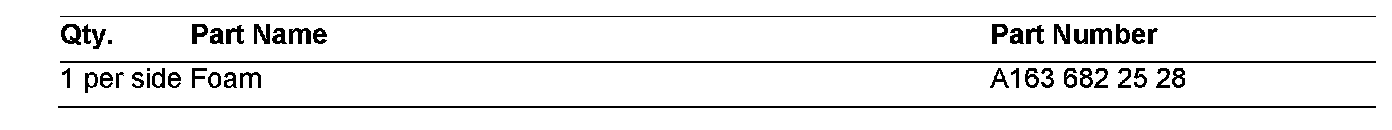

Parts Information

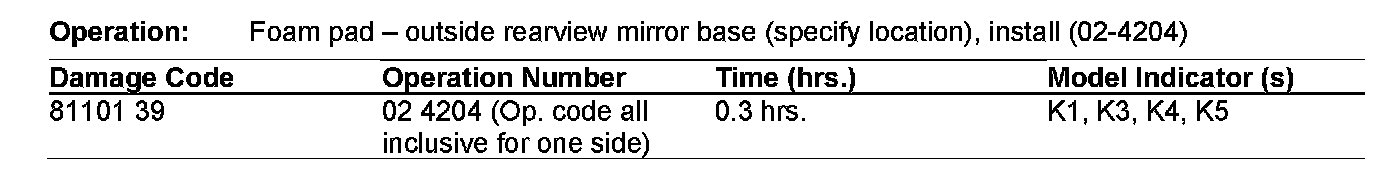

In Case of Warranty
