Cell Phone - V60s Locks Up
Date: October 1, 2004Order No.: T-B-82.70/400
Supersedes:
Group: 82
SUBJECT:
Model 163.157/174/175
Model 463.246/249/271
Model Year 2003 and 2004
Cellular Telephone: V60s Locks Up
Note:
For Information Only
If you receive customer reports in the above model vehicles where the V60s cellular telephone exhibits the below symptoms have the service advisor verify and replace the phone with the following part number BQ 682 0949 V6Os Cellular Telephone Spare.
1. Phone will not respond to any button presses (lock-up)
2. Head Unit will not switch to Telephone mode when TEL button is pressed

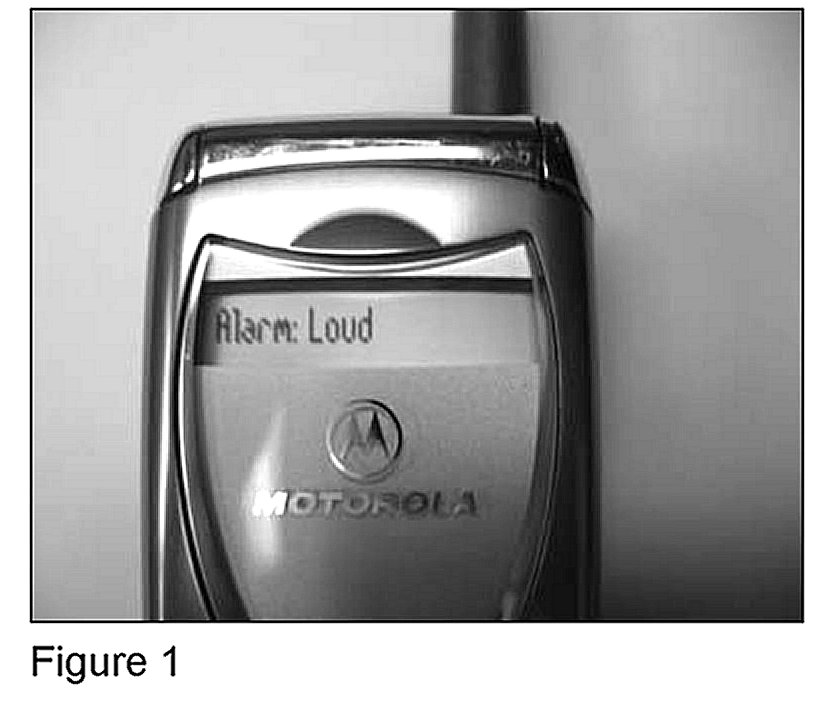

3. Phone displays "Alarm: Loud" when flip is closed (see Figure 1)
4. Phone can not be turned OFF, either through Head Unit or on handset
5. Removing and reinserting battery is the only way to fully restore phone function
Parts Information
