Interior - Rear Seat Cable Replacement
Date: July 21, 2003Order No.: T-B-91.12/62a
Supersedes: T-B-91.12/62 dated July 3, 2003
Group: 91
Revision: Damage Code Corrected
SUBJECT:
Model 163.154/172 as of 09/1/99
Model 163.157/174/175 All Model Years
Rear Seat Bowden Cables

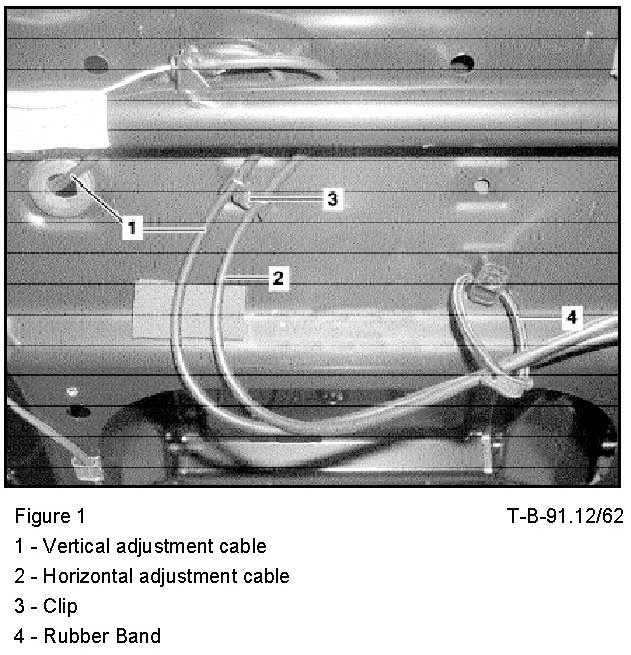

In the above model vehicles, the cables for the 40% rear seat vertical and horizontal adjustment can now be replaced individually. Observe the new routing shown below when replacing seat cables. Connections to the release handles and struts remain the same.

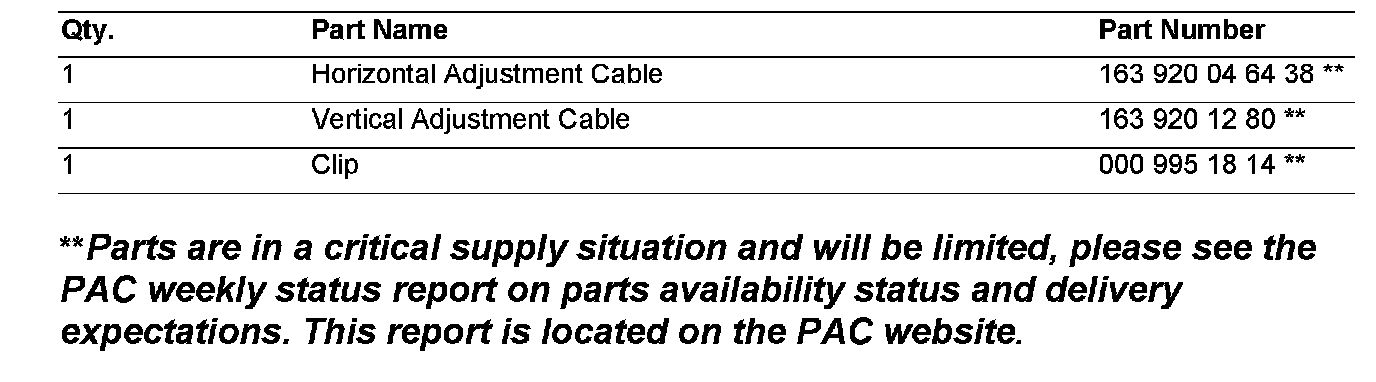

Parts Information

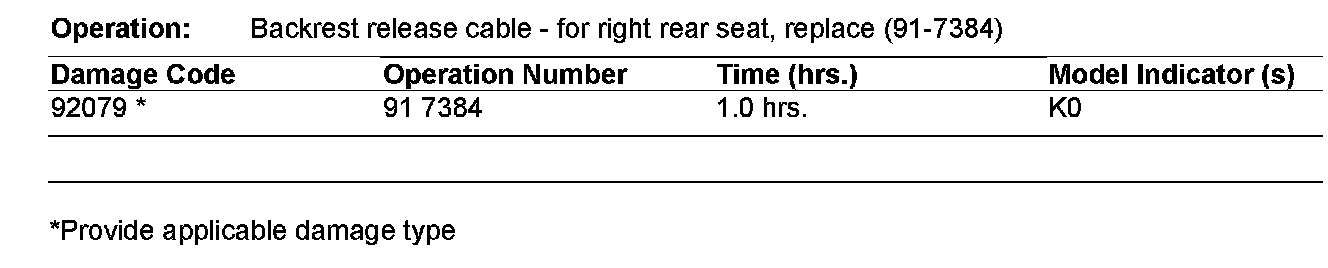

In Case of Warranty
