Lighting - Exterior Light Bulb Replacement Info.

Date: May 20, 2009

Order No.: S-B-82.10/598b

Supersedes: S-B-82.10/598a dated Oct. 30, 2008

Group: 82

Revision History

Revision Date Purpose

b 5/20/09 Added Notes for 203/209 within Remedy Table

a 10/30/08 Parts Quantities Corrected to Match Information in Table / Note Added

- 10/24/07 Initial issue

SUBJECT:
All Model 163, 164, 171, 203, 209, 211, 215, 219, 220, 230 and 251 Vehicles

Replacing Exterior Light Bulbs

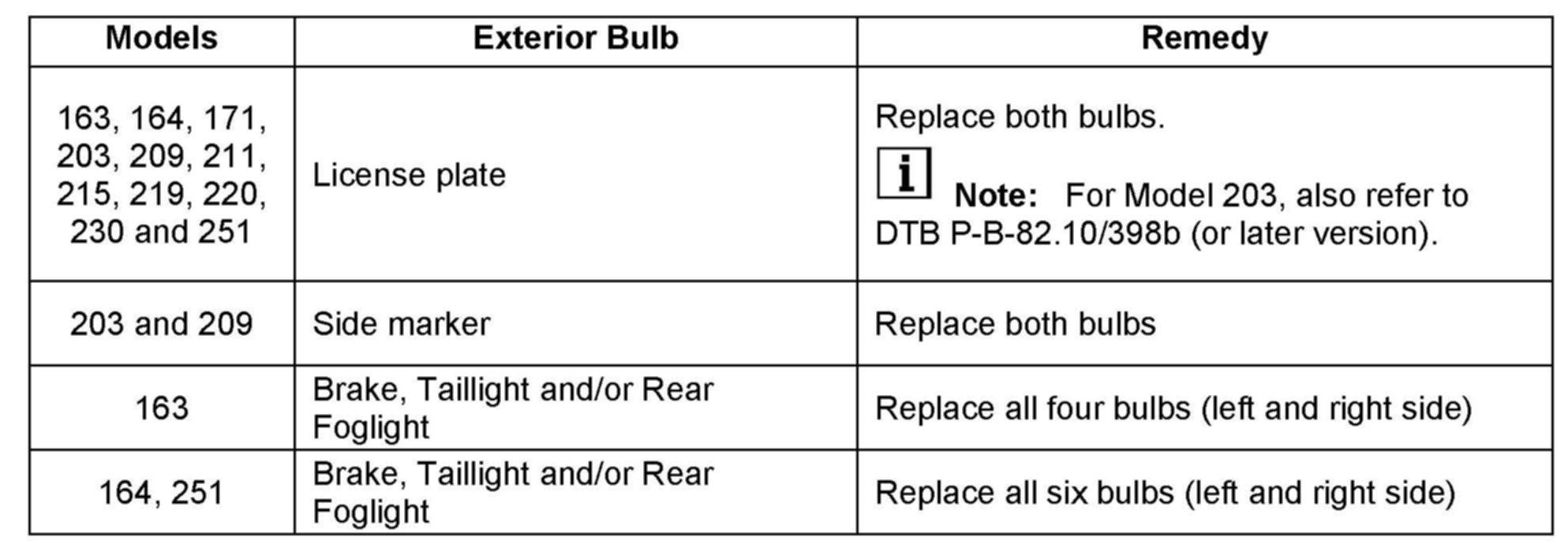

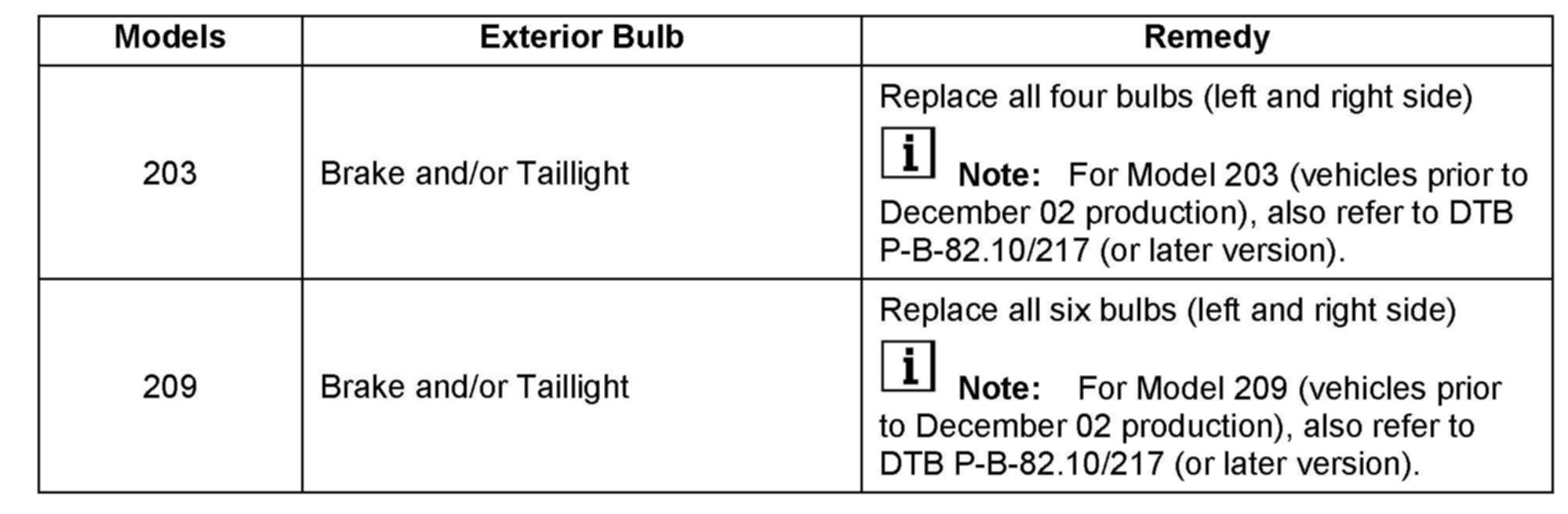

If you receive customer reports in the above model vehicles of exterior bulbs requiring replacement, only long life bulbs are to be used as replacement bulbs. Refer to the below applicable condition / remedy.

Note:
In cases where a new tail lamp housing (which does not have long-life bulbs) is being installed, replace the bulbs with long life bulbs.

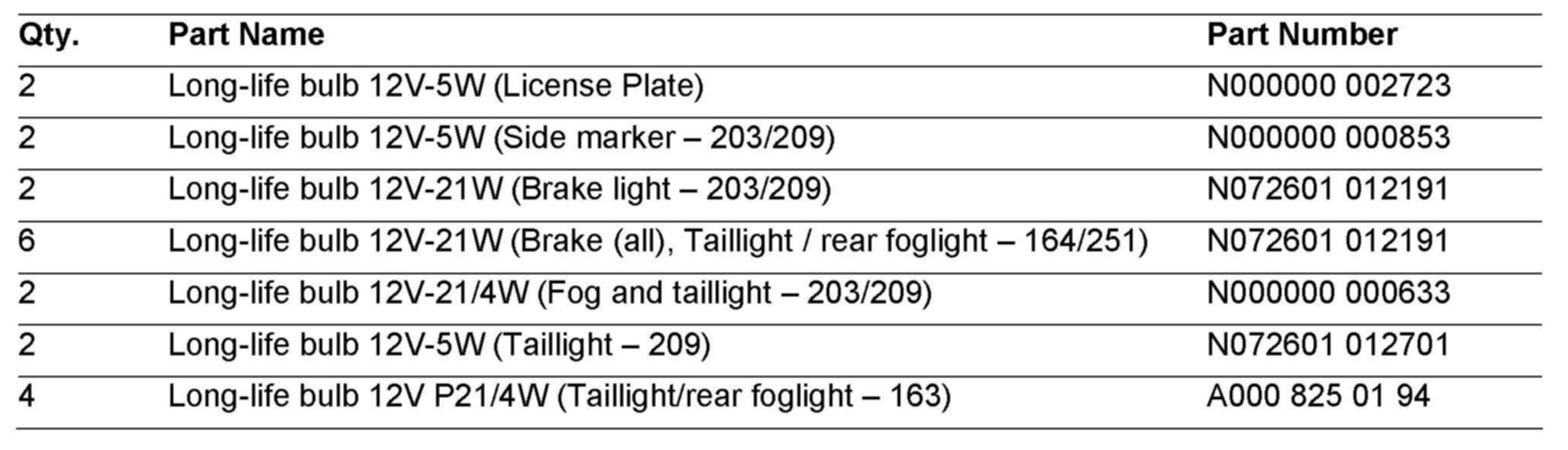

Parts Information

Note:

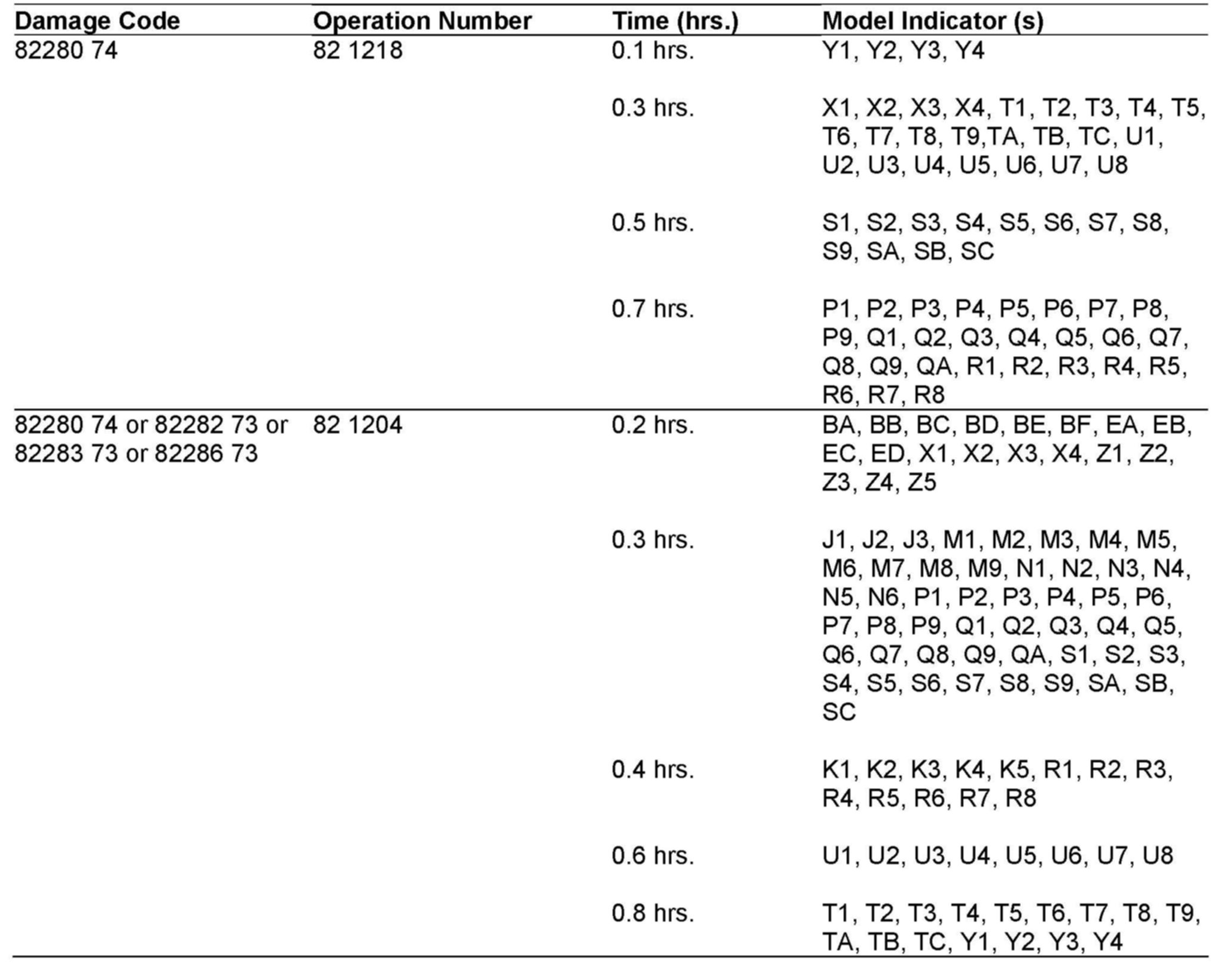

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 30, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.








In Case of Warranty, use the table above.
