GF82.85-P-3016GI Information Service, Function
GF82.85-P-3016GI Information service, function
- with CODE (522) Modular control system (MCS) radio USA
- with CODE (357) Navigation system - additional unit
- with CODE (818b) Single CD play - additional unit
- with CODE (491) U.S. version

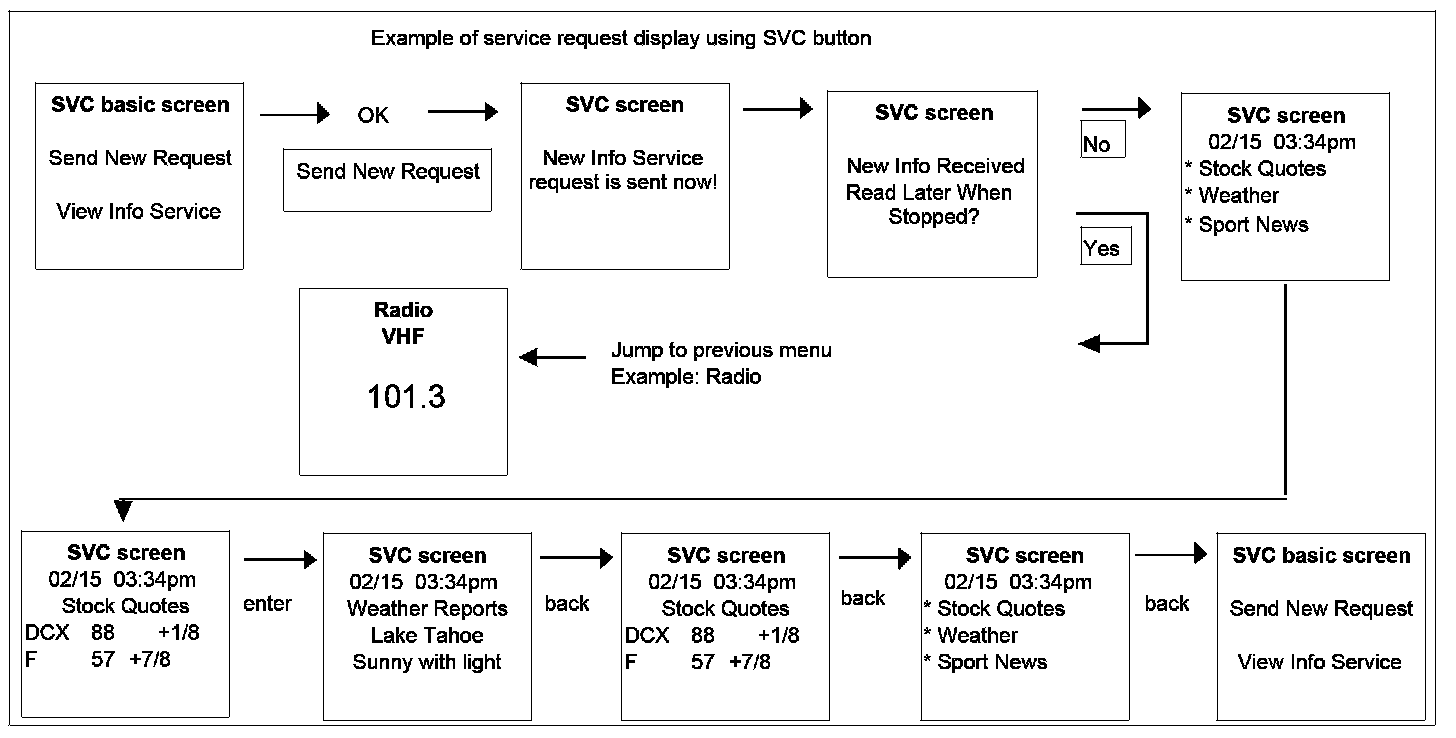

Service request procedure
It is possible to change to the service mode with the button " SVC" on the radio and navigation module (A2/56).
A new request is selected in the basic screen " SVC":
- "Send New Request for Info Service "
or optionally:
- "View Info Service of ... "
allows a previous data record to be viewed.
Selection is possible with the knob/pushbutton on the radio and navigation module (A2/56)and confirmed by pressing. If " Send New Request for Info Service " is selected, the radio and navigation module (A2/56) transmits this request via the digital data bus (D2B) to the E-call control module (A35/8) and CTEL transmitter/receiver (A35). It transmits the request to the service provider via the present telephone network.
The request is processed on the Internet on the basis of the personal information profile and sent to the vehicle via the telephone network.
A tone and the message:" New Info Received! " indicates reception to the user.The safety question:" Read Later When Stopped? " with the decision " Yes" or " No" serves for traffic safety.
Selecting: "Yes" leads to a return to the previous menu such as radio, CD, navigation ......
Selecting:"No" lists the news according to the personal interest profile.
The messages can be read in sequence. Pressing the knob/ pushbutton button on the radio and navigation module (A2/56) jumps to the next news item. Turning the knob/pushbutton on the radio and navigation module (A2/56) scrolls the news.
With the " BACK" button on the radio and navigation module (A2/56) it is always possible to jump back to the previous menu.
The information that is received can be read page by page. It is not possible to jump directly to a certain page. The format can be changed by the operator.
