Emergency Contact Button: Service and Repair

Remove/Install Control Module For E-Call Emergency Call System







Remove/Install
1 Remove fuse f8 from fuse and relay module
2 Unscrew screws on front seat console
- Bolt of seating mounting bracket to vehicle floor = 40 Nm

3 Angle front seat back until it rests against the rear bench seat and fasten with outer seat belt

CAUTION: Remove wiring harness for E-call speaker from E-call bracket. Cover the floor covering behind the front seat to avoid contamination.

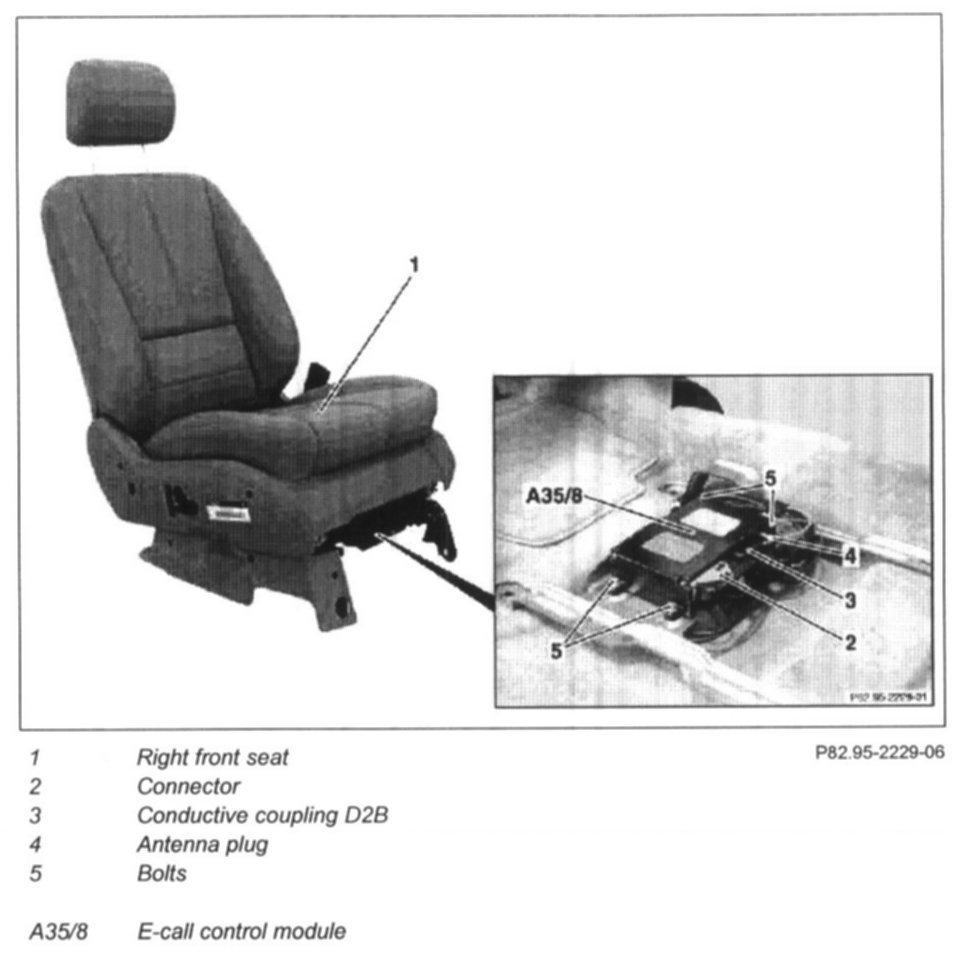

4 Detach connector (2) and antenna plug (4) from the E-call control module (A35/8)
5 Detach conductive coupling D2B (3)

CAUTION: Do not kink or stretch fiber optic cable. Press protective caps on conductive coupling and device connection.

6 Unscrew screws (5)
7 Remove E-call control module (A35/8)
8 Install in the reverse order
