Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Diagrams

Navigation System: Diagrams

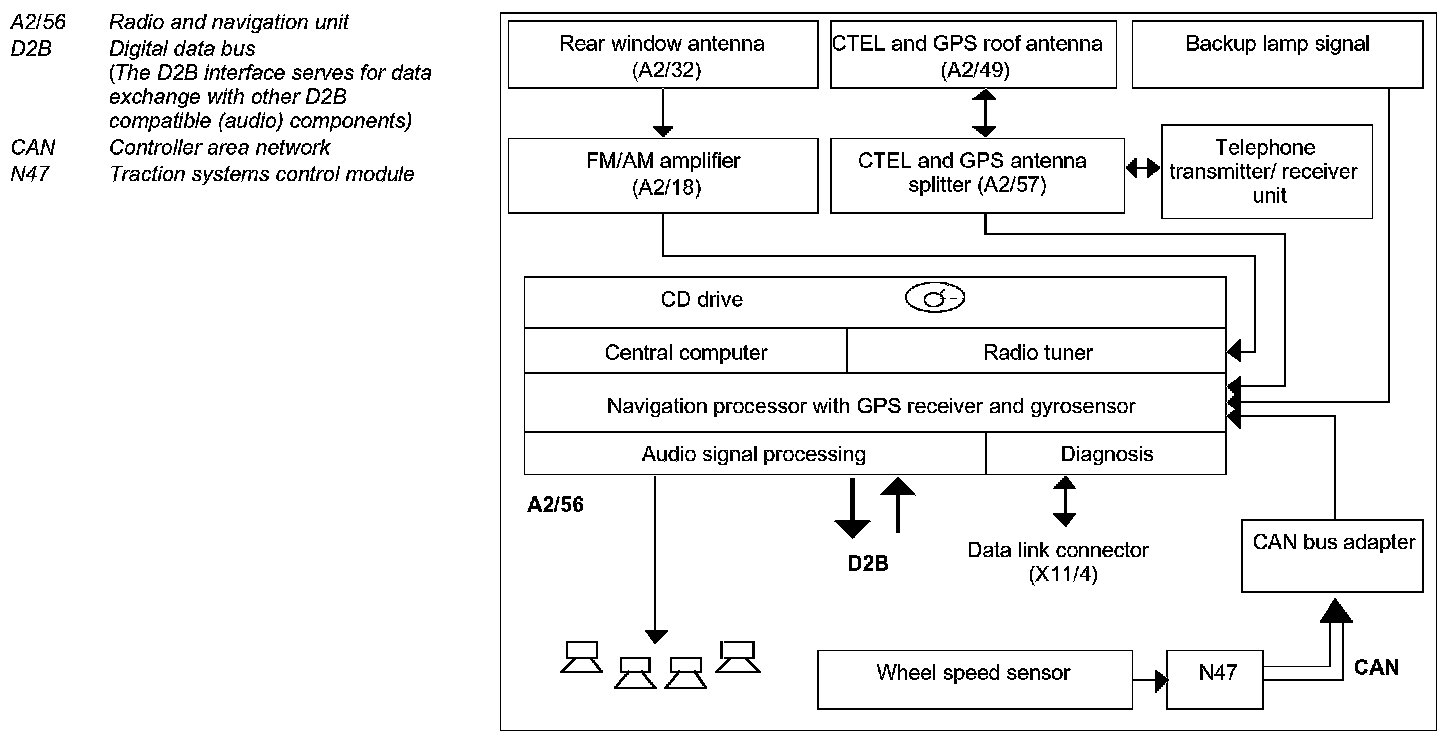

GF82.61-P-0002-02D Audio 30 APS Block Diagram
- with CODE (353) Audio 30 APS
