GF98.00-U-3420A Cathode Dip Priming, Tuscaloosa Plant

GF98.00-U-3420A Cathode Dip Priming, Tuscaloosa Plant

Component Identification:

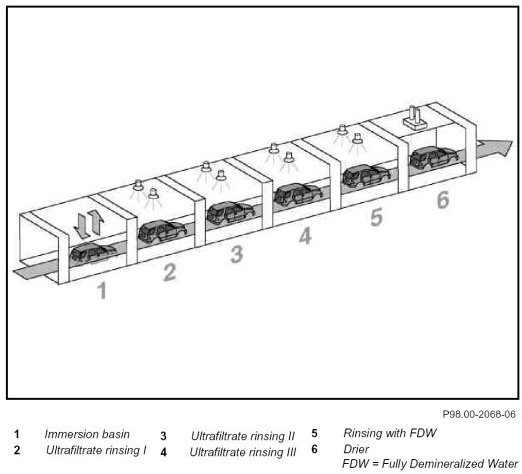

Procedure sequence

Material:
Lead-free, cataphoretic immersion paint, water-based

Processing procedure:
See procedure sequence below

Coating thickness:
inside 12 - 22 m
outside 17 - 24 micro m

Baking conditions:
175 degree C surface temperature, 15 min.

Function:
- Long-term corrosion protection
- Complete coating in hollow cavities
- Good resistance to stone impact in entire paint structure
- Good adhesion for subsequent coating materials.
