Transfer Case
Transfer Case
Transfer Case
PE28.19-U-2000B

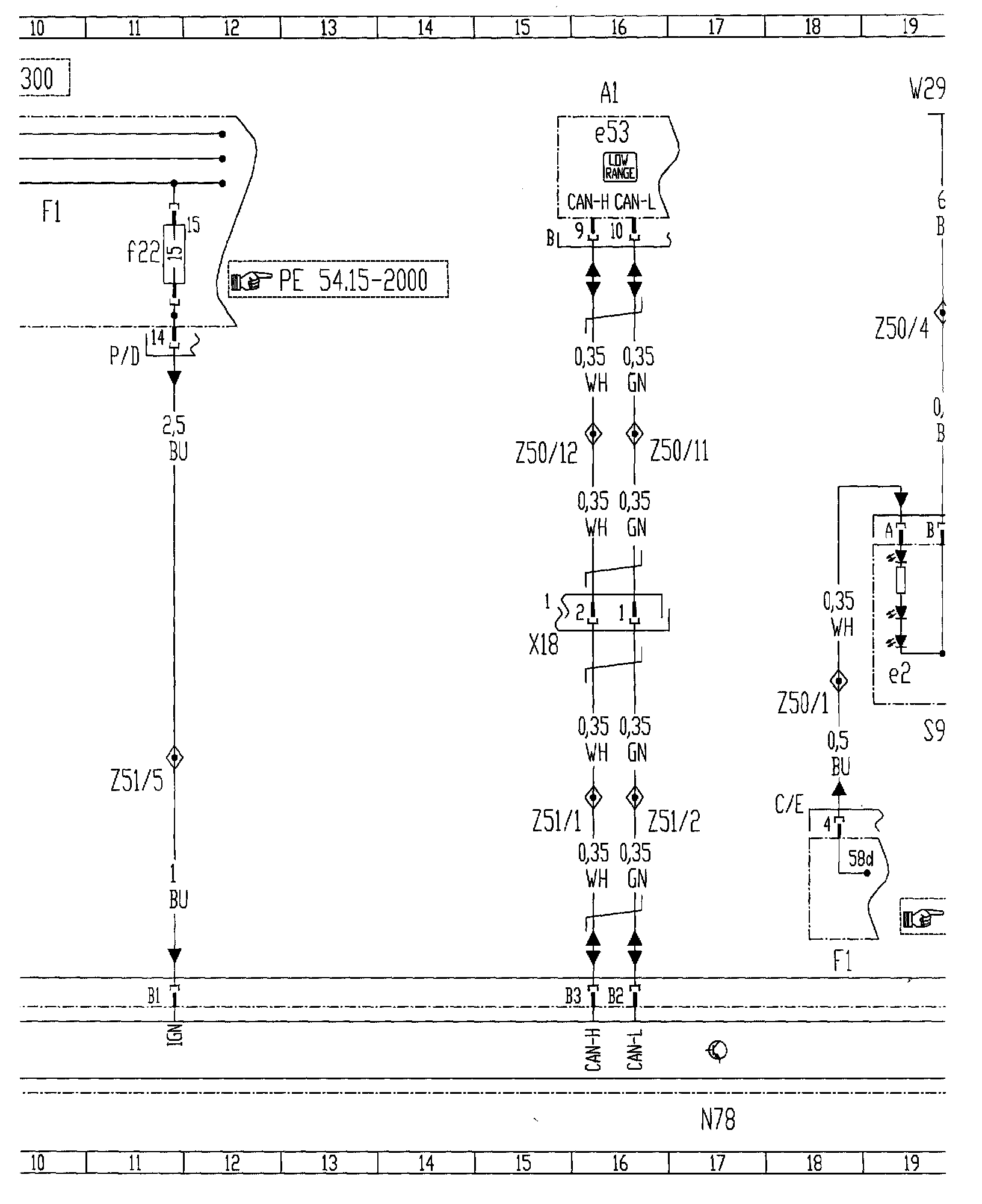

Transfer Case:

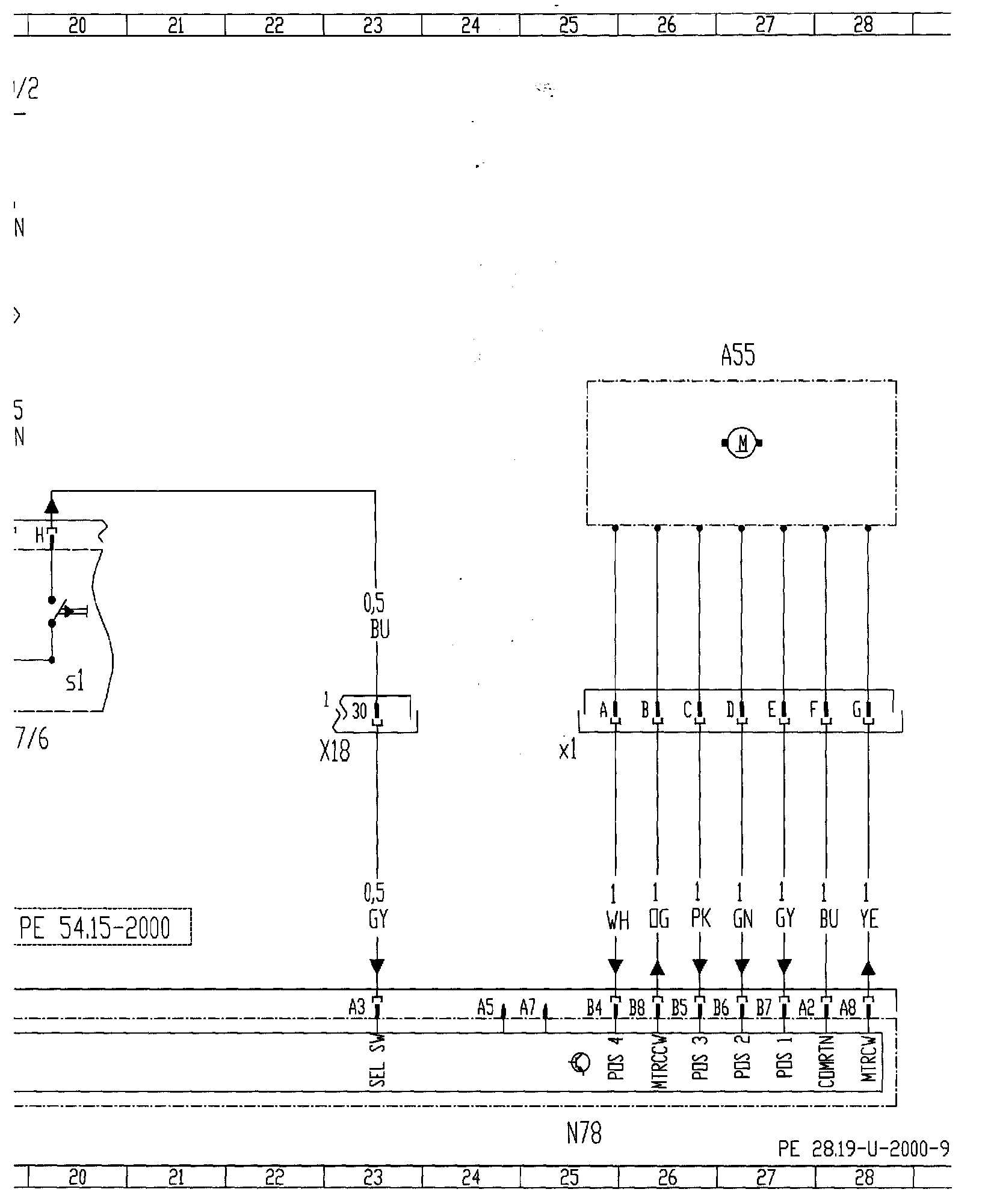

Transfer Case:
Transfer Case:
Transfer Case:
Legend For Transfer Case:
