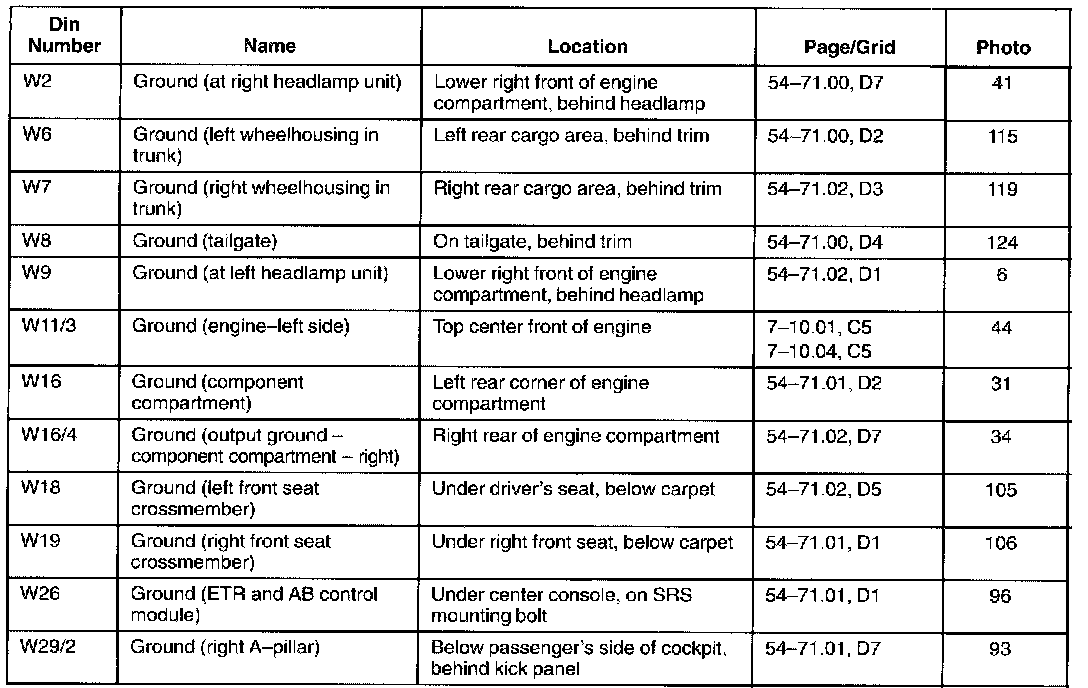

Ground Index

NOTE: Grounds can easily be identified in the schematics by a designation beginning with "W".
