Splice Index
Splice Index
NOTE
: Splices can easily be identified in the schematics by a designation beginning with "Z".

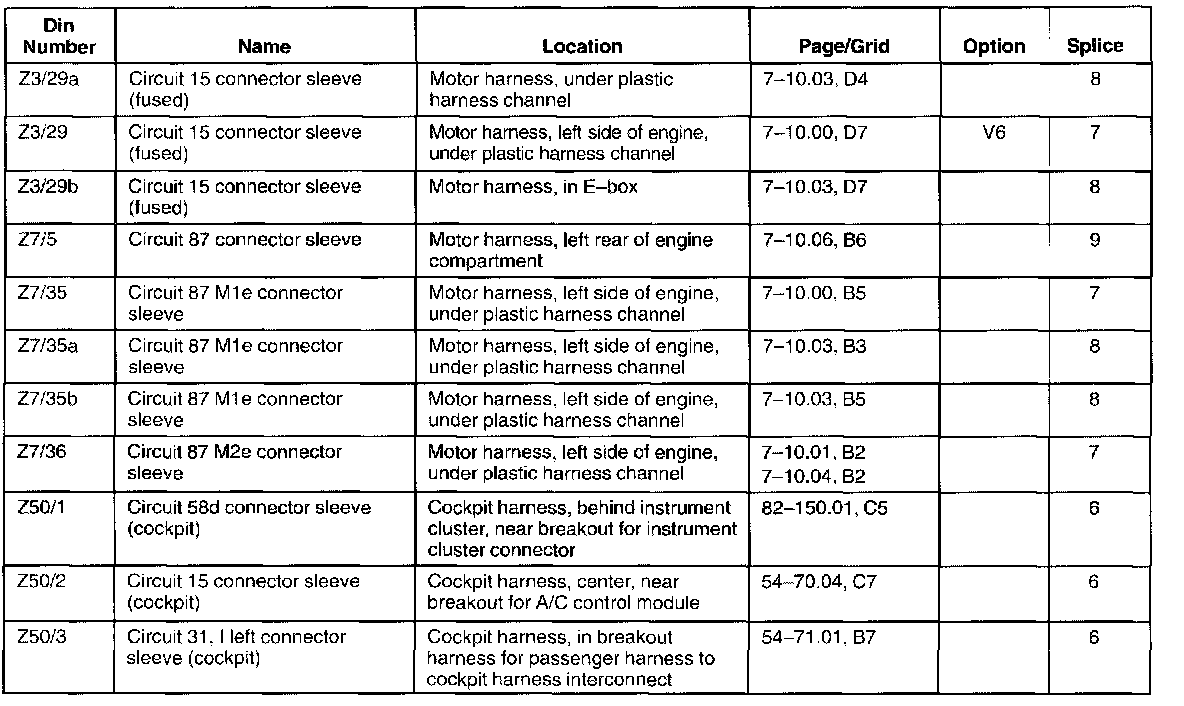

Z3/29a - Z50/3:

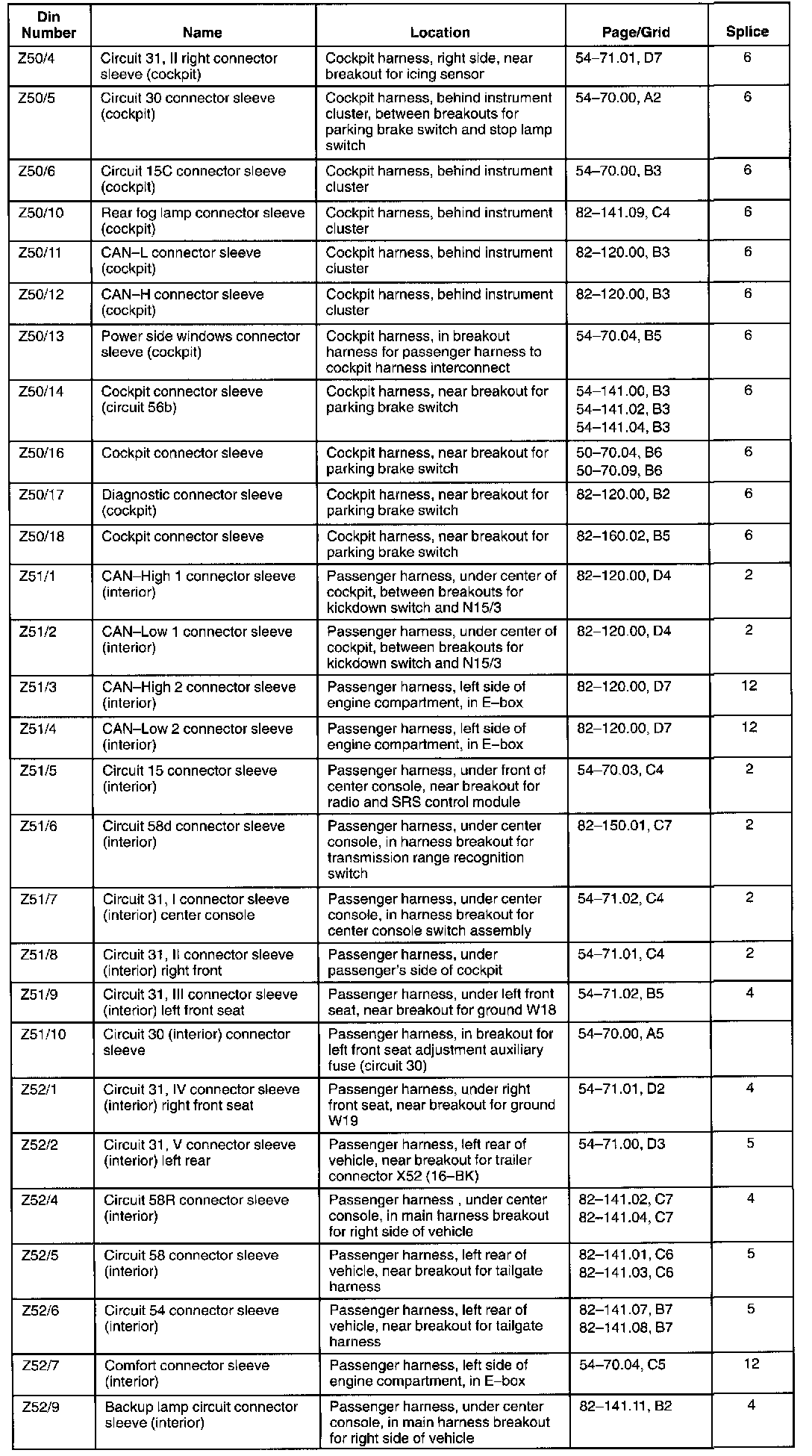

Z50/4 - Z52/9:
Z52/10 - Z57/3:
