Blower Motor Resistor: Service and Repair

Remove and Install Series Resistor For Heater Blower

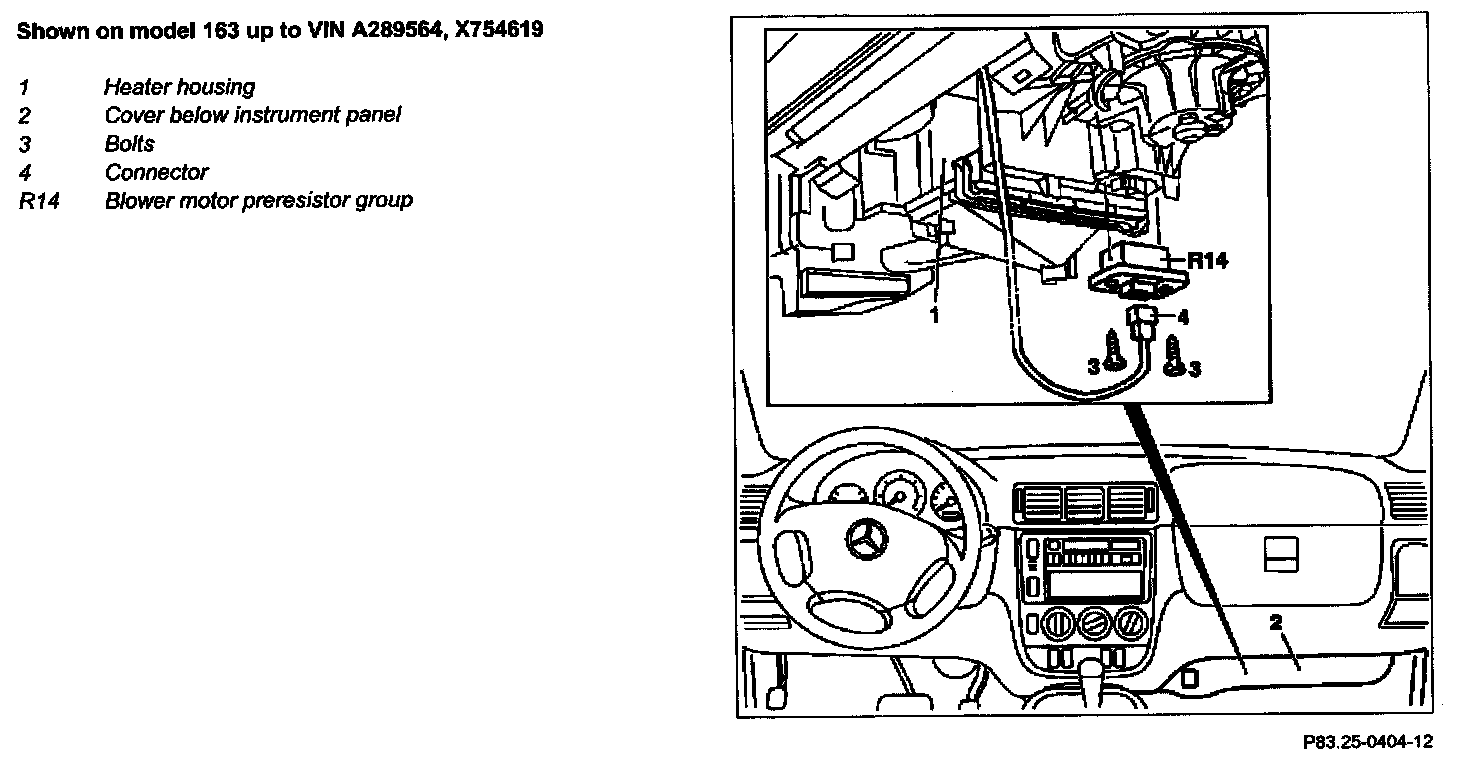

Shown On Model 163 Up To VIN A289564, X754619:

1 Remove cover below instrument panel (2) (on right) Service and Repair
2 Disconnect connector (4) on blower motor series resistor group (R14)
3 Unscrew screws (3) from blower motor series resistor group (R14) on heater housing (1)
4 Remove blower motor series resistor group (R14)
5 Install in the reverse order.
