Cabin Air Filter / Purifier: Service and Repair

Replace Dust Filter For Heating/Air Conditioning










1 Remove cover below instrument panel (passenger side)

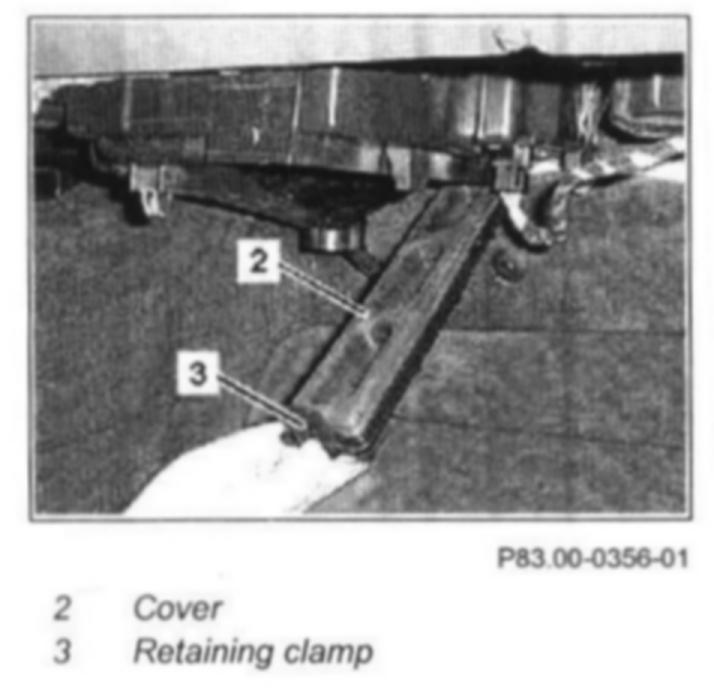

2 First unlatch retaining clamp (3), then remove cover (2)

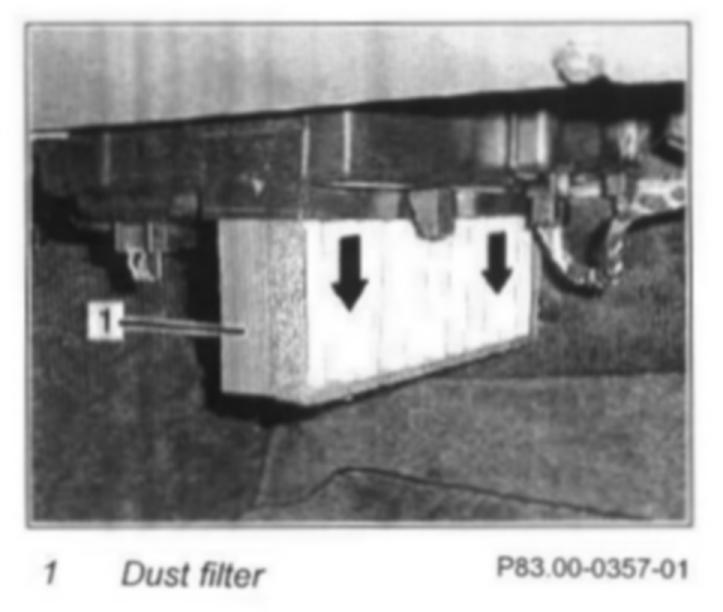

3 Withdraw dust filter (1) downwards (arrows)

NOTE: The dust filter must not be cleaned, it must be replaced.

4 Install in the reverse order.
