Condenser Fan: Service and Repair

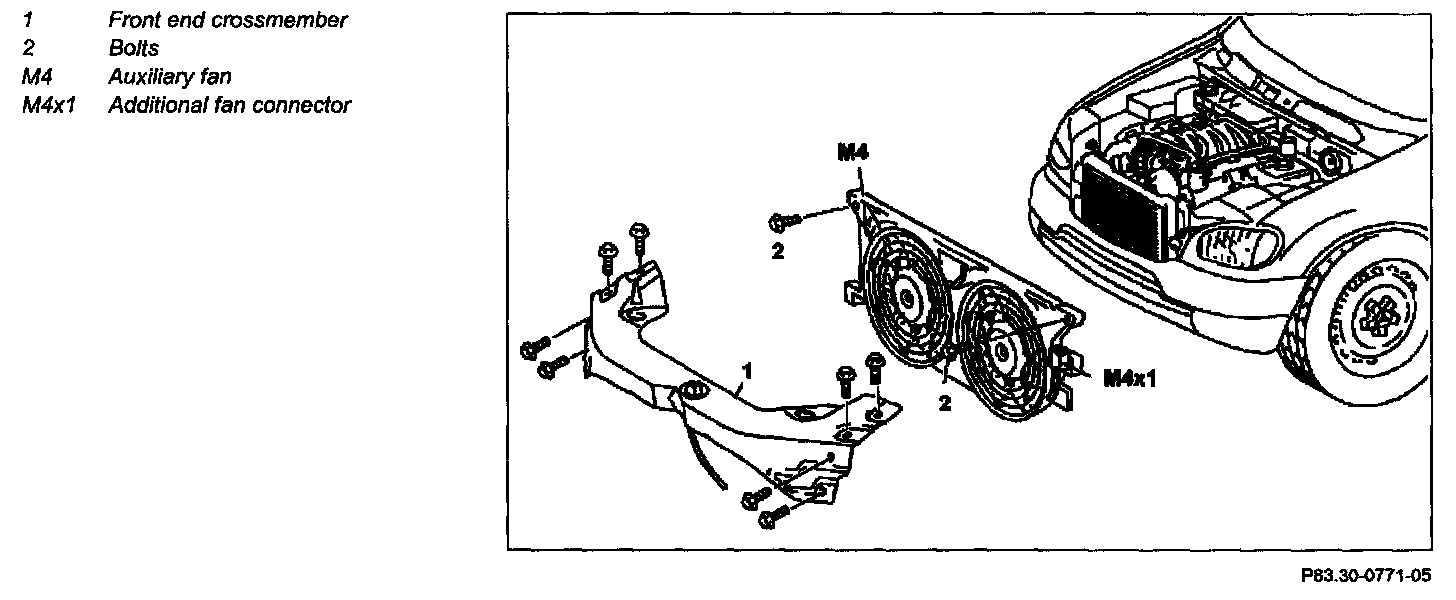

Remove/Install Auxiliary Fan





1 Remove upper frame cross member (1)
2 Unscrew bolts (2) for auxiliary fan (M4) at radiator
3 Disconnect additional fan connector (M4x1)
4 Unclip electric cable for outside temperature sensor at auxiliary fan (M4)
5 Pull out auxiliary fan (M4) upward

NOTE: Installation: Insert additional fan in the lower guides first pay attention to correct seating.

6 Install in the reverse order.
