Control Assembly: Service and Repair

Remove/Install Switch Unit/Automatic Air Conditioning Control Module





1 Remove center section of instrument panel

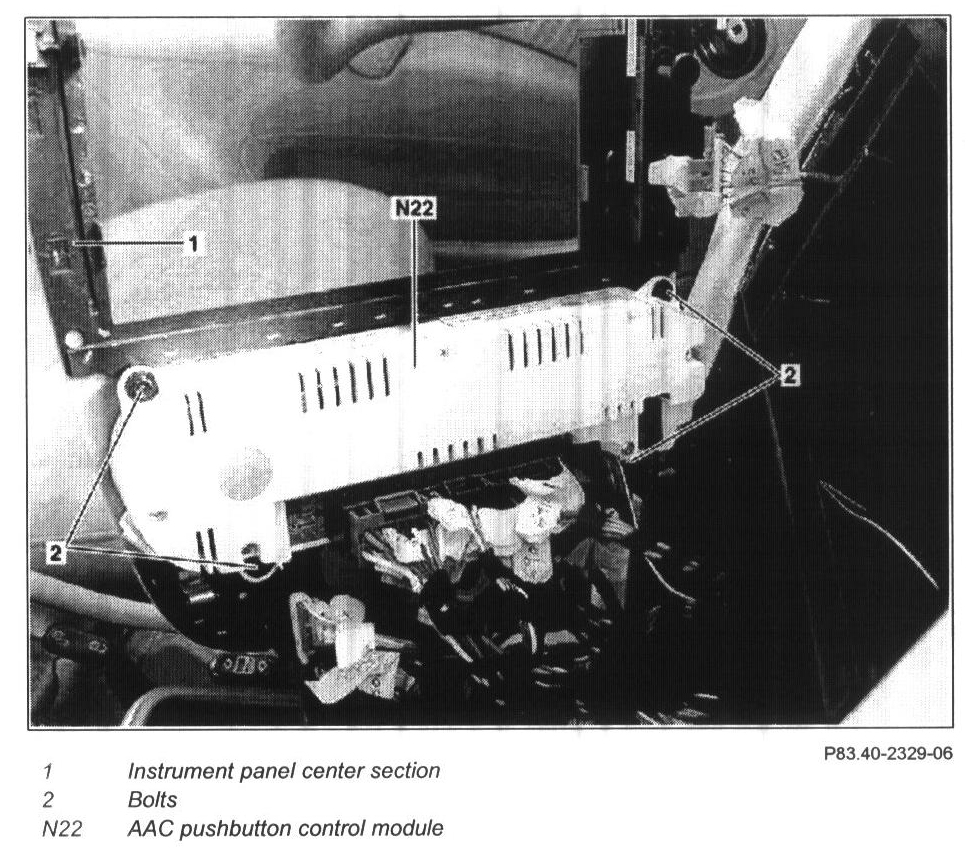

2 Remove switch unit of AAC control and operating module (N22) from center part of instrument panel (1)
3 Unscrew screws (2) from AAC control and operating module (N22)
4 Disconnect AAC control and operating module (N22) from center section of instrument panel

NOTE: Loosen retaining clamps at the top and bottom.

5 Install in the reverse order.
