GF83.40-P-2007GI Rear Ventilation Control Panel, Function

GF83.40-P-2007GI Rear Ventilation Control Panel, Function
- with CODE (580a) Automatic air conditioning

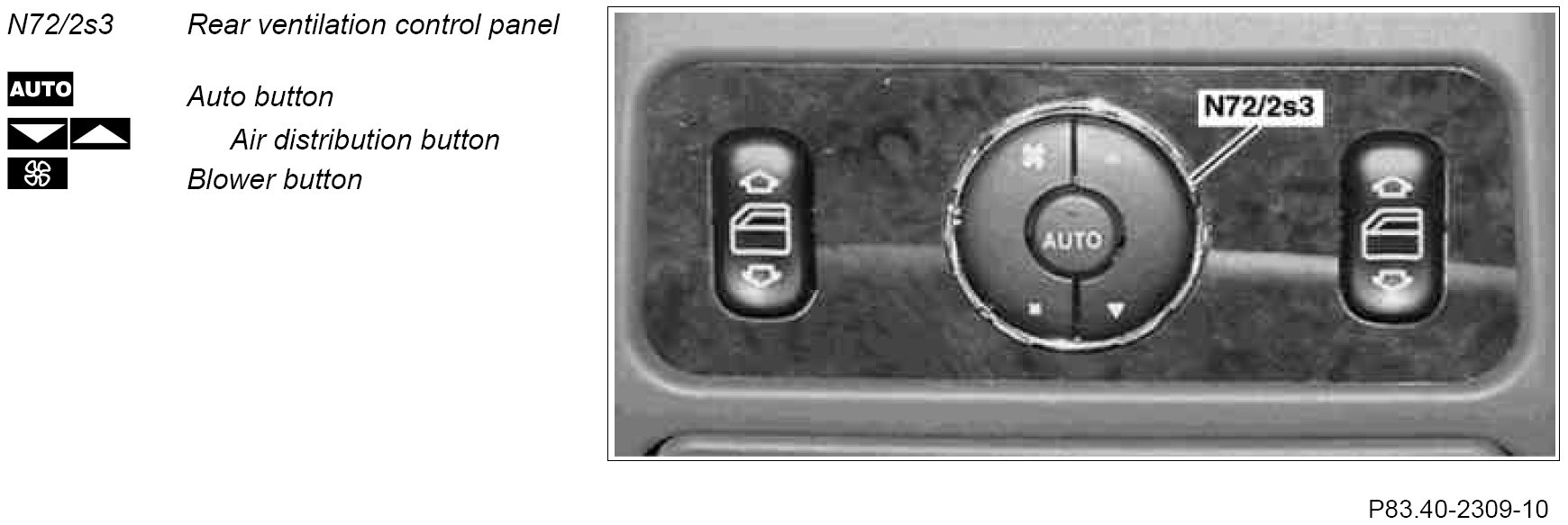

The rear ventilation control panel (N72/2s3) enables specific settings to be made for the rear compartment ventilation system. The following possibilities are available:
- Setting air quantity by pressing the blower button
- Air distribution by pressing the air distribution button ( [Down arrow] [up arrow] )
- Automatic air distribution/blower speed by pressing the Auto button ( [AUTO] ) (Control through AAC pushbutton control module (N22))
