Automatic Air Conditioning (AAC) PE83.40-U-2000GJ

PE83.30-U-2000GJ Air Conditioning (automatic)
- with CODE (581a) Air Conditioning (automatic)

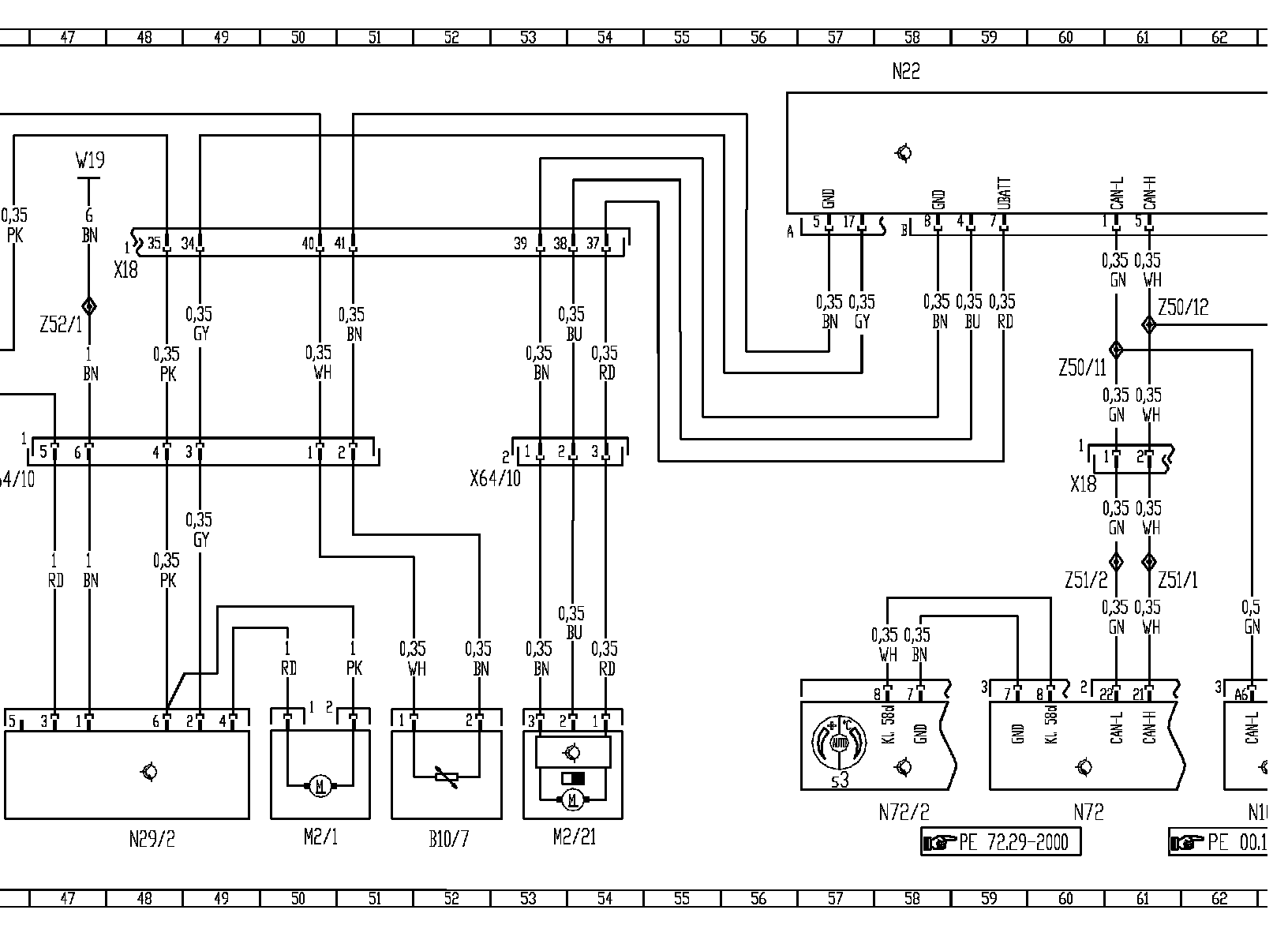

Wiring Diagram, Part 1:

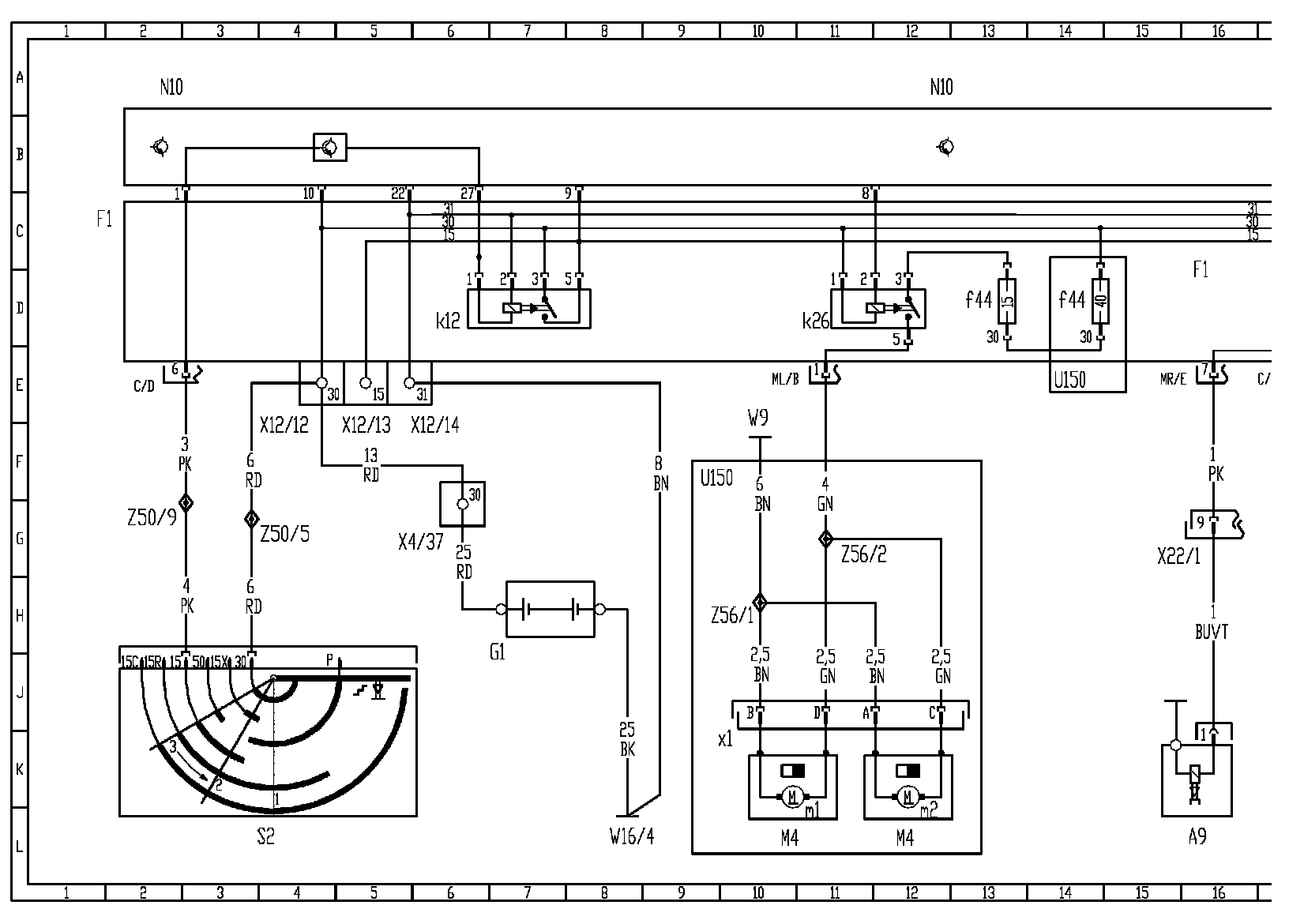

Wiring Diagram, Part 2:

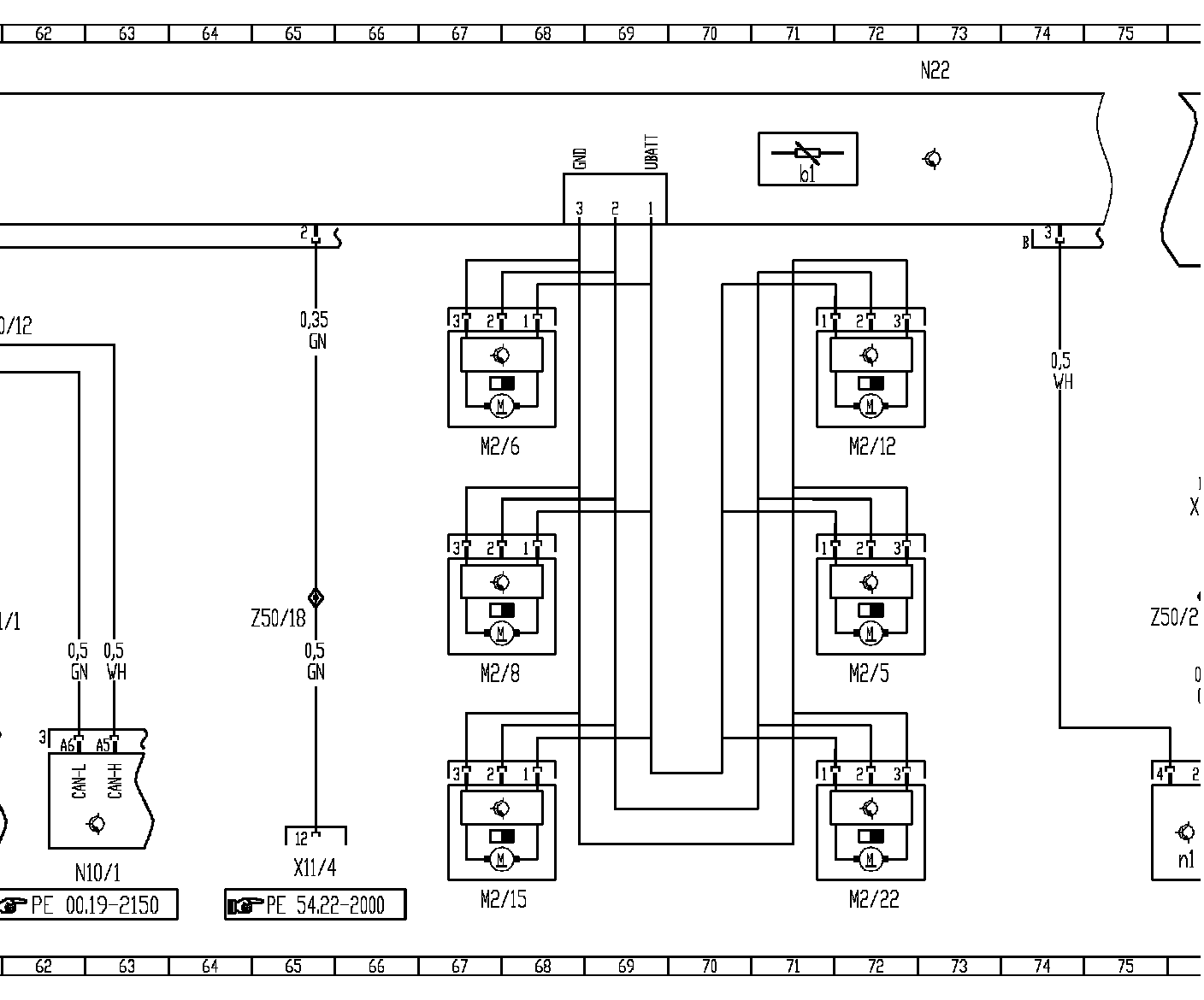

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

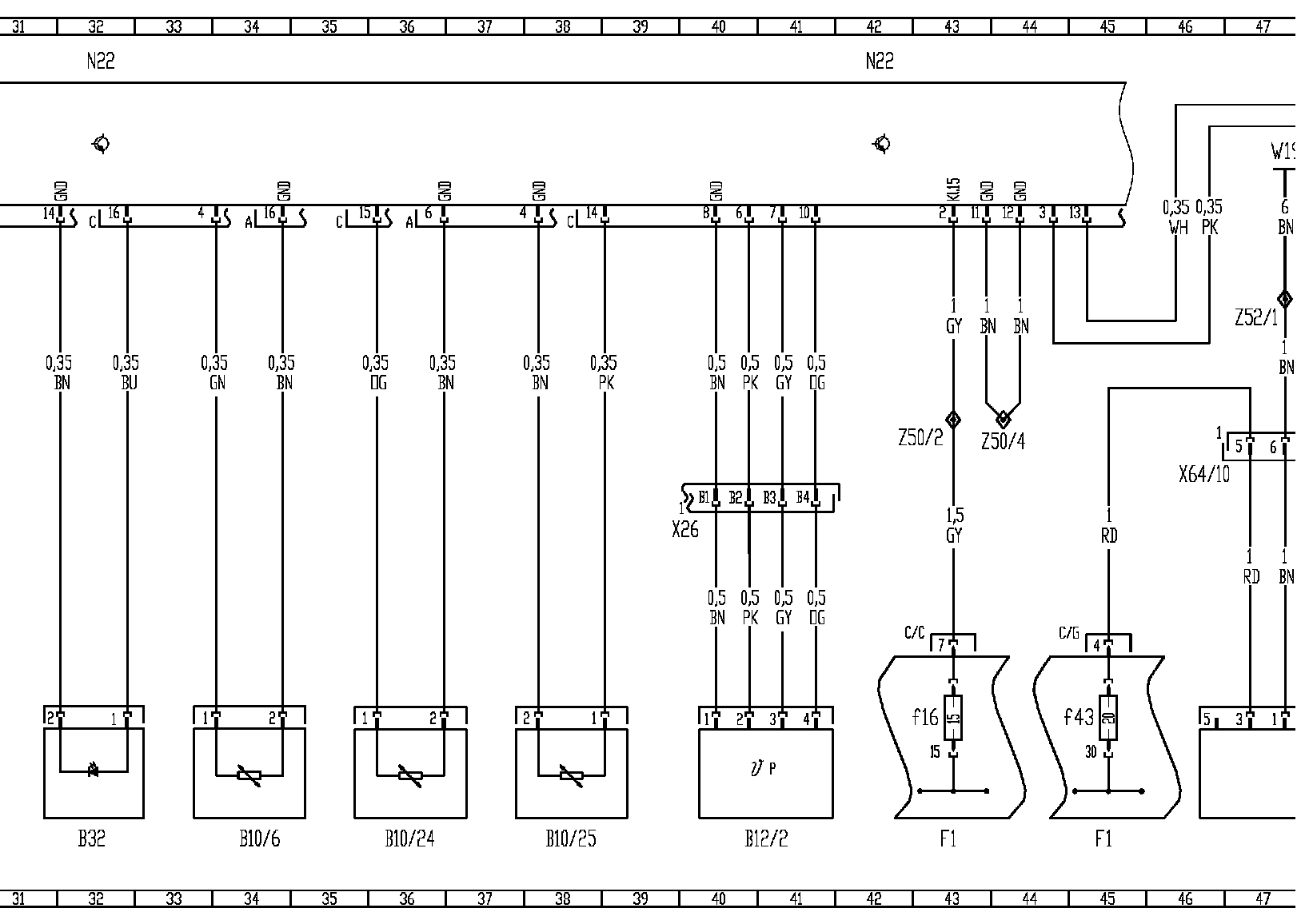

Wiring Diagram, Part 5:

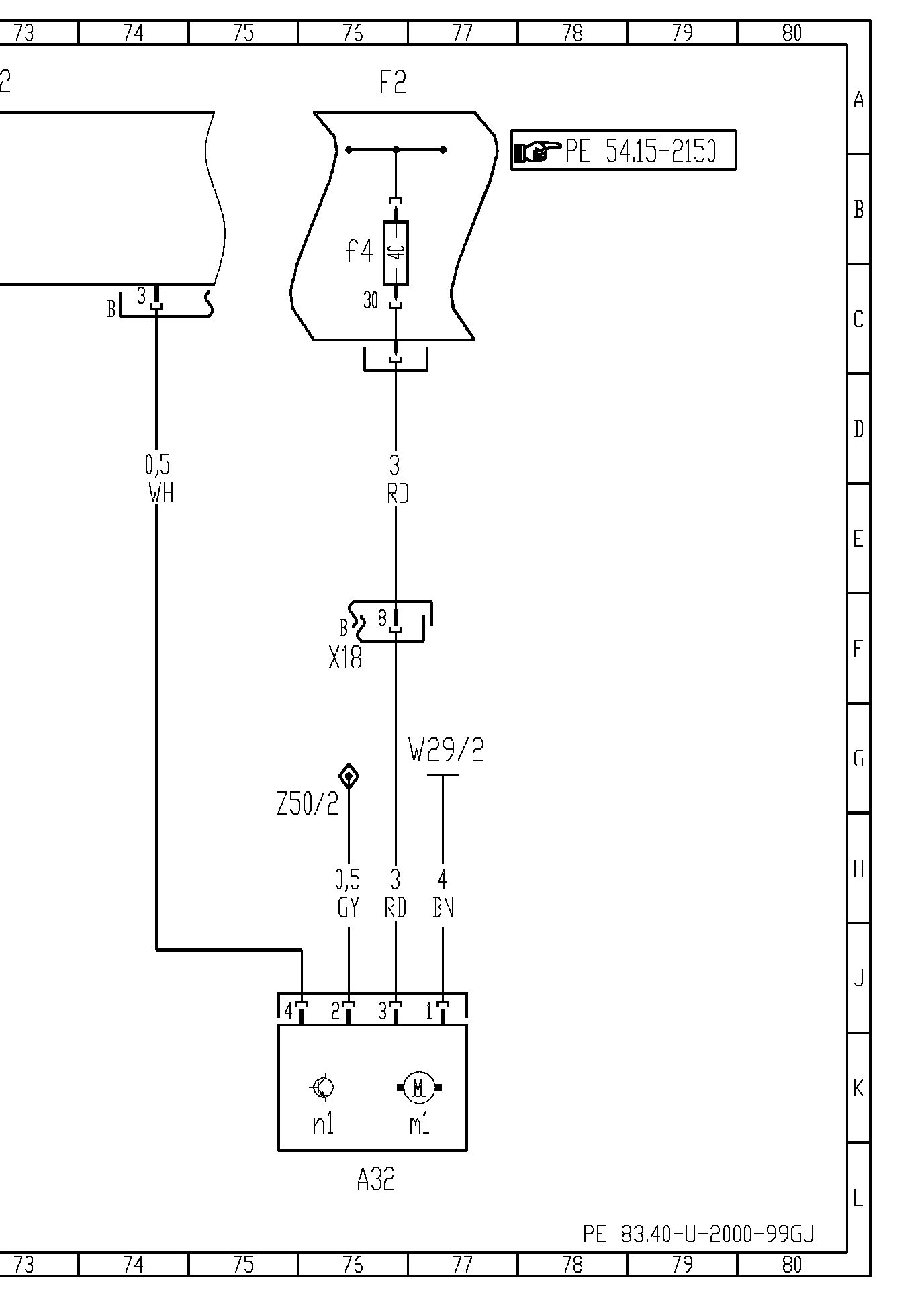

Wiring Diagram, Part 6:

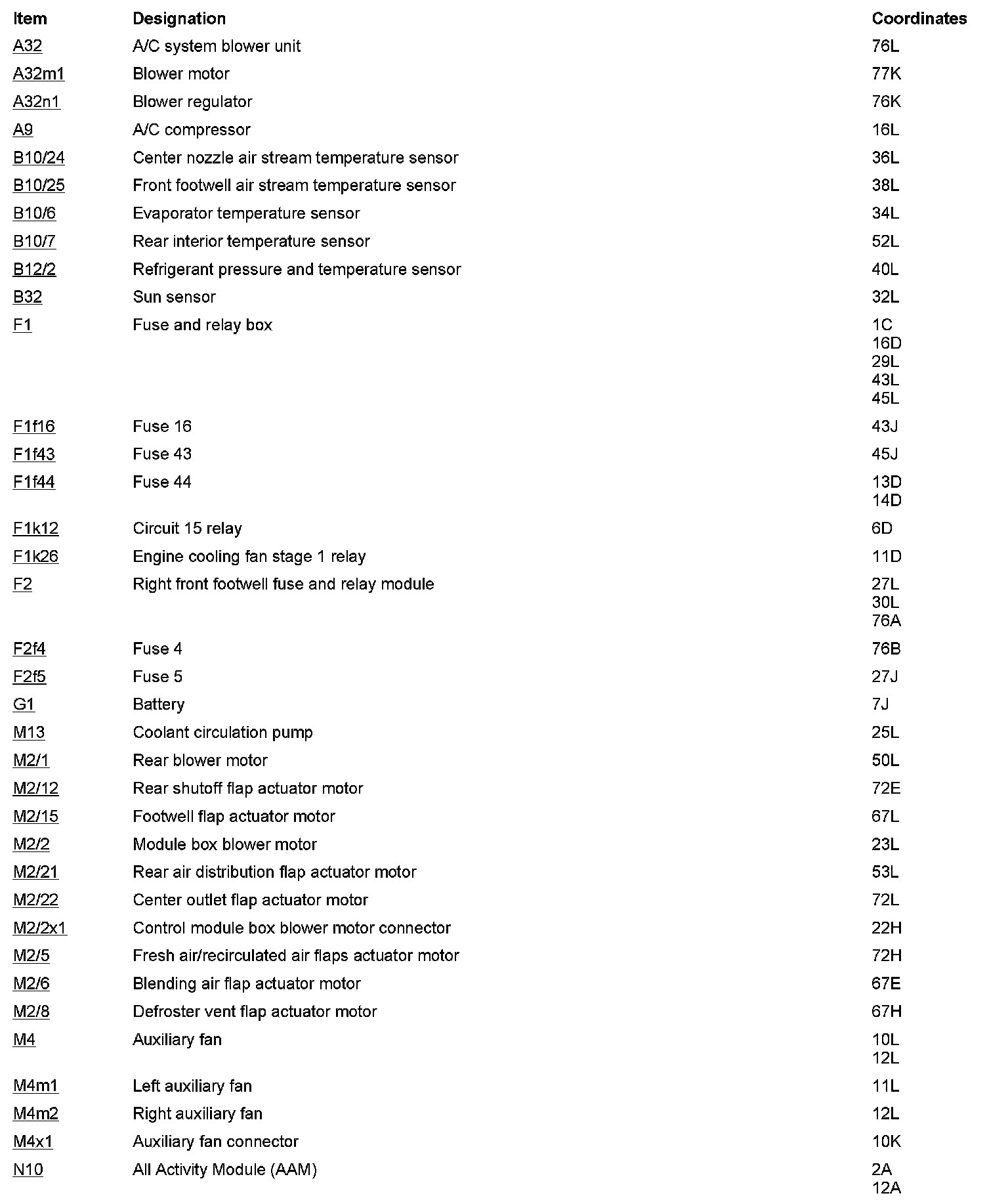

Component Description/Coordinates, A32 to N10:

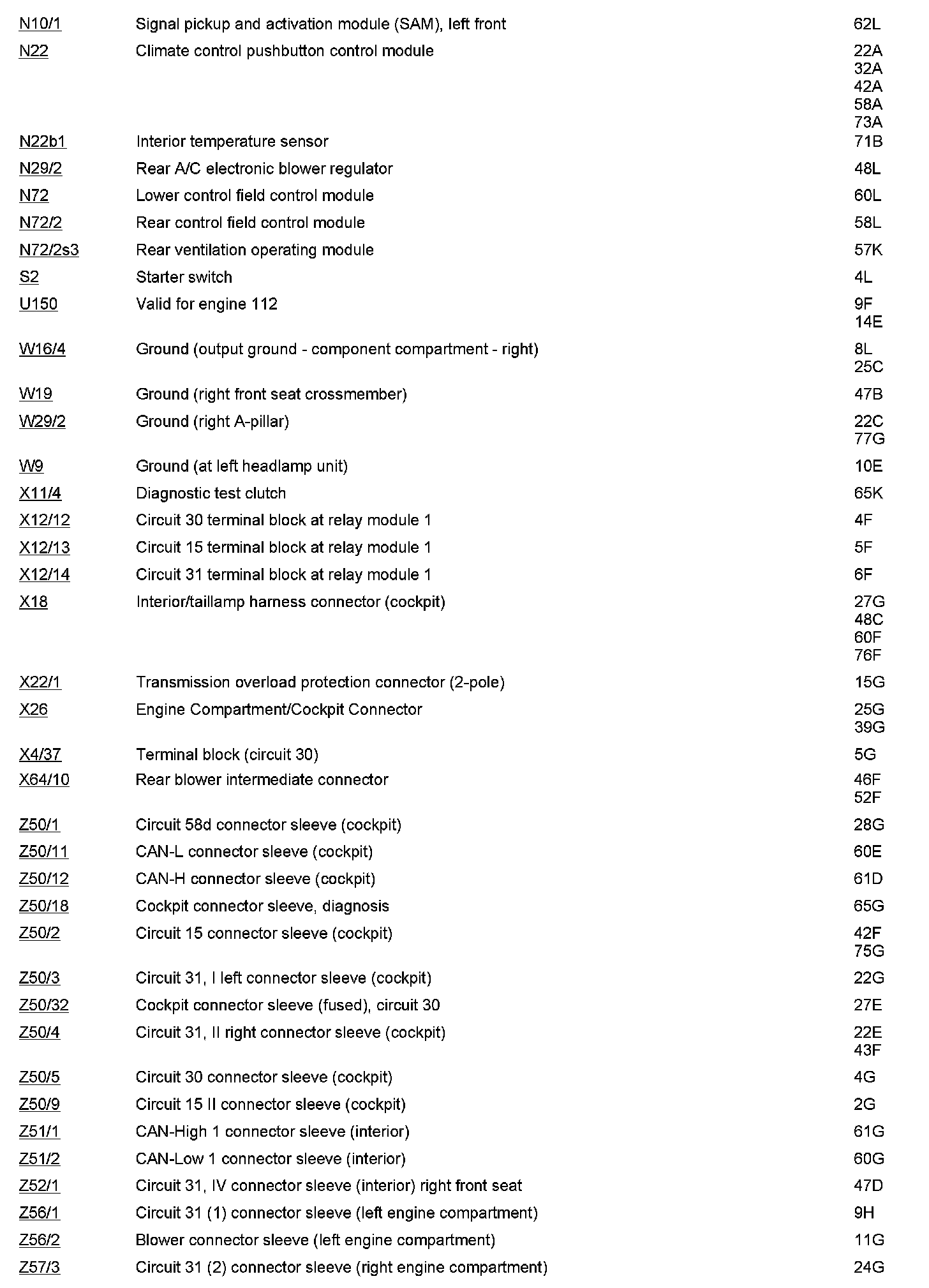

Component Description/Coordinates, N10/1 to Z57/3:
