Evaporator Core: Locations

GF83.40-P-2121-02GH Evaporator, Location
- with CODE (580) Air conditioning or Tempmatic for USA [MODELS 163 up to 31.8.01]
- with CODE (580a) Automatic air conditioning [MODELS 163 as of 1.9.01]

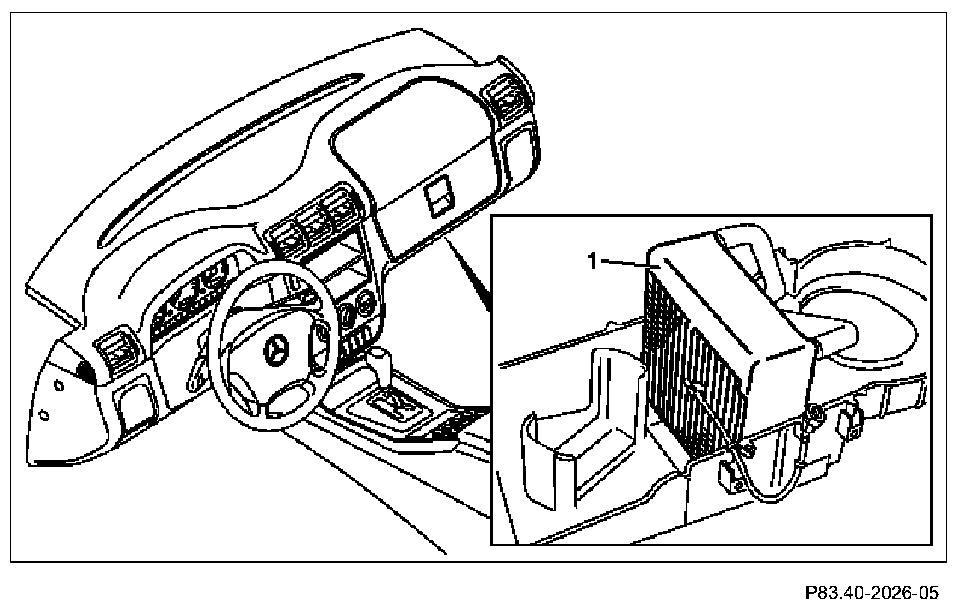

The evaporator (1) is located in the air conditioning box.
