Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations

Instrument Panel, Gauges and Warning Indicators: Locations

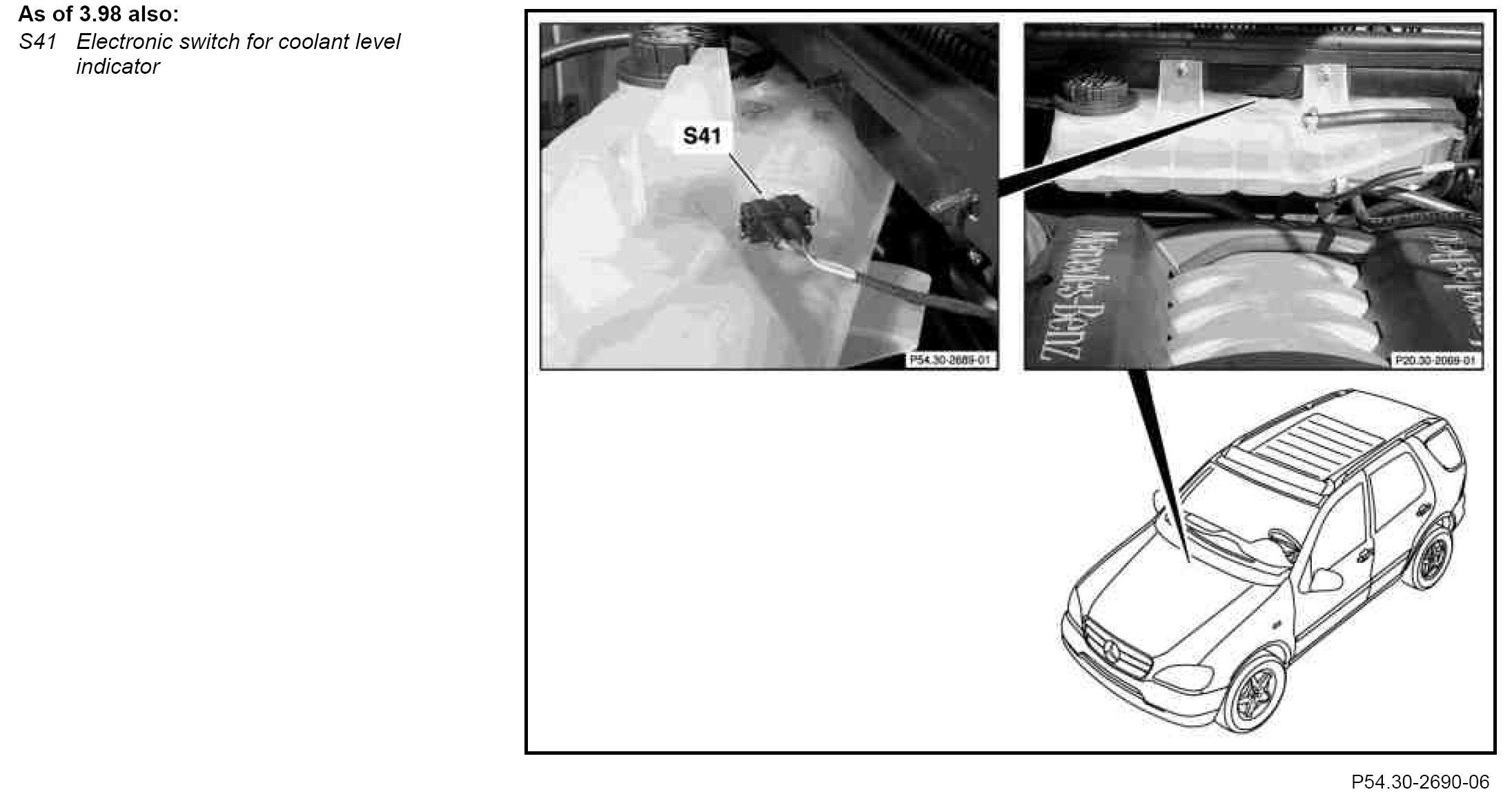

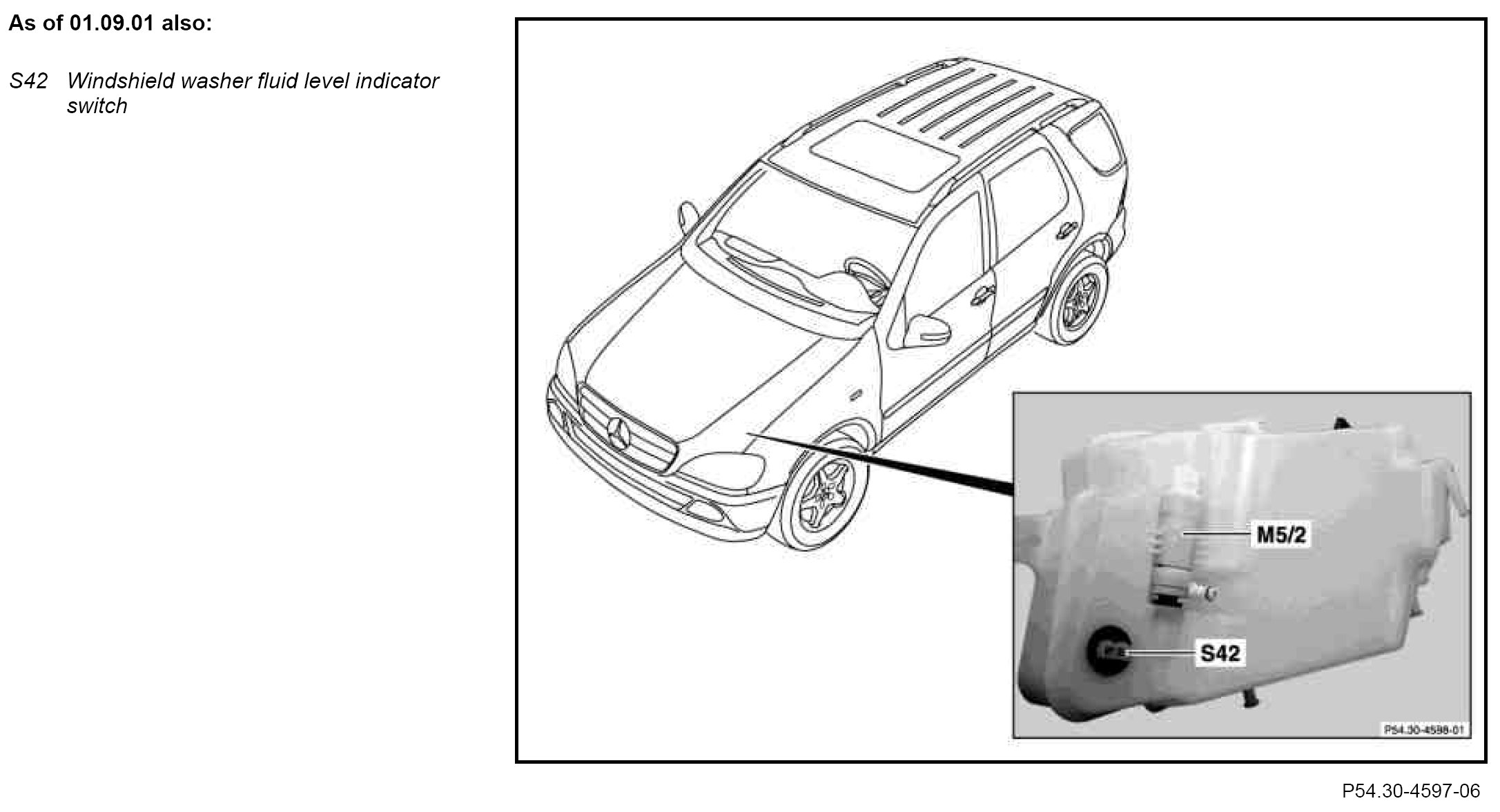

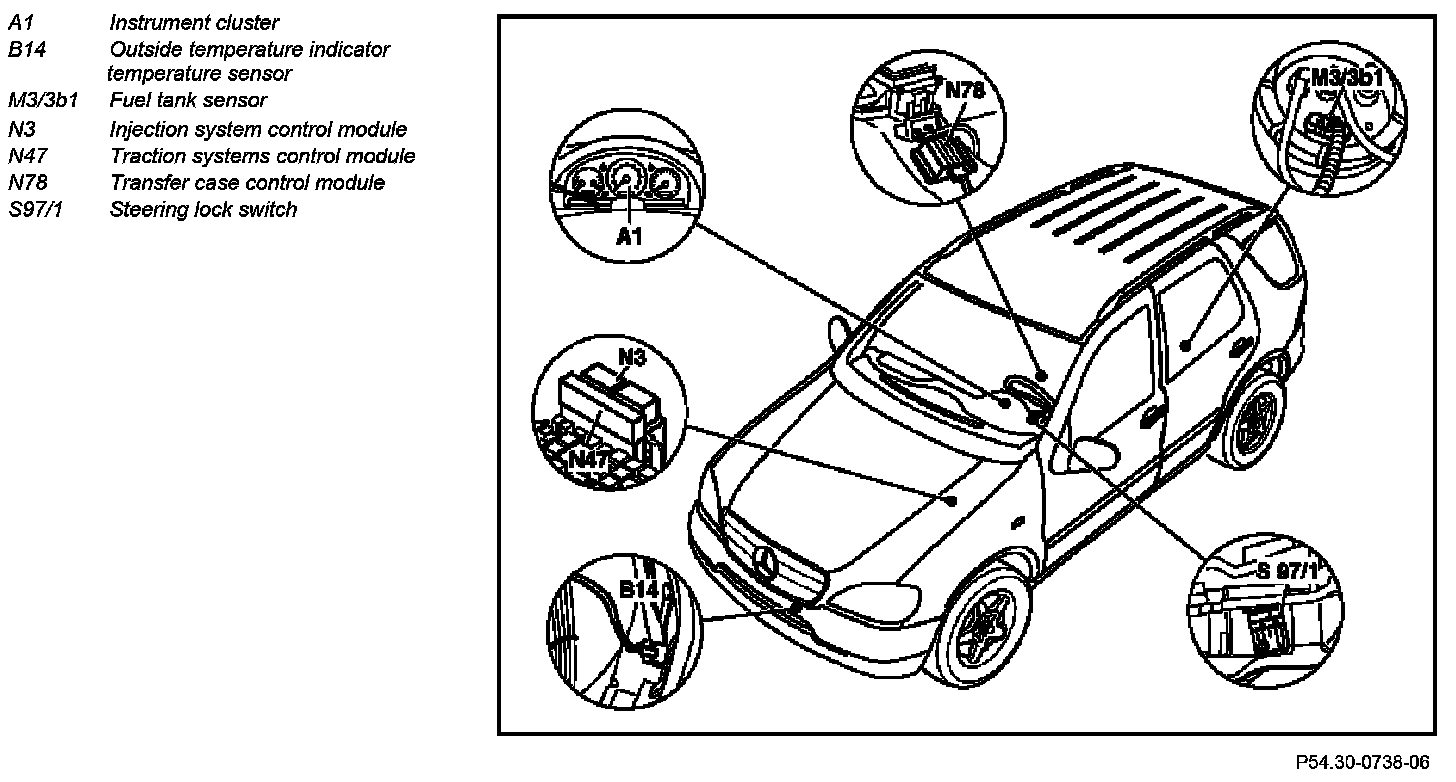

GF54.30-P-0002-04GH Instrument Cluster (IC), Location of Components
