Center Mounted Brake Lamp: Service and Repair

Removing And Installing Center High-Mounted Stop Lamp







Removal, installation
1 Open tailgate

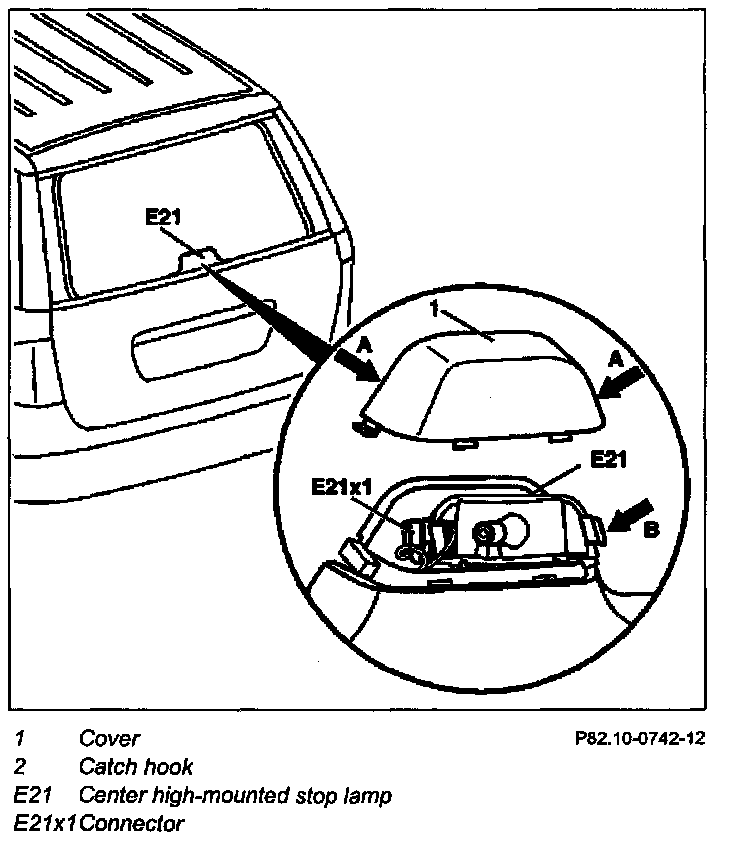

2 Remove cover (1) for center high-mounted stop lamp (E21)

NOTE: Press cover in on right and left (arrow A) until catch hooks (2) are released

3 Disconnect electrical connector (E21x1)
4 Release center high-mounted stop lamp on left (arrow B) and twist to right out of housing
5 Reinstall in opposite order
6 Check for proper function
