GF82.20-P-4005GH Actuating Rear Dome Lamp, Function

GF82.20-P-4005GH Actuating Rear Dome Lamp, Function

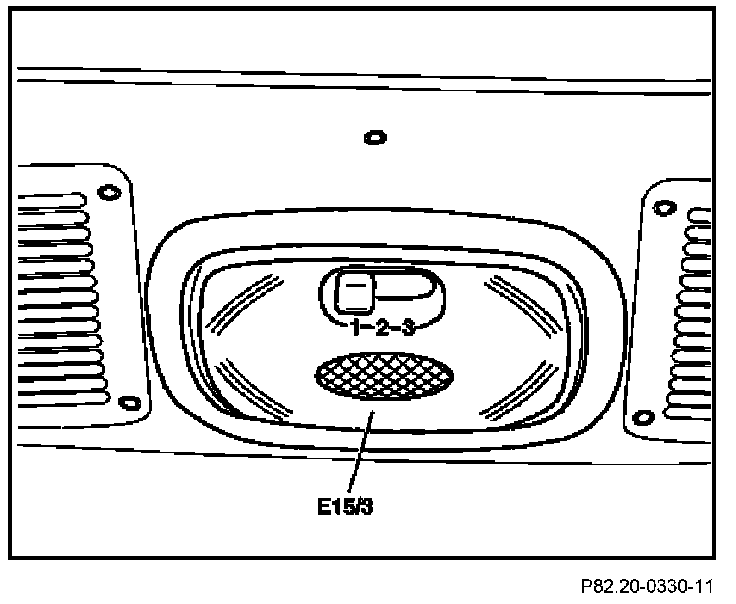

A slide switch with three positions is integrated into the rear dome lamp (E15/3). The lamp is connected to circuit 30. Three modes can be selected with the slide switch:
- "Automatic" (1). The second lamp terminal is connected to the rotary tumbler/tailgate microswitch (S88/1) which completes the circuit to circuit 31 when the tailgate is opened.
- Continuous "on" (2). The second terminal in the lamp is connected to circuit 31.
- Continuous "off" (3).
