Fanfare Signal System (FAN) PE54.35-U-2000GI
Fanfare Signal System (FAN) PE54.35-U-2000GI
Fanfare Signal System (FAN) PE54.35-U-2000GI

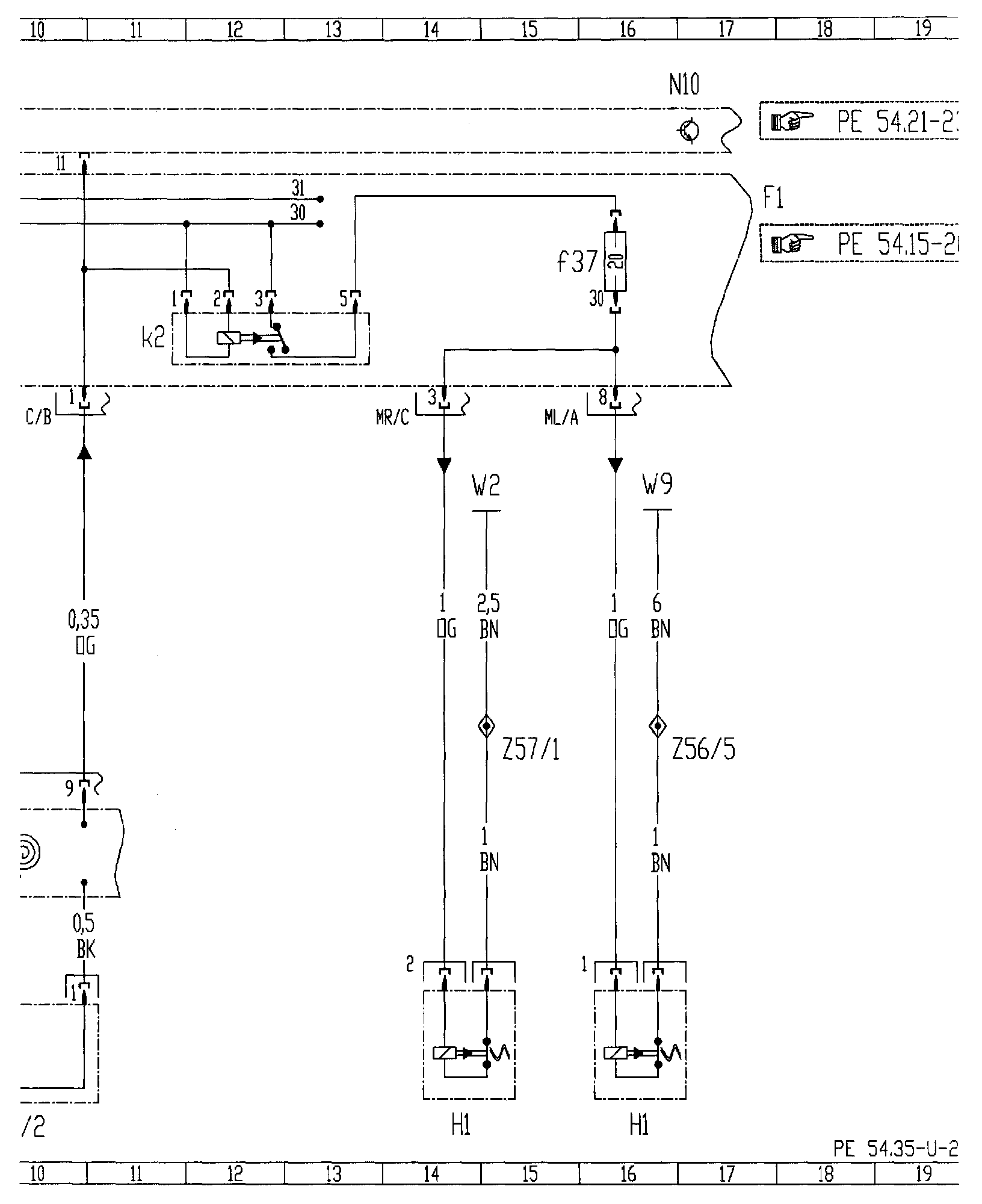

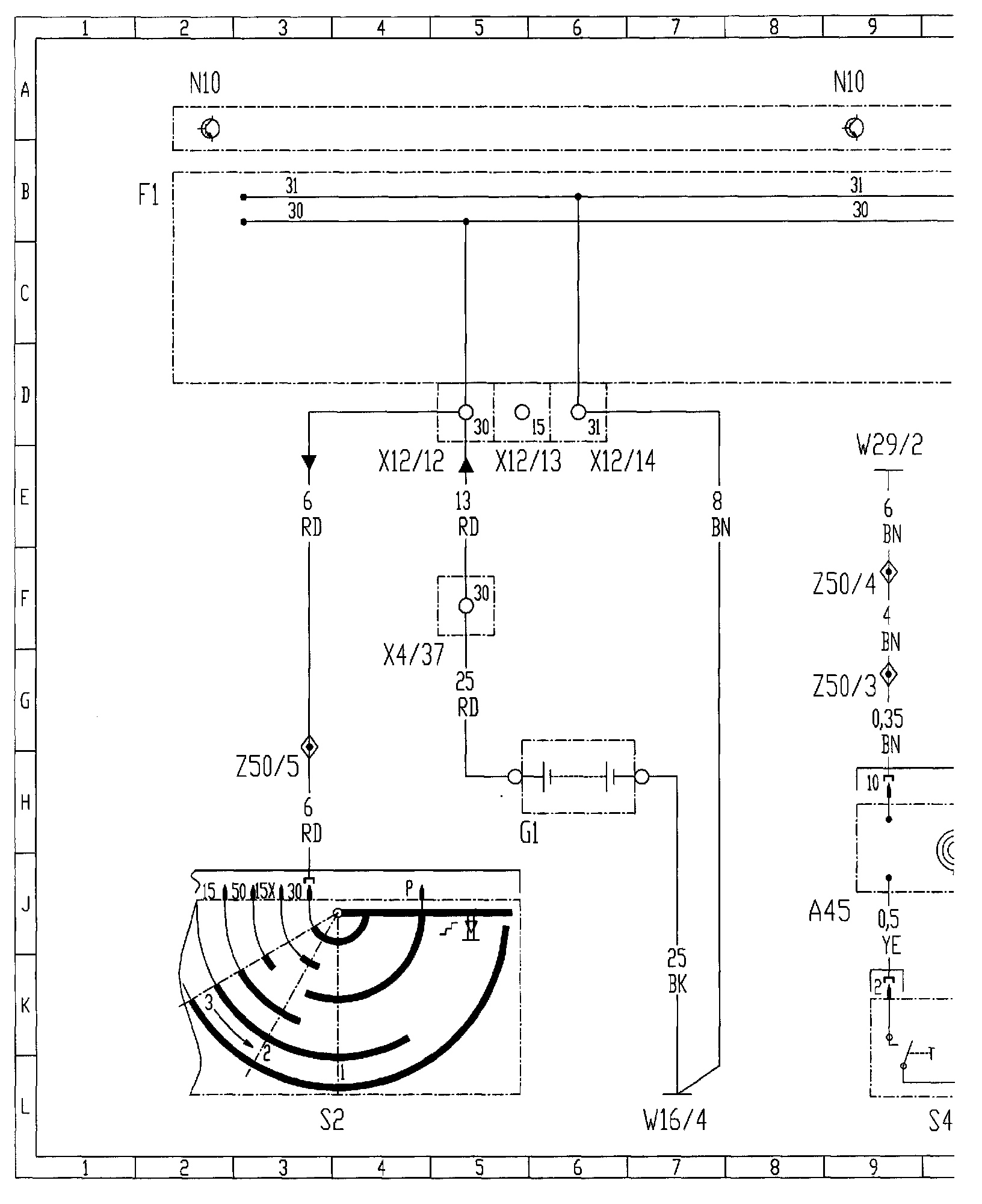

Signal System:
Signal System:
Signal System:

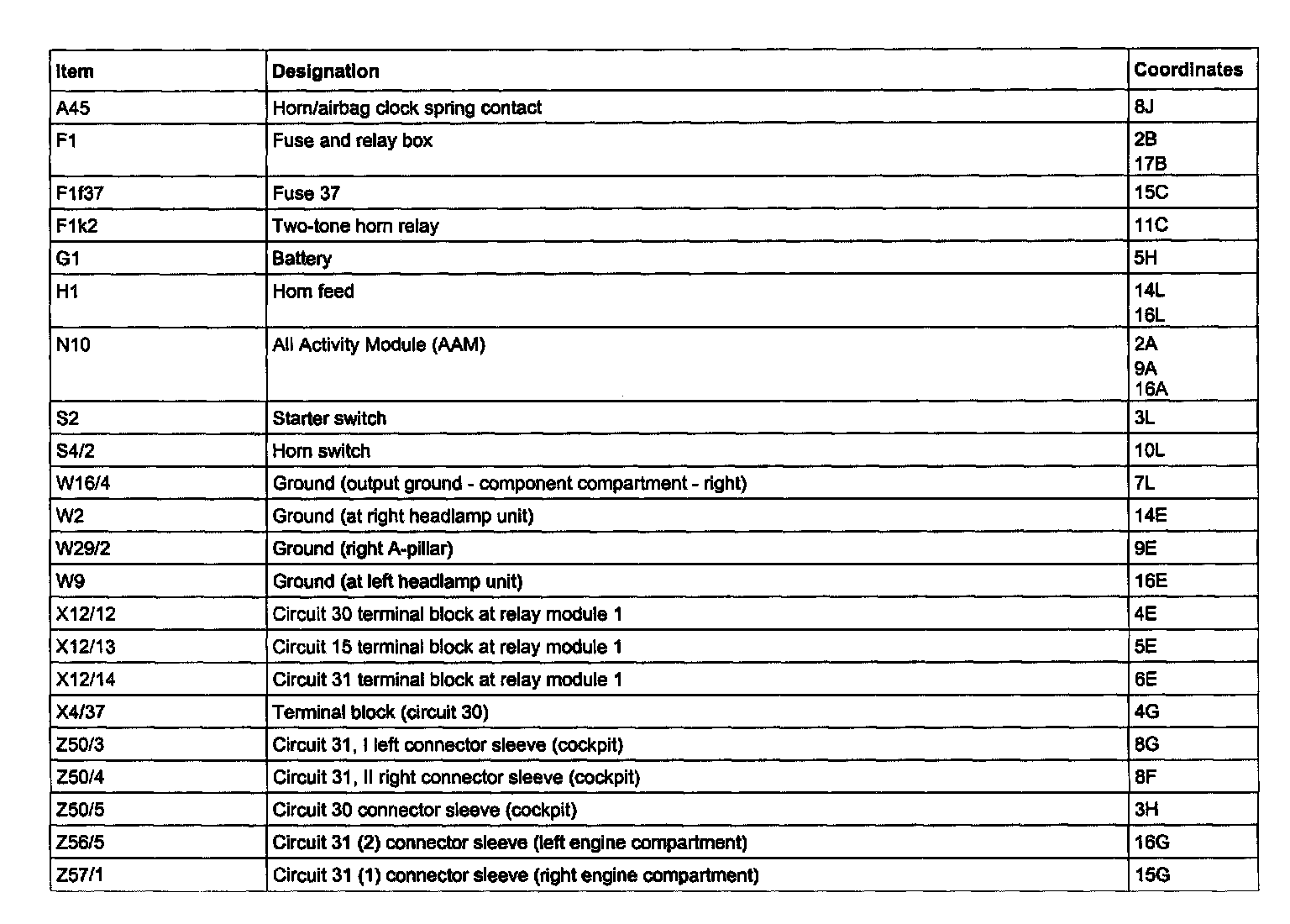

Legend For Signal System:
