License Plate Lamp: Service and Repair

Removing And Installing License Plate Lamps







Removal, installation

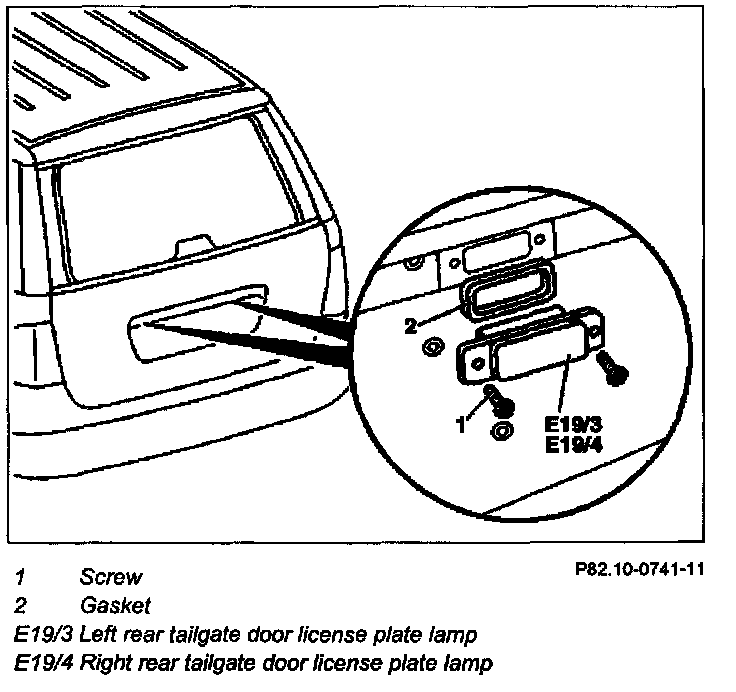

1 Unscrew screws (1)
2 Pry out license plate lamp (E19/3, E19/4) with suitable tool

NOTE: e.g. plastic wedge

3 Reinstall in opposite order

NOTE: Installation: Check gasket (2) for license plate lamp for condition and proper seating.

4 Check for proper function
