ME-SFI Fuel Injection/Ignition System PE07.61-U-2000T

ME-SFI Fuel Injection & Ignition System PE07.61-U-2000T
- Engine Compartment/Floor Assembly

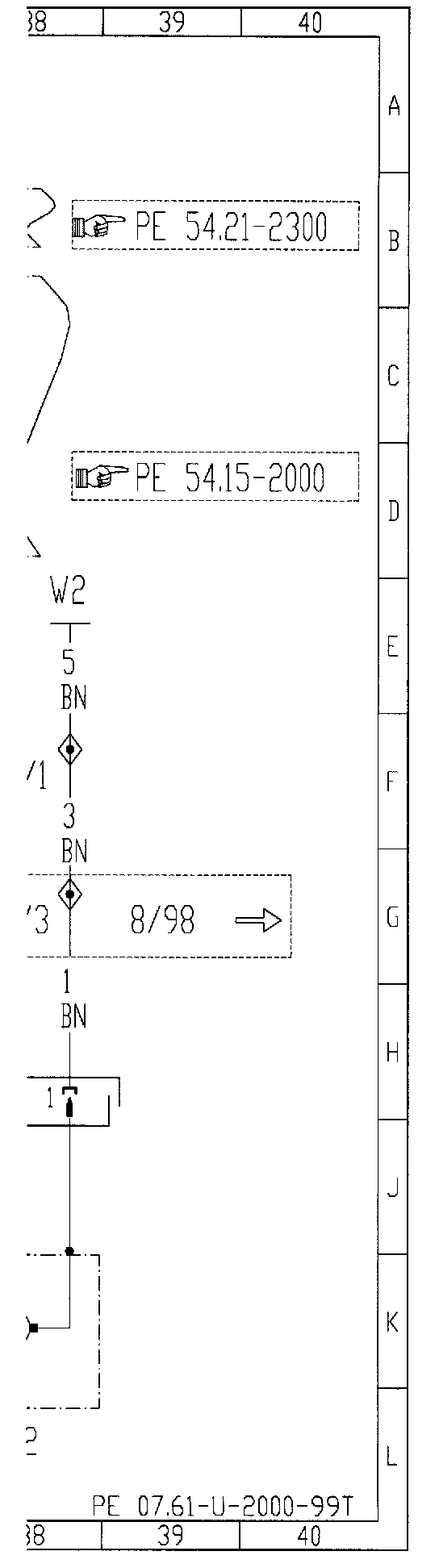

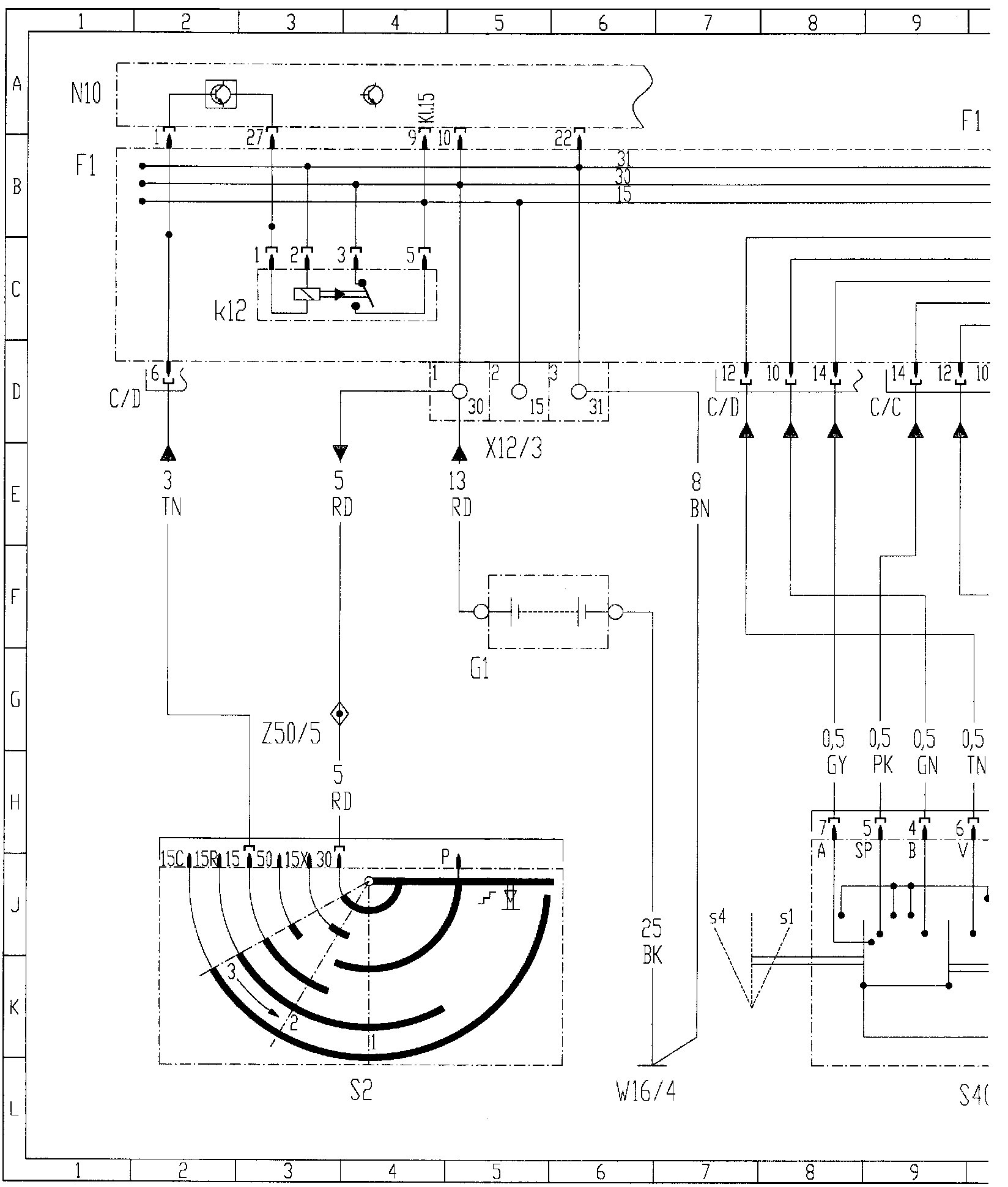

Diagram, Part 1:

Diagram, Part 2:

Diagram, Part 3:

Diagram, Part 4:

Diagram, Part 5:

Component Description/Coordinates, B37 - Z57/3:
