Transmission Control Systems: Diagrams

Automatic Transmission PE27.19-U-2000GJ

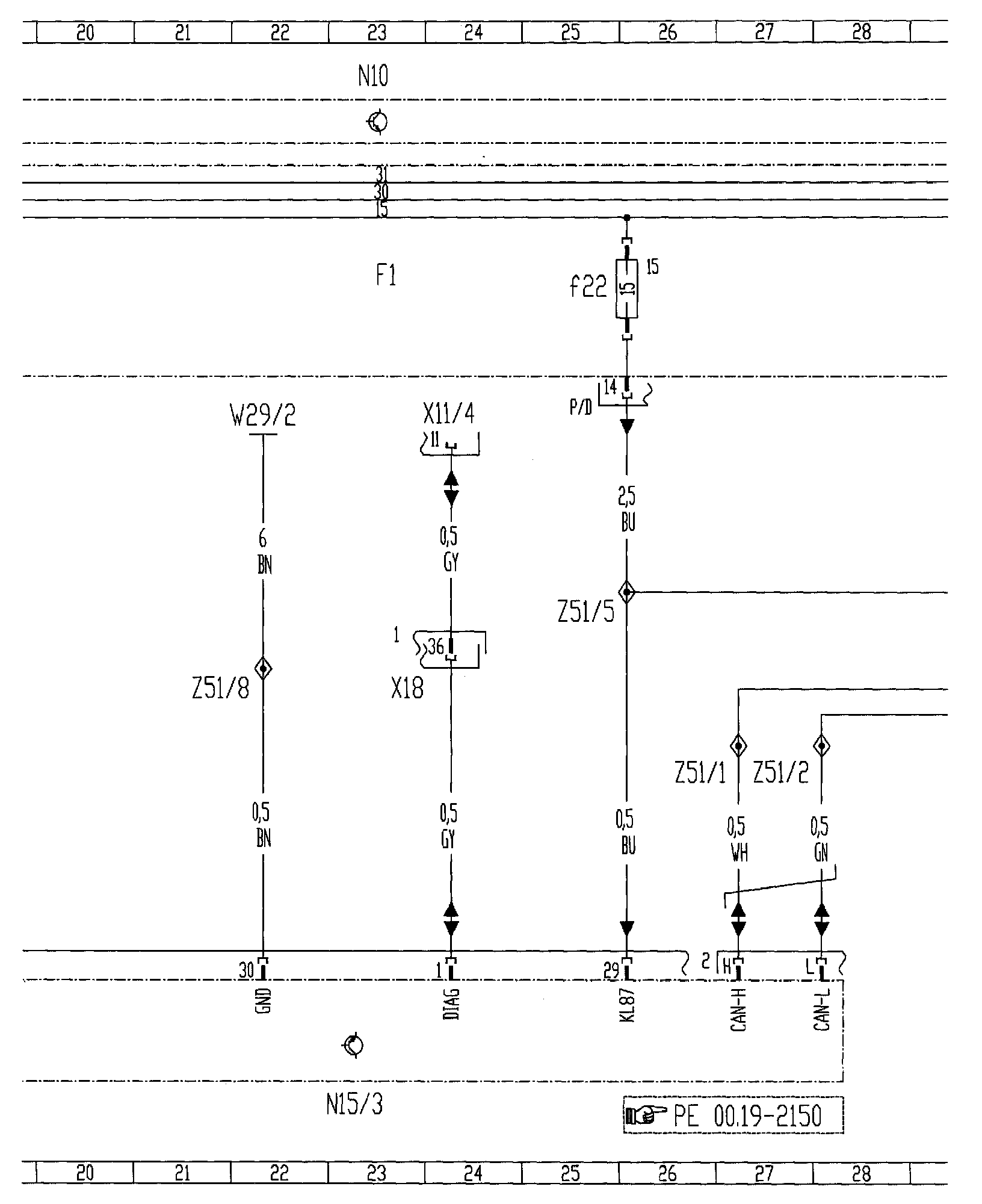

Automatic Transmission (AT):

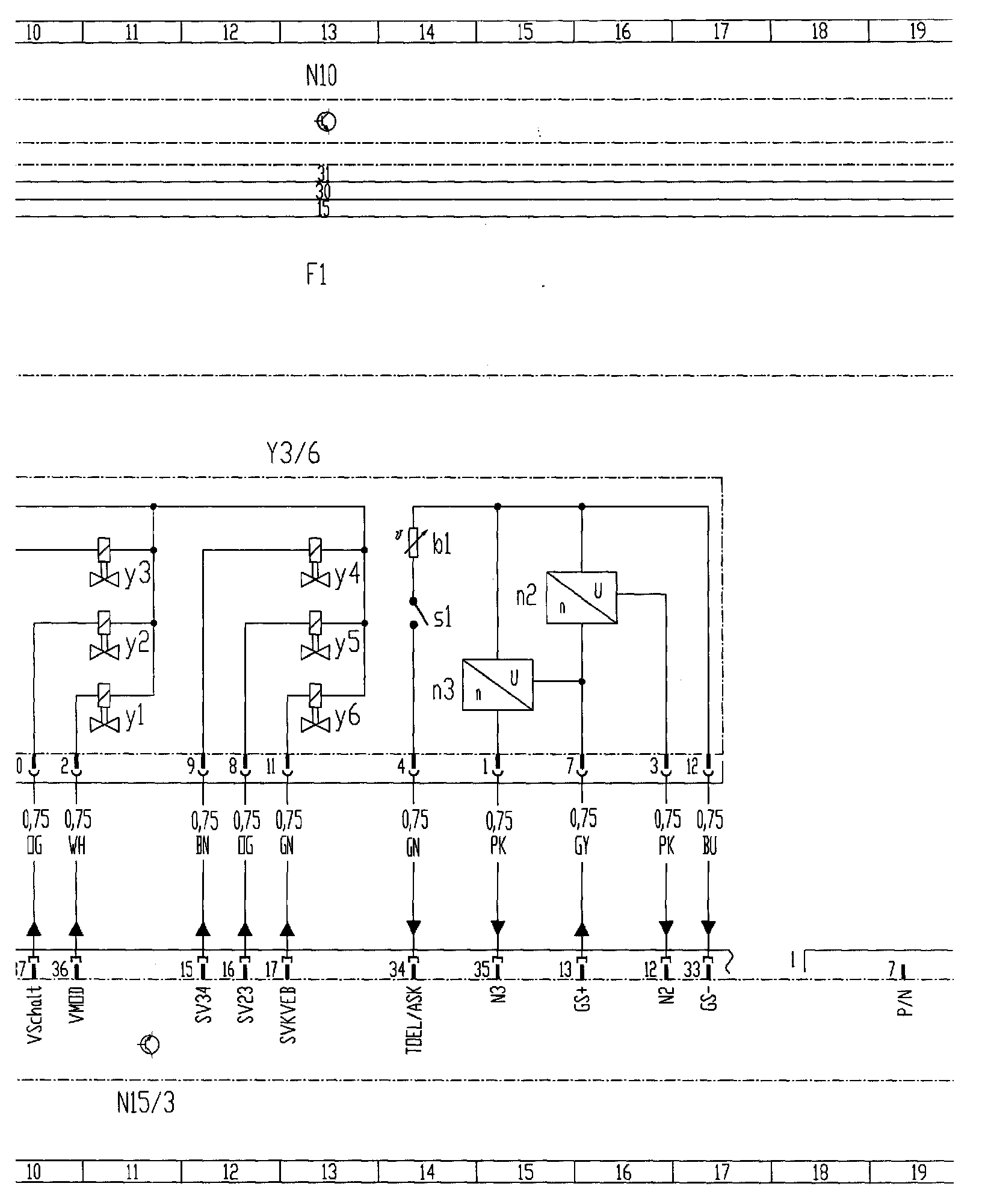

Automatic Transmission (AT):

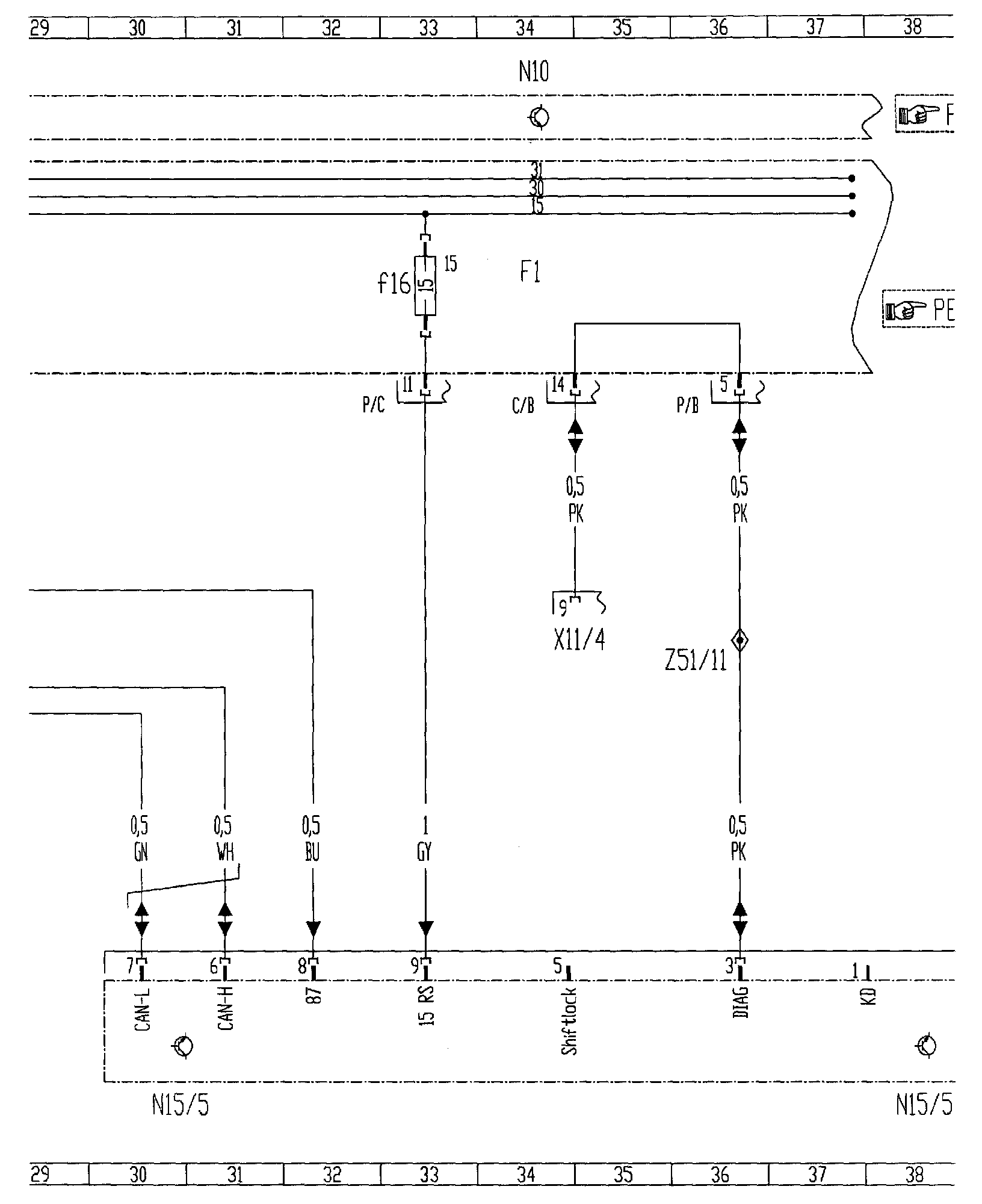

Automatic Transmission (AT):






Automatic Transmission (AT):






Automatic Transmission (AT):

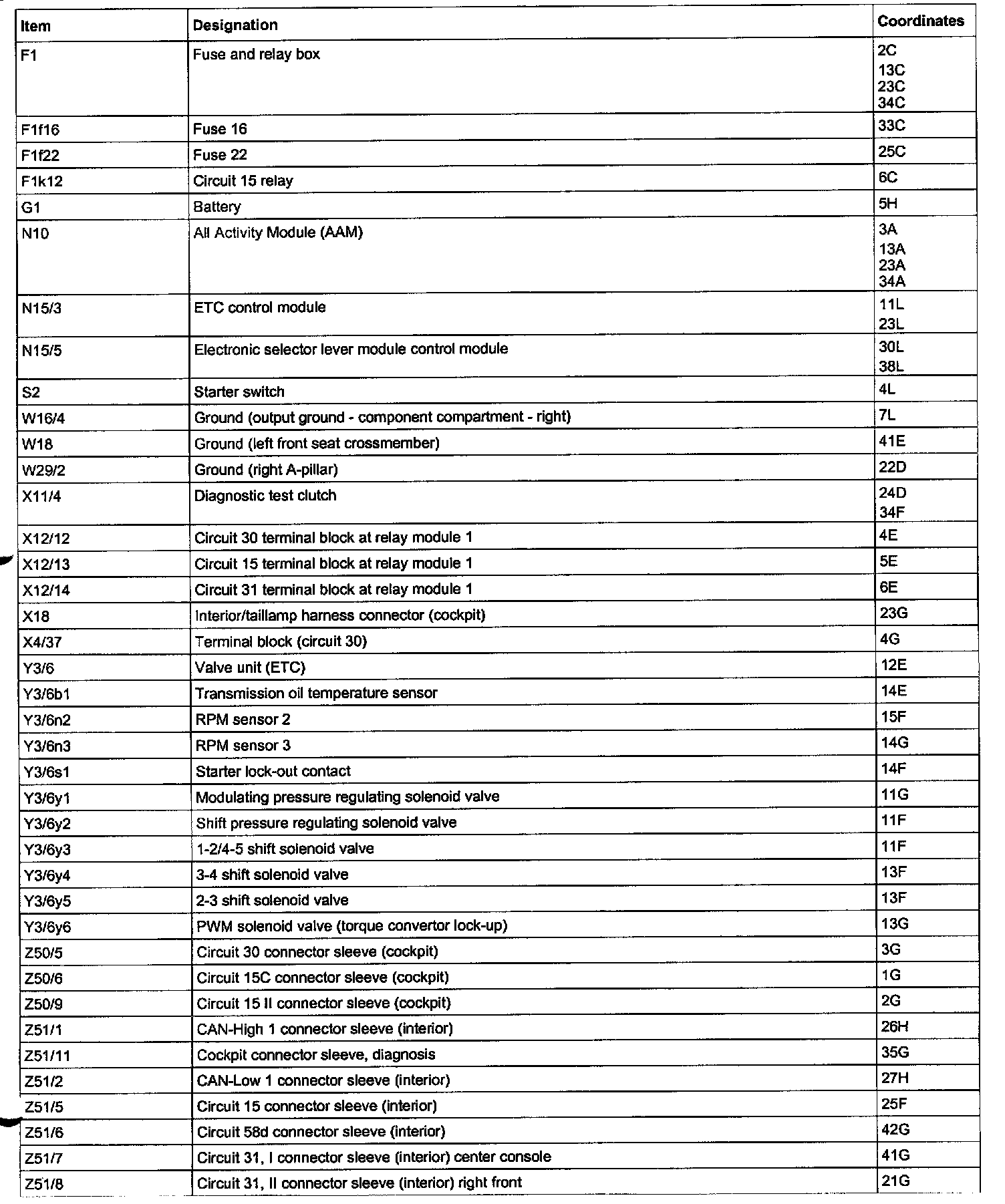

Legend For Automatic Transmission (AT):






Legend For Automatic Transmission (AT):
