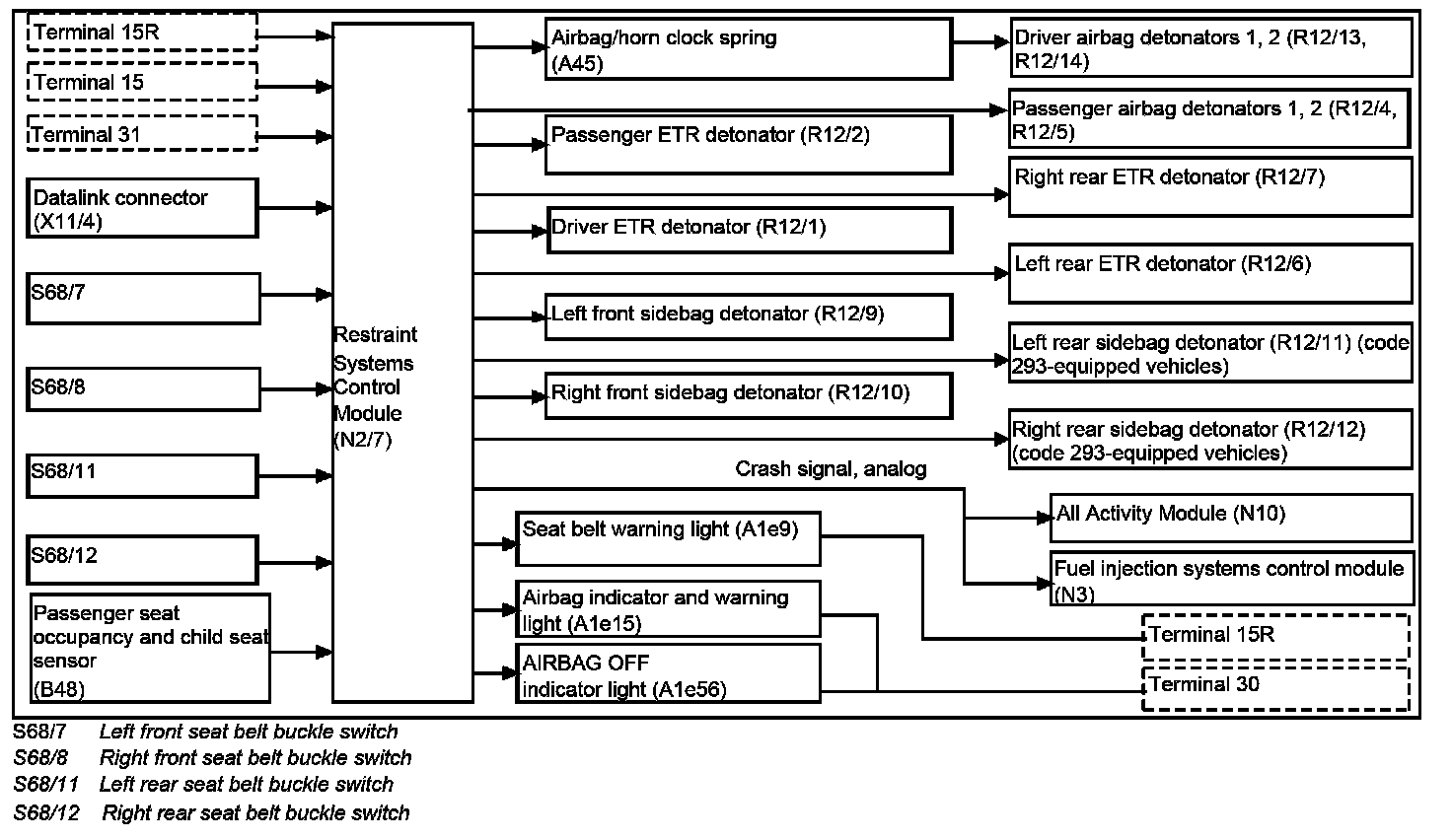

GF91.60-P-0002-03GHA Supplemental Restraint System (SRS) - Block Diagram
GF91.60-P-0002-03GHA Supplemental Restraint System (SRS) - Block Diagram
GF91.60-P-0002-03GHA Supplemental Restraint System (SRS) - Block Diagram
