Compressor HVAC

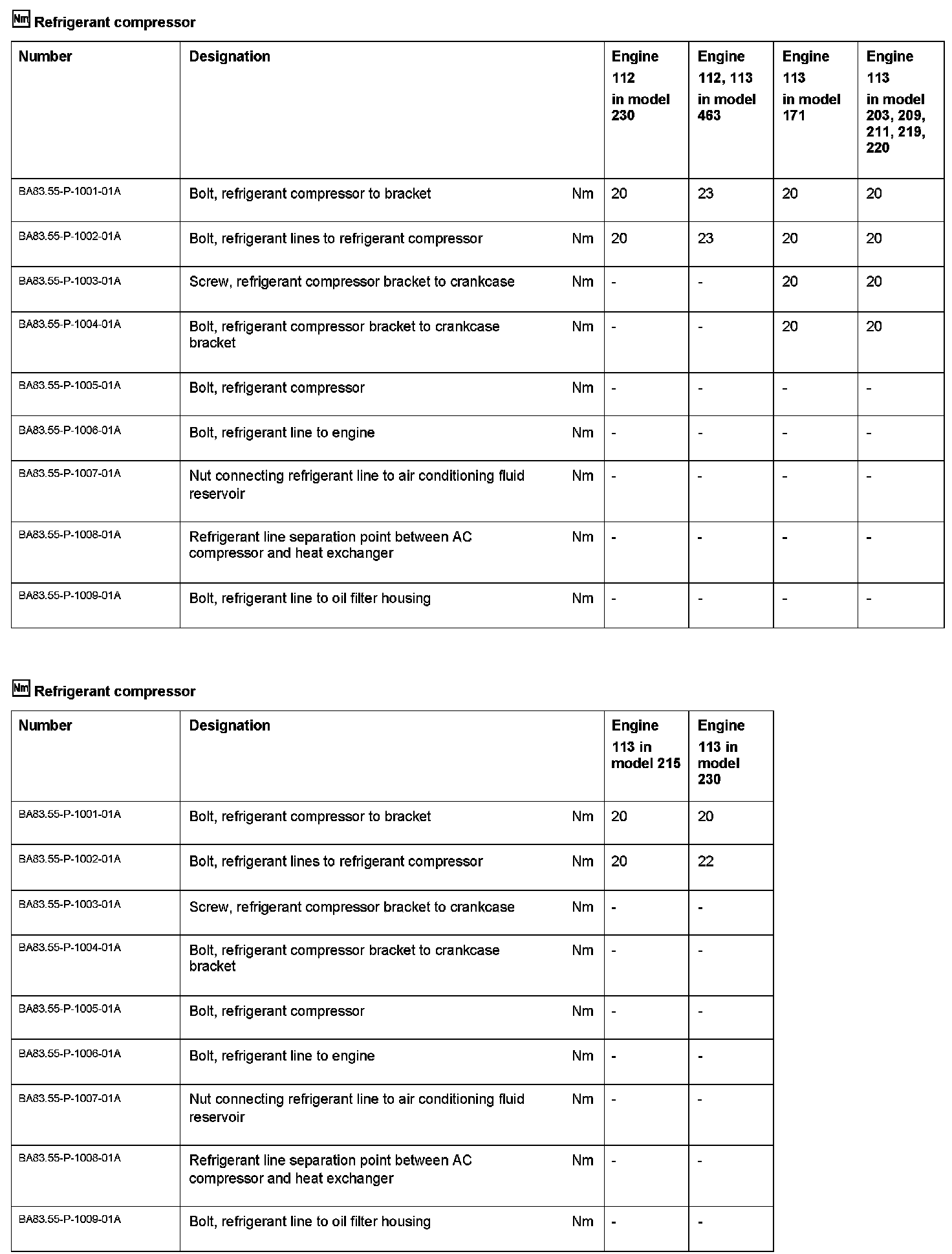

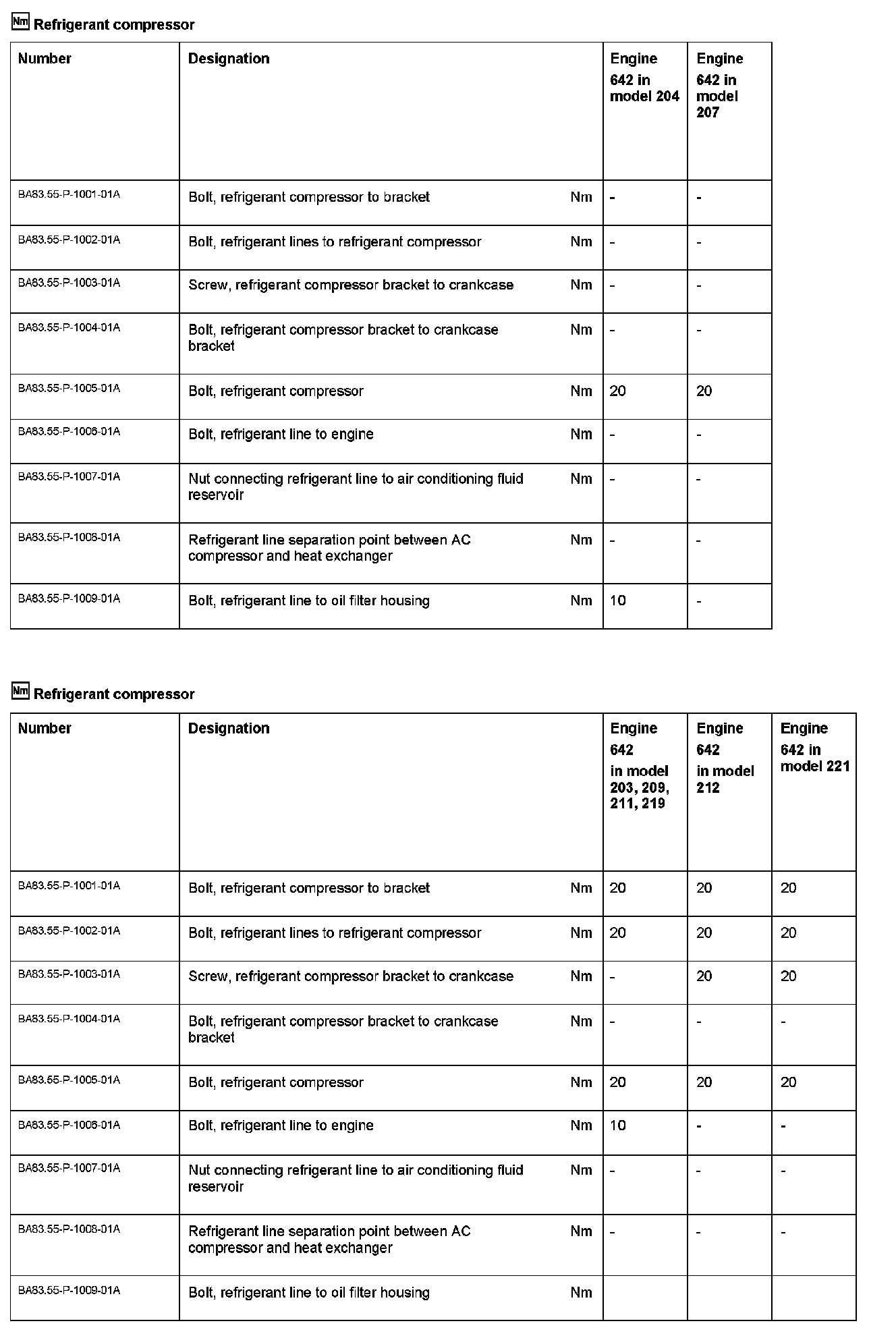

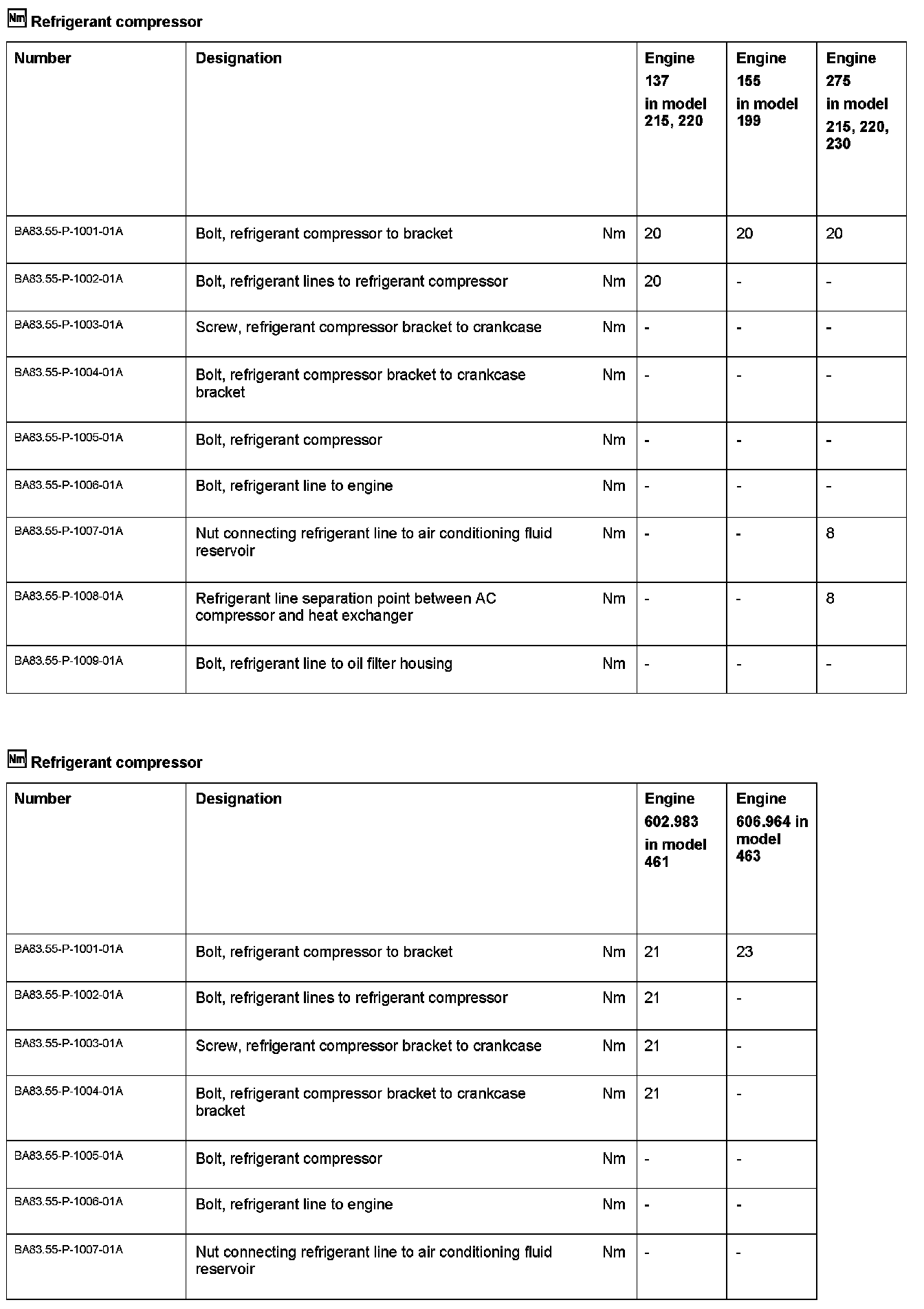

BA83.55-P-1000-01A Refrigerant Compressor

Modification notes


Modification Notes:






Refrigerant compressor


Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:
