Lighting - Exterior Bulb Replacement Information

Date: October 24, 2007

Order No.: T-B-82.10/599

Supersedes:

Group: 82

SUBJECT:
Model 163.154/157/172/174/175
Model 164.122/172/175/177/186
Model 251.122/156/165/175/177

Replacing Exterior Light Bulbs

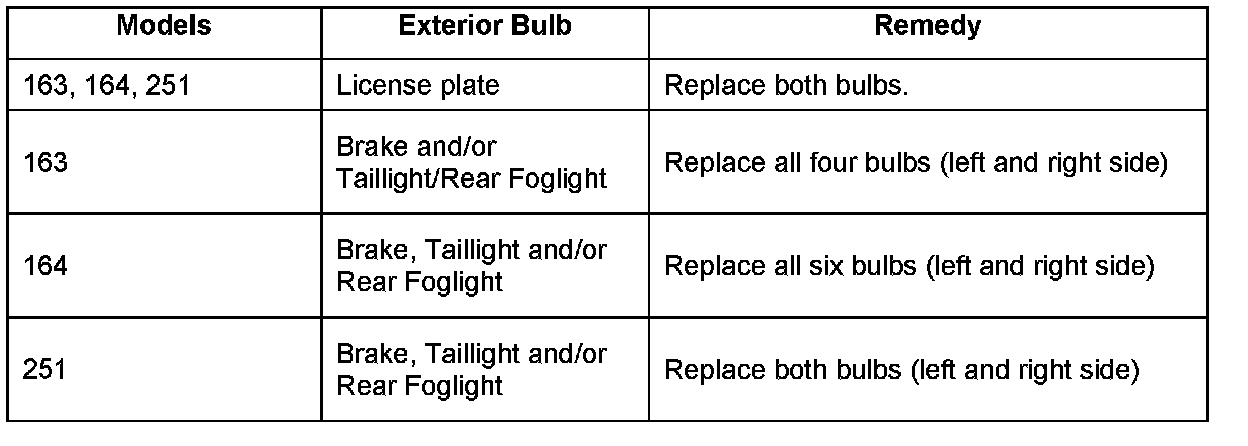

If you receive customer reports in the above model vehicles of exterior bulbs requiring replacement, only long life bulbs are to be used as replacement bulbs. Refer to the shown applicable condition / remedy.

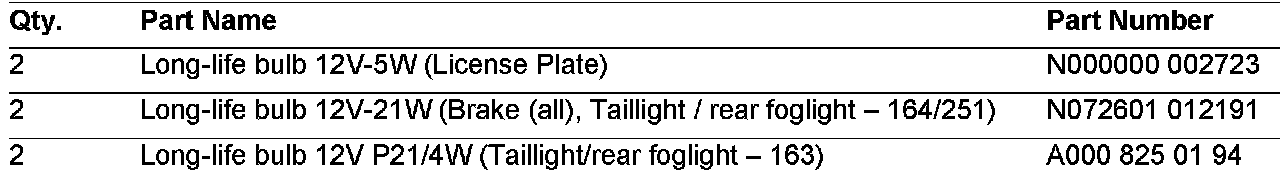

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 24, 2007. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
