Lighting - Exterior Light Bulb Replacement Information

Date: October 30, 2008

Order No.: S-B-82.10/598a

Supersedes: P-B-82.10/598 and T-B-82.10/599
dated October 24, 2007

Group: 82

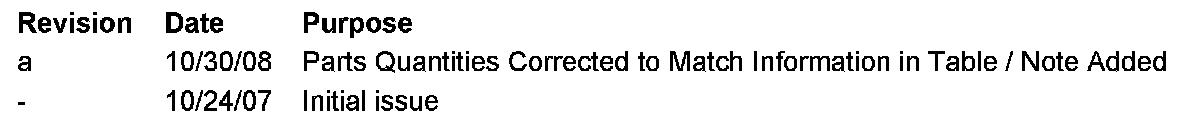

Revision History

SUBJECT:
All Model 163, 164, 171, 203, 209, 211, 215, 219, 220, 230 and 251 Vehicles Replacing Exterior Light Bulbs

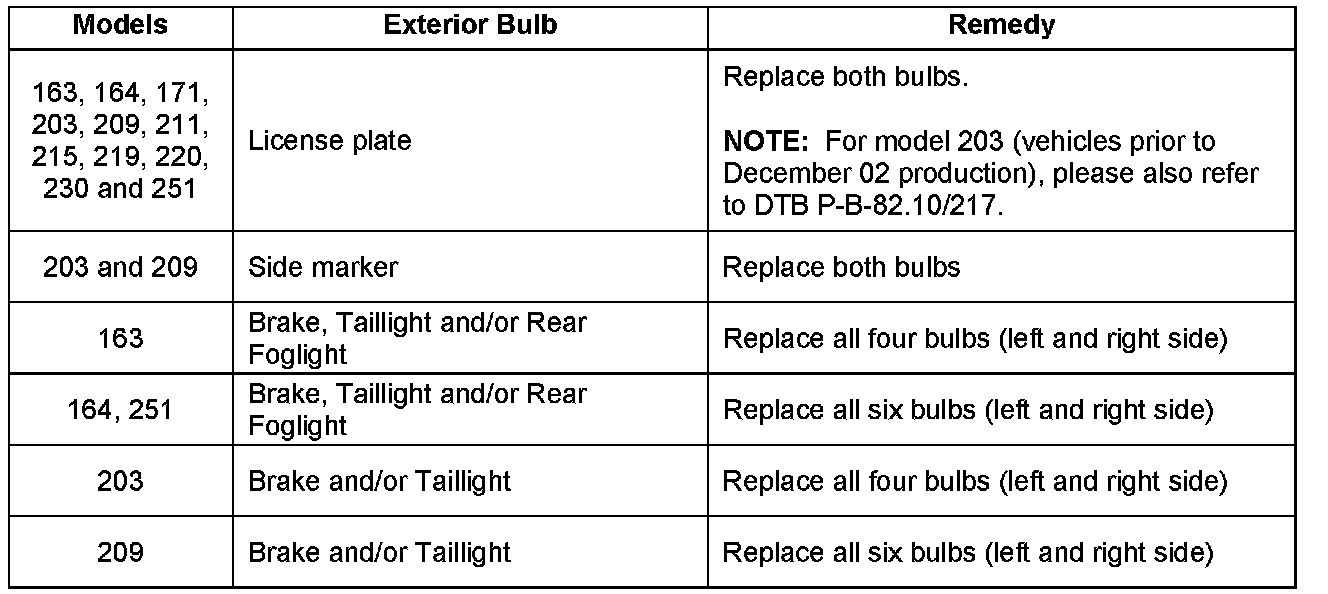

If you receive customer reports in the above model vehicles of exterior bulbs requiring replacement, only long life bulbs are to be used as replacement bulbs. Refer to the below applicable condition / remedy.

NOTE:
In cases where a new tail lamp housing (which does not have long-life bulbs) is being installed, replace the bulbs with long life bulbs.





Parts Information





NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 30, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

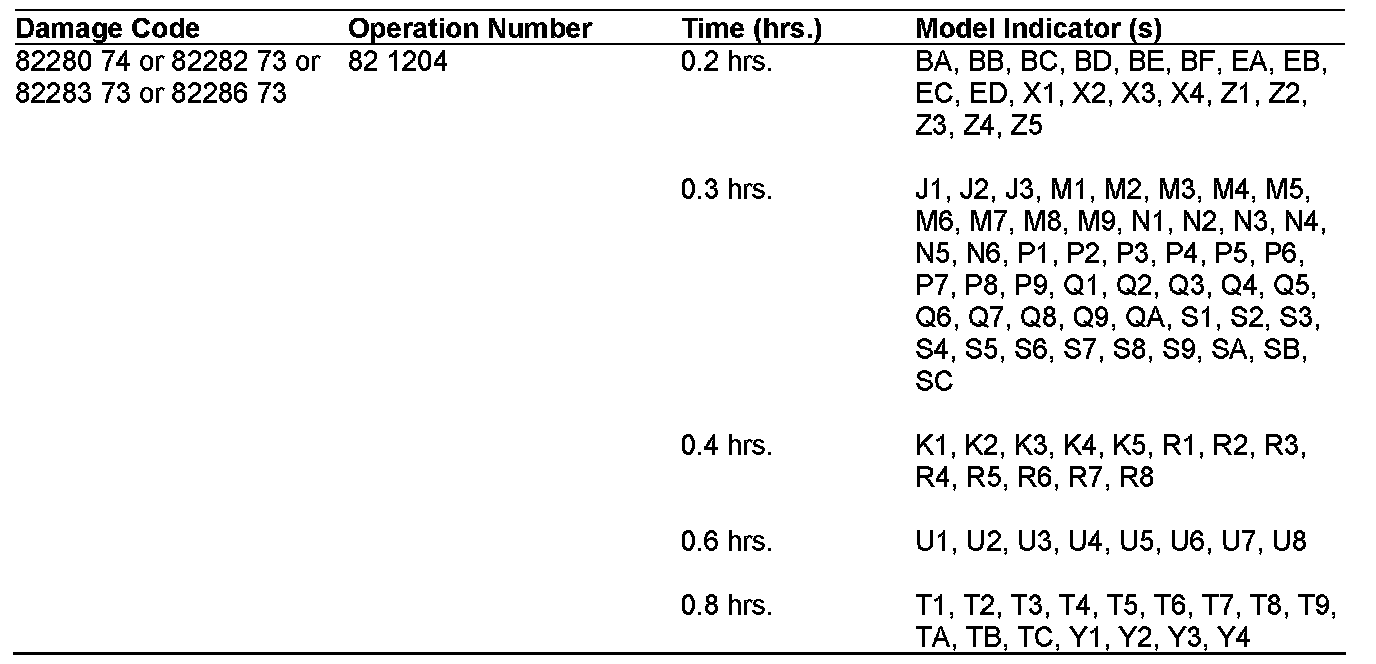

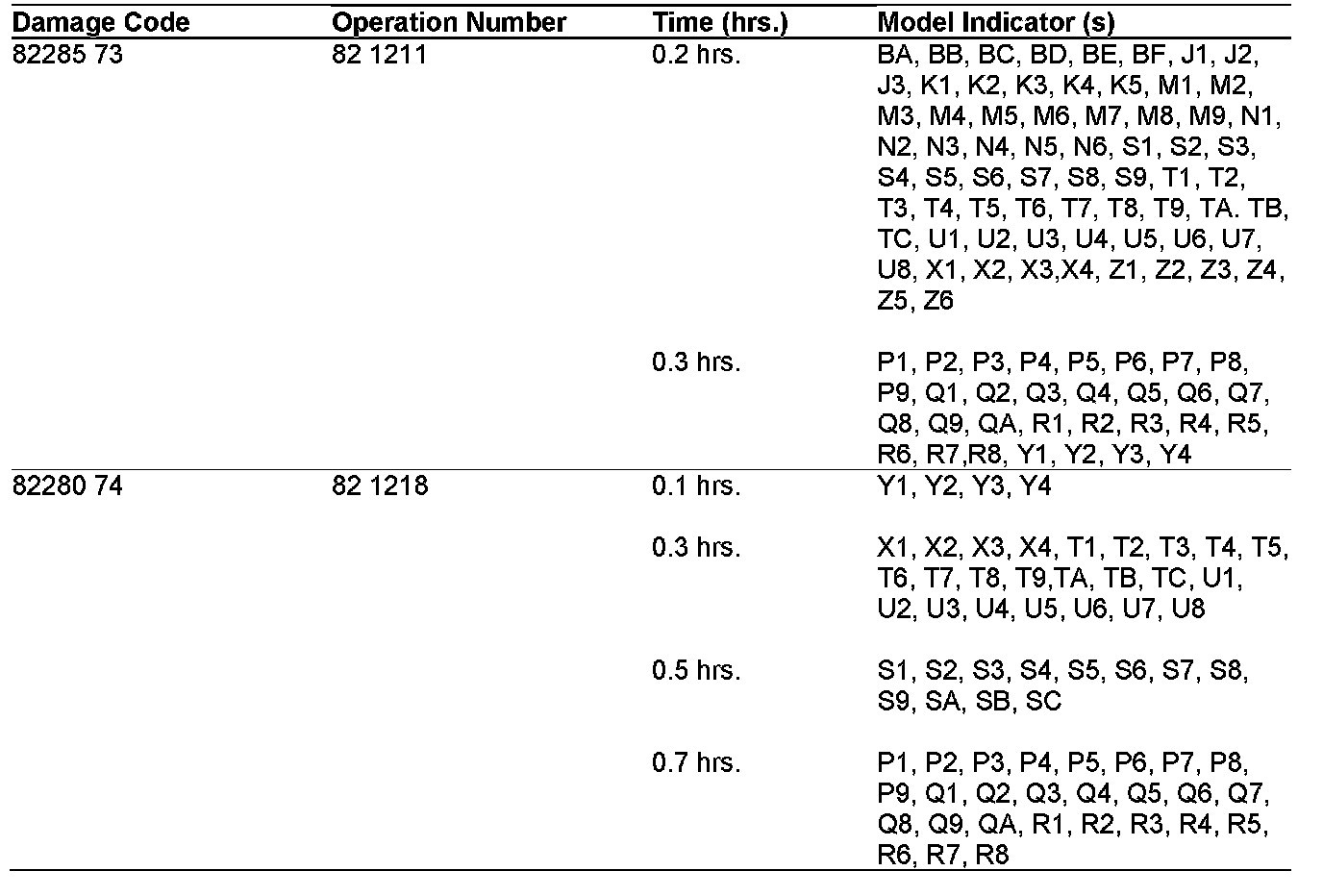

In Case of Warranty

Operation: Bulbs - both license plate lamps, replace (82-1211)
Defective bulbs in two side exterior lamps in bumper, replace (82-1218)
Light bulb(s) - in two rear ext. lamp units (tail lamps), replace (82-1204)
