GF82.30-P-4106-01GH Rear Window Wiper Motor, Function

GF82.30-P-4106-01GH Rear Window Wiper Motor, Function

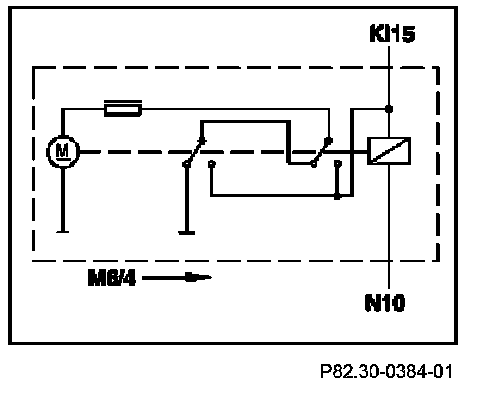

The rear window wiper motor (M6/4) is controlled by the all-activity module (AAM) (N10). Wiper operation:
The rear window wiper is in the non-actuated position and the cam switch is therefore actuated. The relay is actuated by the AAM. The rear window wiper motor (M6/4) starts running . The cam switch is released. The motor then continues to run even when the relay is no longer actuated. Upon reaching the park position the cam switch is actuated. If the relay is no longer actuated the motor is stopped by short circuiting through a coil.
