Headlamp Washer Spray Nozzle: Service and Repair

Remove/Install Telescoping Nozzle For Headlamp Cleaning System
- with CODE (600a) Headlamp cleaning system







Remove/Install
1 Remove the front bumper
- with visual enhancement package, code U4S
- As of VIN A289565, X754620.

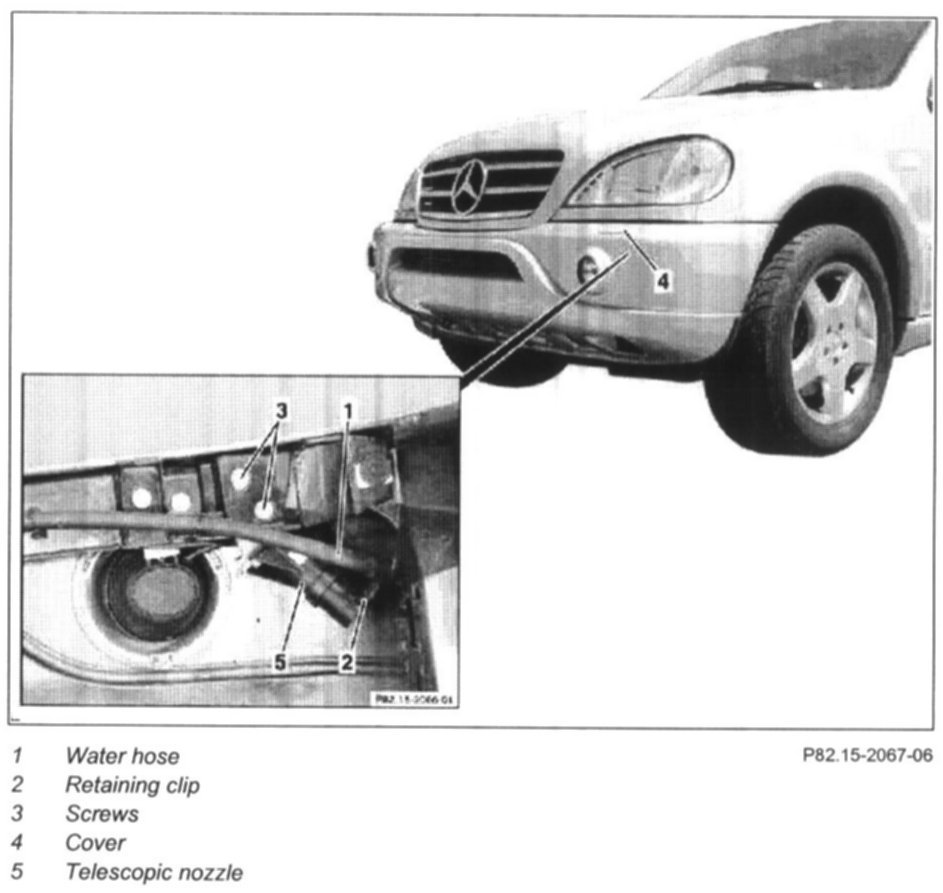

2 Remove retaining clip (2) and water hose (1) from telescopic nozzle
3 Unscrew screws (3) from mount of telescopic nozzle
4 Remove cover (4) from telescopic nozzle

NOTE:
- Risk of breakage!
- Press telescopic nozzle upward to obtain access to the retaining lugs for the cover from above

5 Remove telescopic nozzle (5) together with mount
6.1 Remove mount from telescoping nozzle

NOTE: Only when the telescopic nozzle is replaced.

7 Install in the reverse order
